Dây cáp USB3.2 GEN-2 Full Featured C-U32/FF
Mô tả ngắn

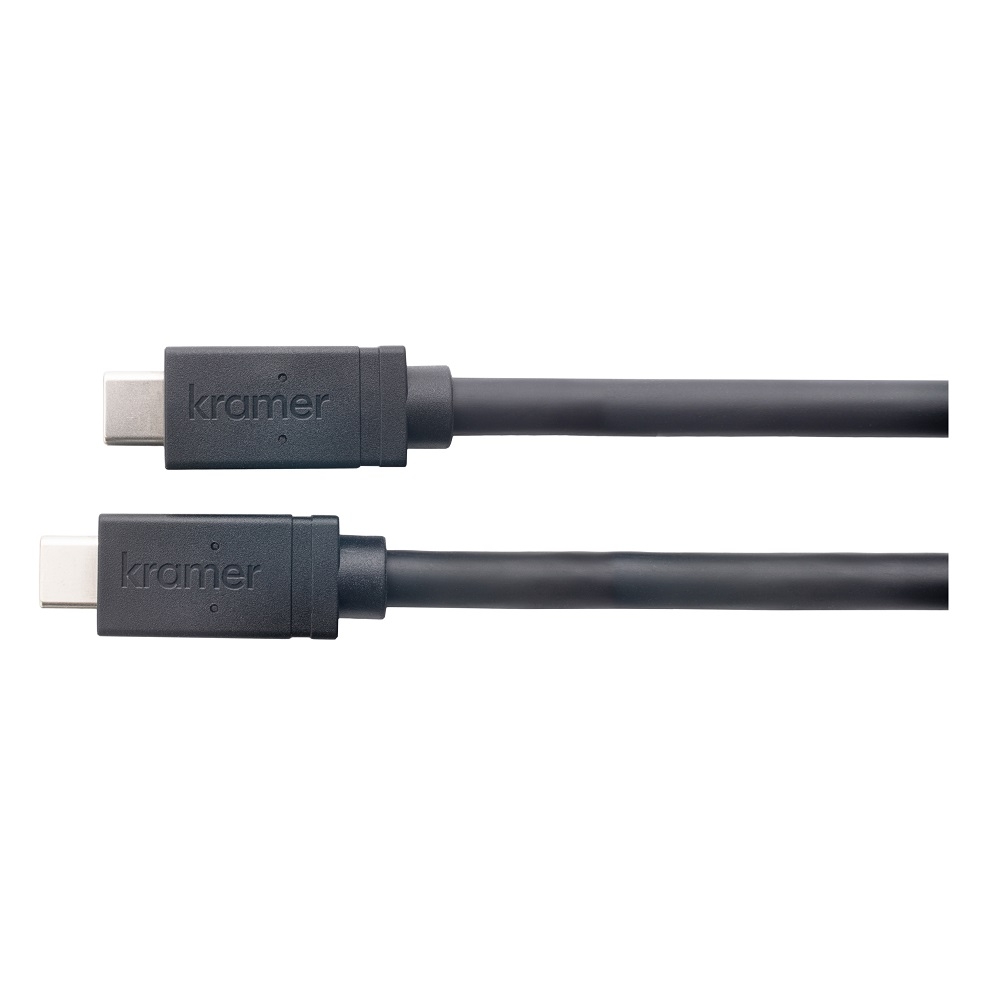

C-U32/FF USB 3.2 GEN–2 Full Featured USB–C (M) to USB–C (M) Cable
Length — 3–6ft (0.9–1.8m)
K–Lock Connectors
Hotline: 0918 642 886
C−U32/FF is a USB−C(M) to USB−C(M), USB 3.2 Gen−2 SuperSpeed+ cable offering a whole new level of reliable connectivity thanks to kramer's unique K−lock. Transfer Video 4K@60 data at incredible speeds (10G), charge other devices (100W), and even power mobile devices − all with just one Active cable.
C−U32/FF offers throughput of up to 10Gbps when used with a USB 3.2 host and device. The symmetrical, low profile USB Type−C connector, with the integrated K−Lock mechanism, can be plugged in any direction, thus eliminating the frustration of getting the port insertion just right.
- Quality Construction — High–quality shielded twisted pair (STP) construction helps prevent electromagnetic interference and ensures reliable data communication.
- Reversible USB Type–C Connector with integrated locking mechanism.
- Transfer Rates — Up to 10Gbps.
- 100W power (5A, 20V).
- PC, Mac & Mobile Compatible.
- Plug and Play — For monitors, Web cameras, printers, scanners, keyboards and other digital devices.
- USB Backward Compatibility — 1.0, 1.1, 2.0 and 3.0.
|
Model |
Description |
|---|---|
|
C–U32/FF–3 |
USB 3.2 GEN–2 Full Featured USB–C (M) to USB–C (M) Cable: Passive Cable Length — 3ft (0.9m) |
|
C–U32/FF–6 |
USB 3.2 GEN–2 Full Featured USB–C (M) to USB–C (M): Passive Cable Length — 6ft (1.8m) |
OVERALL
-
Type: USB 3.2 GEN–2
-
Video: 4K@60 4:4:4 (DP Alt Mode)
-
Max. Data Rate: 10Gbps
-
ETH Support: 10/100/1000 Mbps
PHYSICAL
-
Connector A: USB Type–C Male Nickel plated K–Lock connector with gold pins
-
Connector A Length x Width x Height: 23x12x8mm
-
Connector B: USB Type–C Male Nickel plated K–Lock connector with gold pins
-
Connector B Length x Width x Height: 23x12x8mm
JACKET
-
Material: PVC
-
Color: Black
-
Diameter: 4.8mm ±0.2mm
-
Bending Radius: 25.4mm
ELECTRICAL
-
Temperature Rating: 80°C
-
Voltage Rating: 30V
-
Conductor Resistance – 32AWG: 588Ω/km MAX. at 20°C (68°F)
-
Conductor Resistance – 30AWG: 376Ω/km MAX. at 20°C (68°F)
-
Conductor Resistance – 24AWG: 94.2Ω/km MAX. at 20°C (68°F)
STANDARDS COMPLIANCE
-
Safety: CE, FCC
-
Flammability Rating: VW–1
