Dây cáp USB 3.2 GEN-2 Optical CLS-AOCU32/AC
Mô tả ngắn

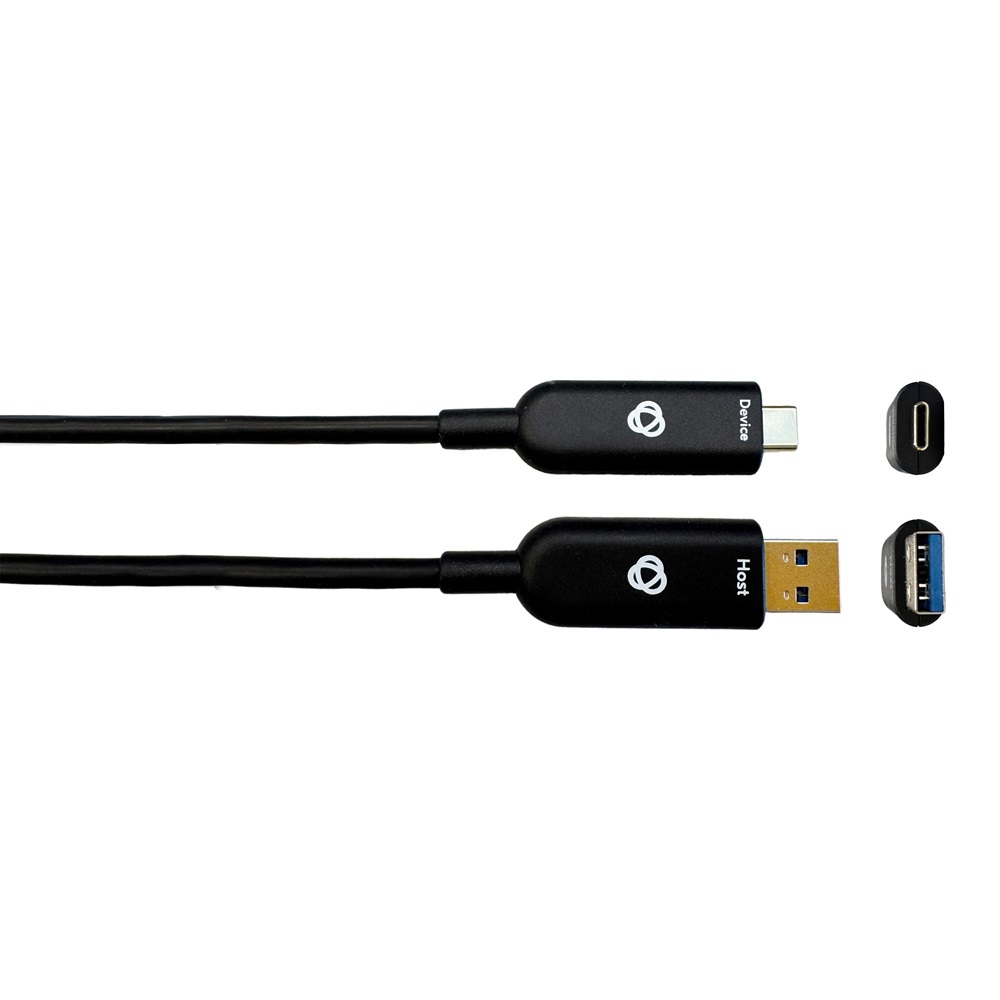

Kramer CLS-AOCU32/AC USB 3.2 GEN-2 Optical USB-A (M) to USB-C (M) Cable
No external power needed
Plug & play
Available lengths — 7.6 to 50m (25 to 164ft)
Hotline: 0918 642 886
CLS-AOCU32/AC is a USB-A(M) to USB-C(M), USB 3.2 Gen-2 SuperSpeed+ cable providing throughput of up to 10Gbps when used with a USB 3.2 host and device. CLS-AOCU32/AC is suitable for use with USB cameras‚ printers‚ webcams, speaker phones and more.
Note: This cable is for data transfer only, not for charging or ALT Mode Signal.
- True Plug–and–Play — No additional drivers needed.
- No External Power Needed — Pulls power from the USB source device.
- High Transfer Rates — Up to 10Gbps.
- USB Backward Compatibility — 1.1 (up to 50ft), 2.0, and 3.0.
- Hybrid Cable — Fiber and copper.
- Request that remote devices be self–powered
- Varied Selection of Lengths — Available in versions of 3 to 15m (10 to 50ft).
Configurations
|
Model |
Description |
Feet |
|
CLS–AOCU32/CA–25 |
USB 3.2 GEN–2 Optical USB–A to C Cable |
7.60m (25ft) |
|
CLS–AOCU32/CA–35 |
USB 3.2 GEN–2 Optical USB–A to C Cable |
10.70m (35ft) |
|
CLS–AOCU32/CA–50 |
USB 3.2 GEN–2 Optical USB–A to C Cable |
15.20m (50ft) |
|
CLS–AOCU32/CA–66 |
USB 3.2 GEN–2 Optical USB–A to C Cable |
20.00m (66ft) |
|
CLS–AOCU32/CA–98 |
USB 3.2 GEN–2 Optical USB–A to C Cable |
30.00m (98ft) |
|
CLS–AOCU32/CA–131 |
USB 3.2 GEN–2 Optical USB–A to C Cable |
40.00m (131ft) |
|
CLS–AOCU32/CA–164 |
USB 3.2 GEN–2 Optical USB–A to C Cable |
50.00m (164ft) |
General
-
TYPE: USB 3.2 gen 2
-
MAX. DATA RATE: 10 Gbps
CONSTRUCTION
-
Cable Type: 2 channel OM2 850 nm VCSEL array
-
Material: Bare Copper
PHYSICAL
-
Connector A: USB 3.2 type–A male
-
Connector B: USB 3.2 type–C male
-
Long term crush resistance: 100N/100mm
-
Short term crush resistance: 500N/100mm
-
Short term tensile strength: 300N
-
Long term tensile strength: 150N
-
Cable Min Bending Radius: 20mm
JACKET
-
Color: Black
-
Diameter : 4.8mm
-
Consumption: ≤0.5W
Environmental Conditions
-
Operating Temperature: –20 to 50°C
-
Storage Temperature: –40 to 70°C
Regulatory Compliance (Standards Compliance)
-
Safety: CE/FCC
-
Flammability: CPR Eca rated, LSHF
-
Environmental: REACH, RoHS
