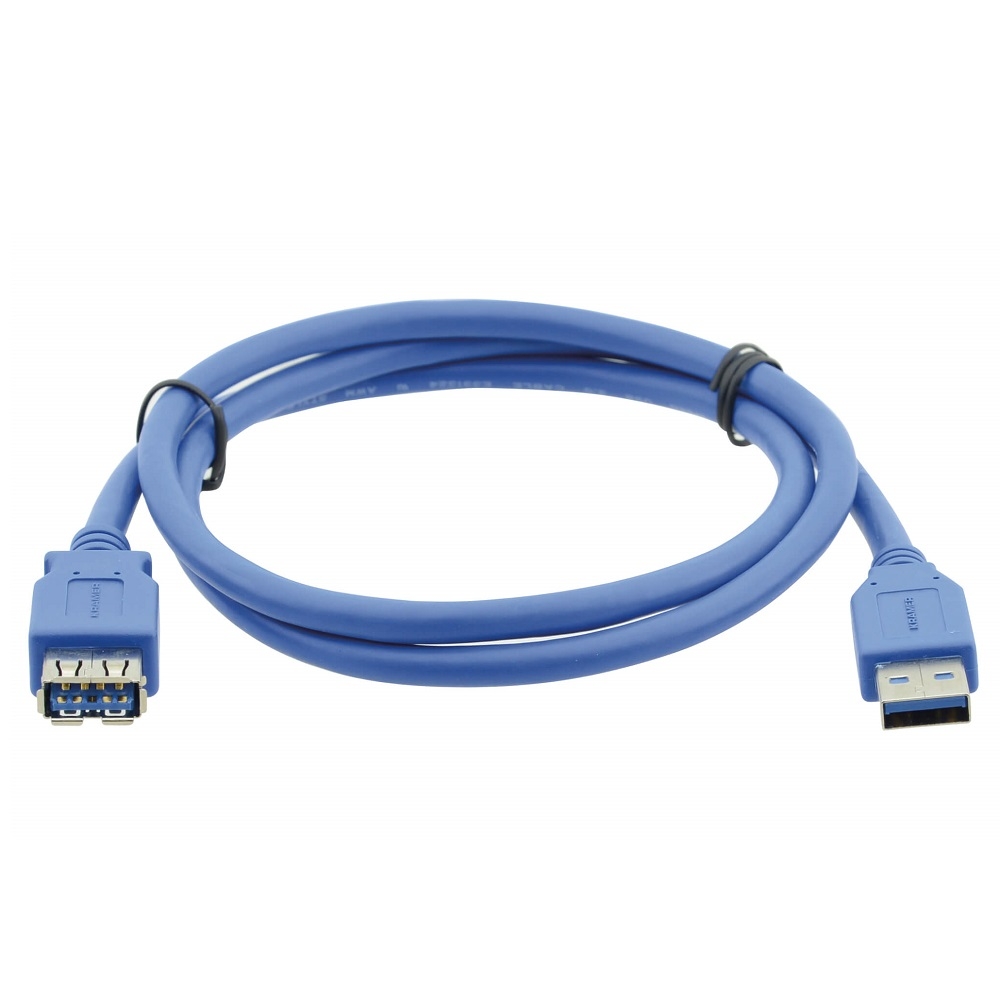

Kramer's C−USB3/AAE is a SuperSpeed USB 3.0 Type−A male to Type−A female extension cable used to connect computers and peripherals such as, printers, scanners, cameras, keyboards, mice and other digital devices for superior signal transfer of up to 4.8Gbps.
-
USB 3.0 A Male to A Female.
-
Transfer Rates up to 4.8Gbps — 10x the capability of USB 2.0.
-
Foil & Overall Braid Provide Maximum Protection Against EMI/RFI.
-
Molded Strain Relief.
-
Backward Compatibility — USB Specifications 1.0, 1.1 and 2.0.
-
RoHS Compliant.
|
MODEL |
DESCRIPTION |
LENGTH |
|
C–USB3/AAE–3 |
USB 3.0 A (M) to A (F) Extension Cable |
3' 0.90(M) |
|
C–USB3/AAE–6 |
USB 3.0 A (M) to A (F) Extension Cable |
6' 1.80(M) |
OVERALL
-
TYPE: USB 3.0 SuperSpeed
-
MAX. DATA RATE: 4.8 Gbps
PHYSICAL
-
CONNECTOR A: USB 3.0 type–A male
-
CONNECTOR B: USB 3.0 type–A female
-
CONNECTOR PLATING: Nickel
-
CONDUCTORS: 28/24AWG
-
CABLE SHIELD TYPE: Aluminum–Mylar Foil with Braid
-
OVERALL SHEATH DIAMETER: 5.5mm
-
OUTER SHEATH COLOR: Blue
