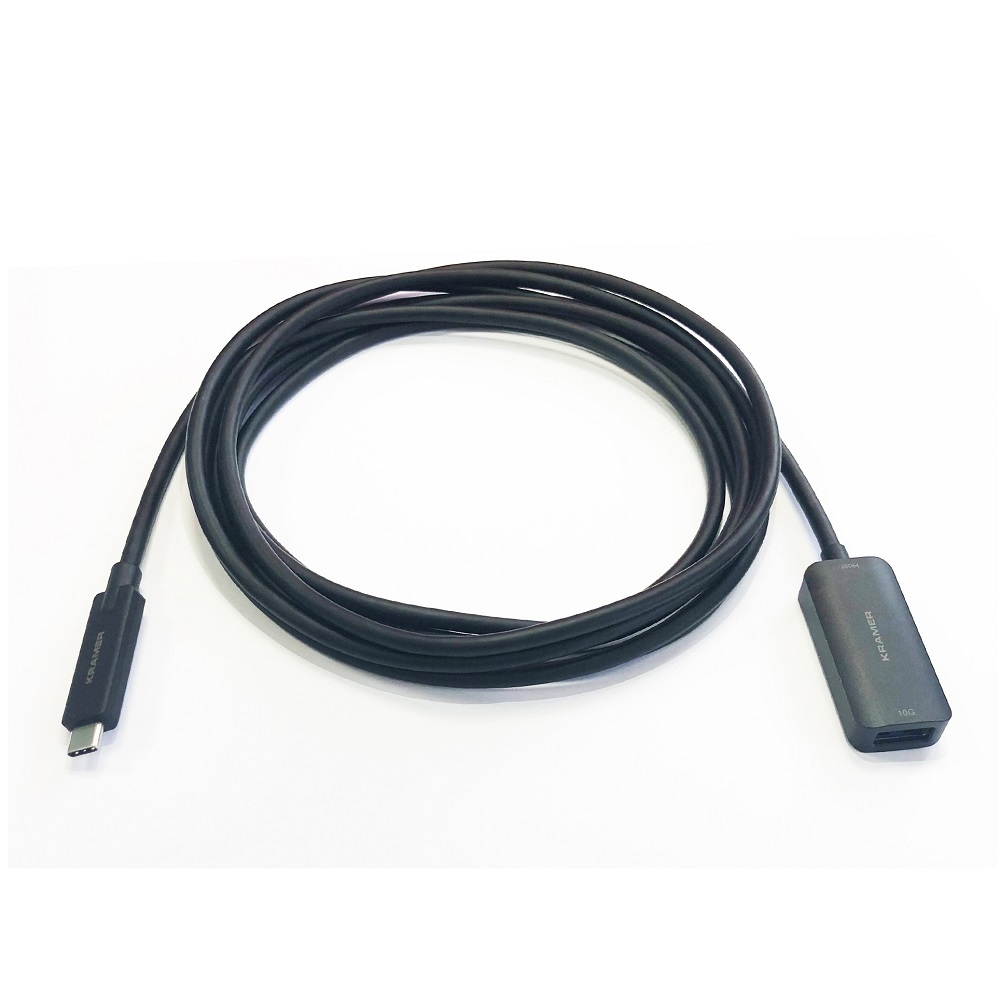

CA-USB31/CAE USB 3.1 Active Extender Cable
Enables USB cable up to 4.7m (15ft)
No external power needed
Plug and play
Available lengths — 3m & 4.7m (10ft to 15ft)
CA−USB31/CAE is an active extender cable designed to extend USB 3.1 GEN 2 (USB 3.2) signals. Typically, USB 3.1 GEN 2 cables have a maximum length of about 1 meter (3 feet), CA−USB31/CAE enables cable lengths of up to 4.7m (15ft).
This bus−powered cable contains active electronics that enables it to extend without any signal loss or potential performance problems. With no need for an external power source, CA−USB31/CAE is suitable for use with USB cameras‚ printers‚ webcams, Soundbar, keyboards, mice, and more.
Note: This cable is for data transfer only, not for charging.
- True Plug–and–Play — No additional drivers needed
- USB 3.1 Super Speed (10Gbps) Standard — Compliant with USB 3.0 and USB 2.0
- No External Power — Pulls power from the USB source device
- Buffers Incoming & Outgoing Signal
- CE & FCC certified
MODEL |
DESCRIPTION |
FEET |
CA-USB31/CAE-10 |
USB 3.1 C(M) to A(F) GEN–2,10G Data Active Cable–10f |
3.00m (10ft) |
CA-USB31/CAE-15 |
USB 3.1 C(M) to A(F) GEN–2,10G Data Active Cable–15f |
4.60m (15ft) |
GENERAL
Type: USB 3.1 GEN 2 SuperSpeed Plus
Max Data Rate: 10 Gbps
PHYSICAL
Connector A: USB 3.1 GEN 2 type–C mal
Connector B: USB 3.1 GEN 2 type–A female
MECHANICAL
Cable Bending Radius: 50mm(min)
CONDUCTORS
Cable Composition: 30AWG{7/0.103TC)+EAM]*2P+[30AWG{7/0.10TC)+A]*1P+24AWG(41/0.08TC)*1C+2EB(16/11/0.08TC)
JACKET
Material: TPE
O.D.: 4.8mm
Color: Black
POWER
Power Consumption: ≤1W
Power Consumption: • Power delivery:900mA (4.5W)
Power delivery: 900mA (4.5W)
