Dây cáp USB2.0 Type-C C-USB/C
Mô tả ngắn
Lengths — 3ft to 10ft (1m to 3m)
USB (M) Connector A — Type–C
USB (M) Connector B — available in the following configurations: Type–C, Type–B, Type–A, Micro–B
Hotline: 0918 642 886
Kramer's C-USB/C cables connect USB-C enabled devices with standard USB-A, B and Micro B devices (laptops, hard drives, legacy printers, hubs, smartphones, tablets and cameras). C-USB/C cables offer a whole new level of connectivity to devices using the new USB Type-C connector.
The symmetrical, low-profile USB Type−C connector can be plugged in any direction, eliminating the frustration of getting the port insertion just right.
- Quality Construction — High–quality shielded twisted pair (STP) construction, helps to prevent electromagnetic interference and ensures reliable data communication.
- Reversible USB Type–C Connector.
- Max. Data Rate — 480Mbps.
- Current Rating — 3A and 5A.
- PC, Mac & Mobile Compatible.
- Plug and Play — For printers, scanners, keyboards and other digital devices .
- Backward Compatibility — USB specifications 1.0 and 1.1.
- Molded Strain Relief — On the USB A, B & Micro B ends.
- RoHS Compliant.
|
MODEL |
DESCRIPTION |
FEET |
|

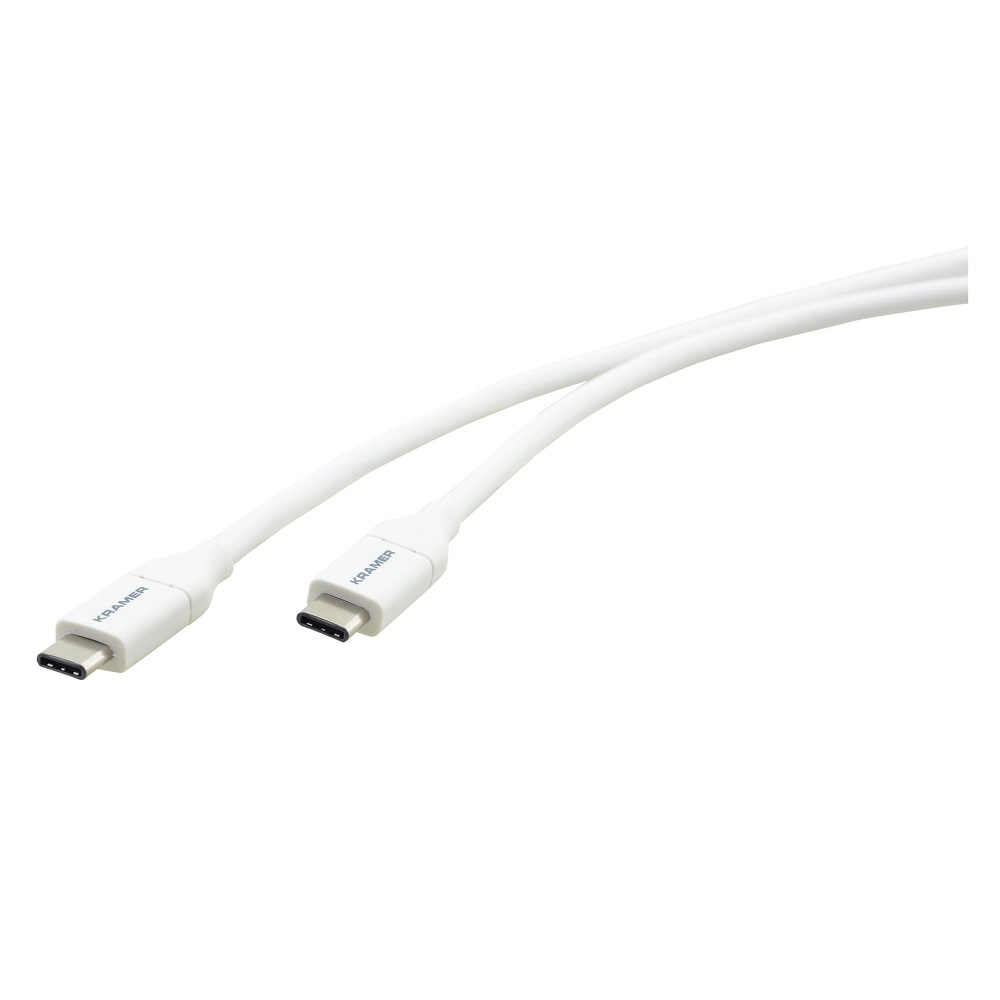

C–USB/CC–6 |
USB 2.0 USB–C(M) to USB–C(M) |
1.80m (6ft) |
|
C–USB/CC–10 |
USB 2.0 USB–C(M) to USB–C(M) |
3.00m (10ft) |
|

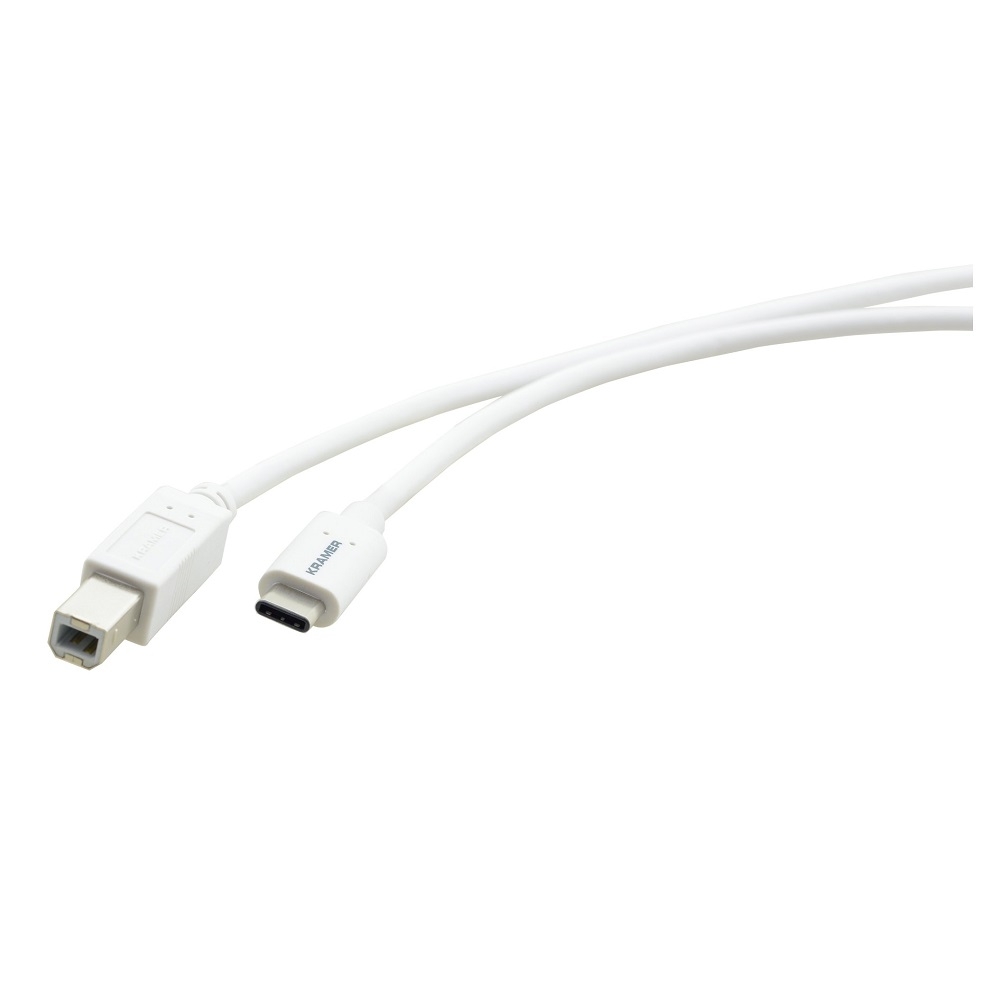

C–USB/CB–6 |
USB 2.0 USB–C(M) to USB–B(M) |
1.80m (6ft) |
|
C–USB/CB–10 |
USB 2.0 USB–C(M) to USB–B(M) |
3.00m (10ft) |
|

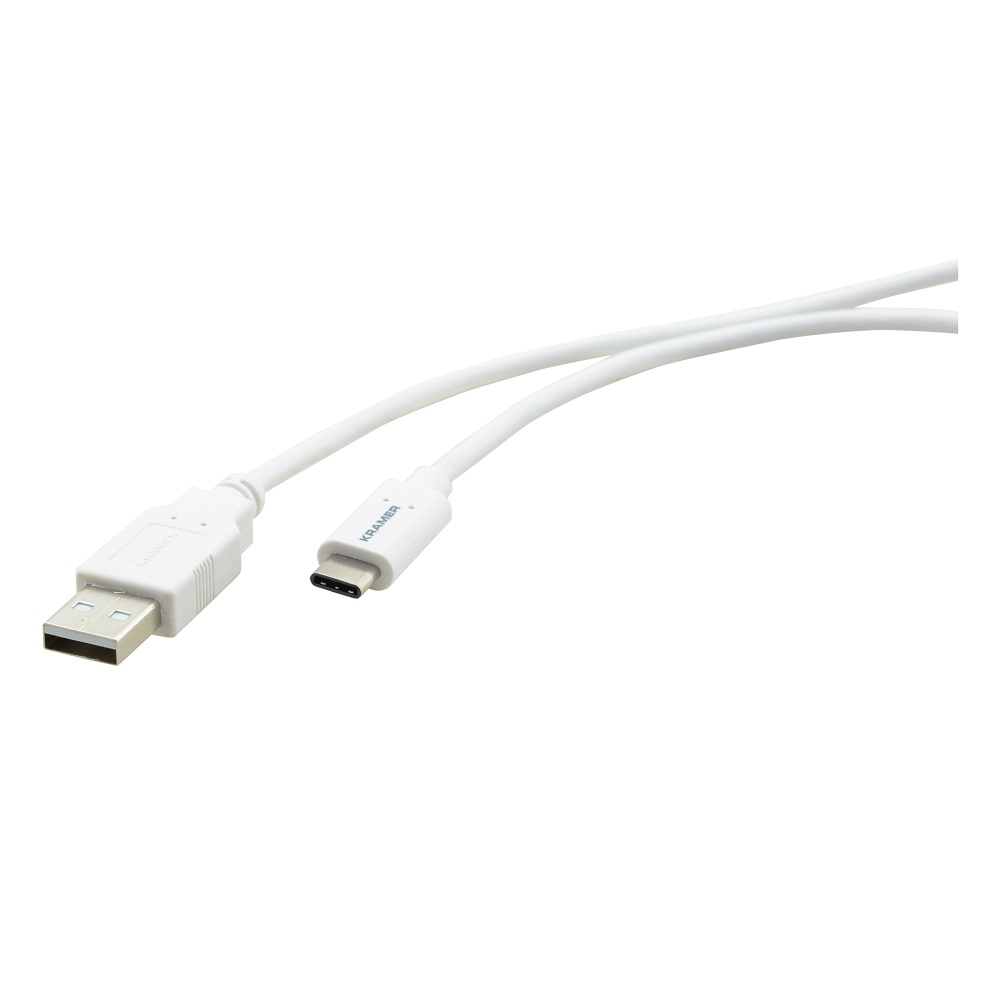

C–USB/CA–6 |
USB 2.0 USB–C(M) to USB–A(M) |
1.80m (6ft) |
|
C–USB/CA–10 |
USB 2.0 USB–C(M) to USB–A(M) |
3.00m (10ft) |
|

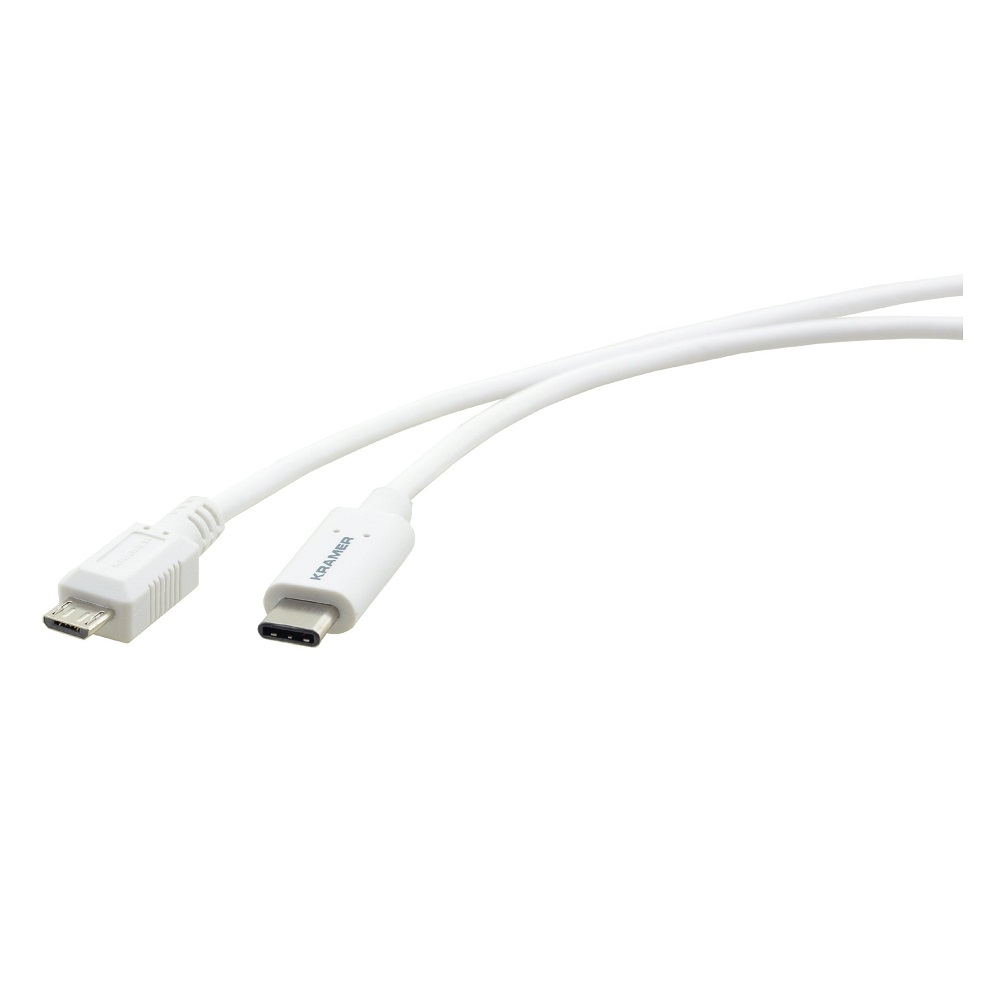

C–USB/CMicroB–3 |
USB 2.0 USB–C(M) to USB Micro–B(M) |
0.90m (3ft) |
|
C–USB/CMicroB–6 |
USB 2.0 USB–C(M) to USB Micro–B(M) |
1.80m (6ft) |
ELECTRICAL
-
TYPE: USB 2.0
-
MAX. DATA RATE: 480Mbps
-
POWER RATING: 100W max
PHYSICAL
-
CONNECTOR A: USB Type–C male
-
CONNECTOR B: C–USB/CC — USB Type–C male
-
CONNECTOR B: C–USB/CB — USB Type–B male
-
CONNECTOR B: C–USB/CA — USB Type–A male
-
CONNECTOR B: C–USB/CMicroB — USB Type–Micro B male
-
CONNECTOR PLATING: Nickel
-
CONDUCTORS: 28AWG
-
CABLE SHIELD TYPE: Aluminum–Mylar foil with braid
-
OVERALL SHEATH DIAMETER: 4.0mm
-
OUTER SHEATH COLOR: White
STANDARDS COMPLIANCE
-
REGULATORY: RoHS 2011/65/EU
