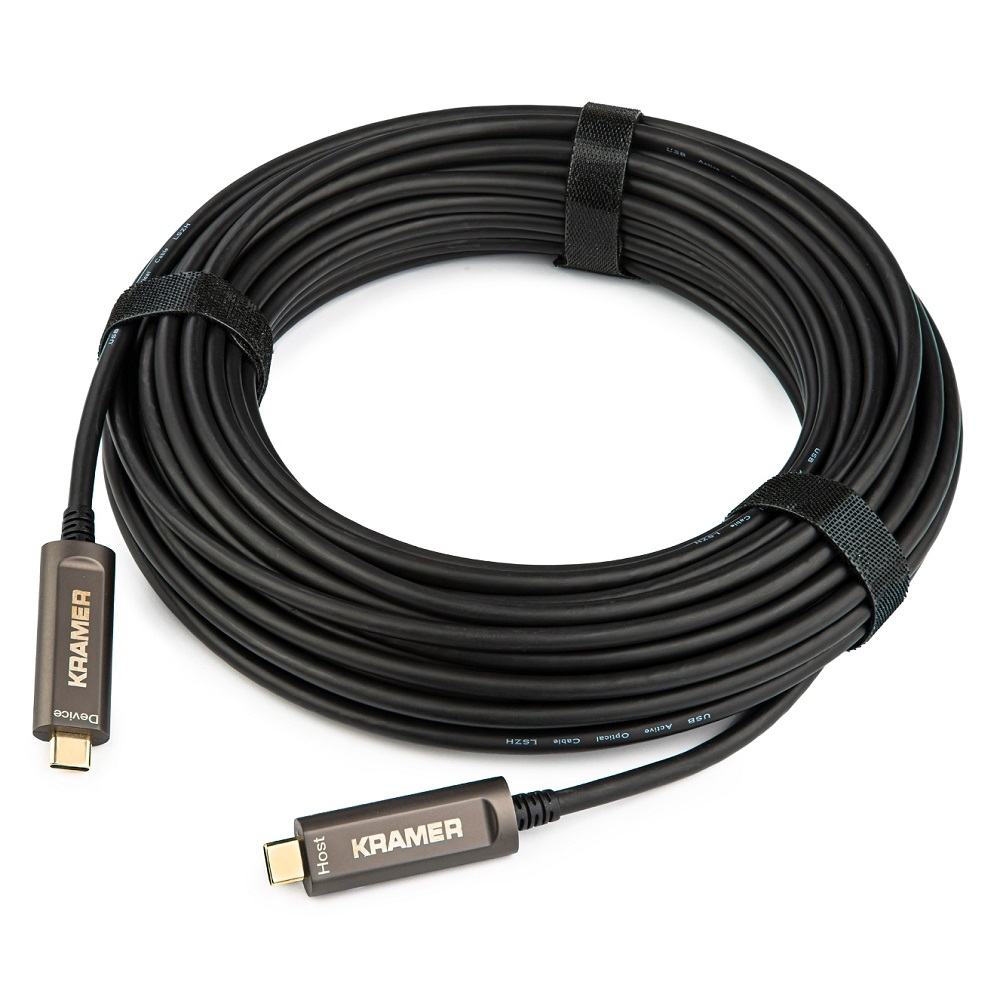

Dây cáp USB 3.1 GEN-2 Optical CLS-AOCU31/CC
Mô tả ngắn
Kramer USB 3.1 GEN–2 Optical USB–C (M) to USB–C (M) Cable
No external power needed
Plug & play
Available lengths — 3 to 15.2m (10 to 50ft)
Hotline: 0918 642 886
Kramer CLS-AOCU31/CC is a USB−C(M) to USB−C(M), USB 3.1 Gen−2 SuperSpeed+ cable providing throughput of up to 10Gbps when used with a USB 3.1 host and device. CLS−AOCU31/CC is suitable for use with USB cameras‚ printers‚ webcams, keyboards, mice, and more.
Note: This cable is for data transfer only, not for charging or ALT Mode Signal.
- True Plug–and–Play — No additional drivers needed.
- No External Power Needed — Pulls power from the USB source device.
- High Transfer Rates — Up to 10Gbps.
- USB Backward Compatibility — 1.1, 2.0, and 3.0.
- Hybrid Cable — Fiber and copper.
- Current Rating — 3A.
- Varied Selection of Lengths — Available in versions of 3 to 15m (10 to 50ft).
|
MODEL |
DESCRIPTION |
FEET |
|
CLS–AOCU31/CC–10 |
USB 3.1 GEN–2 Optical USB–C Cable |
3.00m (10ft) |
|
CLS–AOCU31/CC–15 |
USB 3.1 GEN–2 Optical USB–C Cable |
4.60m (15ft) |
|
CLS–AOCU31/CC–25 |
USB 3.1 GEN–2 Optical USB–C Cable |
7.60m (25ft) |
|
CLS–AOCU31/CC–35 |
USB 3.1 GEN–2 Optical USB–C Cable |
10.70m (35ft) |
|
CLS–AOCU31/CC–50 |
USB 3.1 GEN–2 Optical USB–C Cable |
15.20m (50ft) |
GENERAL
-
TYPE: USB 3.1 gen 2
-
MAX. DATA RATE: 10 Gbps
CONSTRUCTION
-
Cable Type: Hybrid with OM2 fiber and 6 copper wires
-
O/E Converter: 4 channel OM2 850 nm VCSEL array
-
Material: Bare Copper
PHYSICAL
-
Connector A: USB 3.1 type–C male
-
Connector B: USB 3.1 type–C male
-
Long term crush resistance: 100N/100mm
-
Short term crush resistance: 500N/100mm
-
Short term tensile strength: 300N
-
Long term tensile strength: 150N
-
Cable Min Bending Radius: 20mm
JACKET
-
Color: Black
-
Diameter : 4.5mm
-
Consumption: 400mW (max) (for both sides)
ENVIRONMENTAL CONDITIONS
-
Operating Temperature: –20 to 50°C
-
Storage Temperature: –40 to 70°C
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
-
Safety: CE/FCC
-
Flammability: CPR Eca rated, LSHF
-
Environmental: REACH, RoHS 2011/65/ EU
