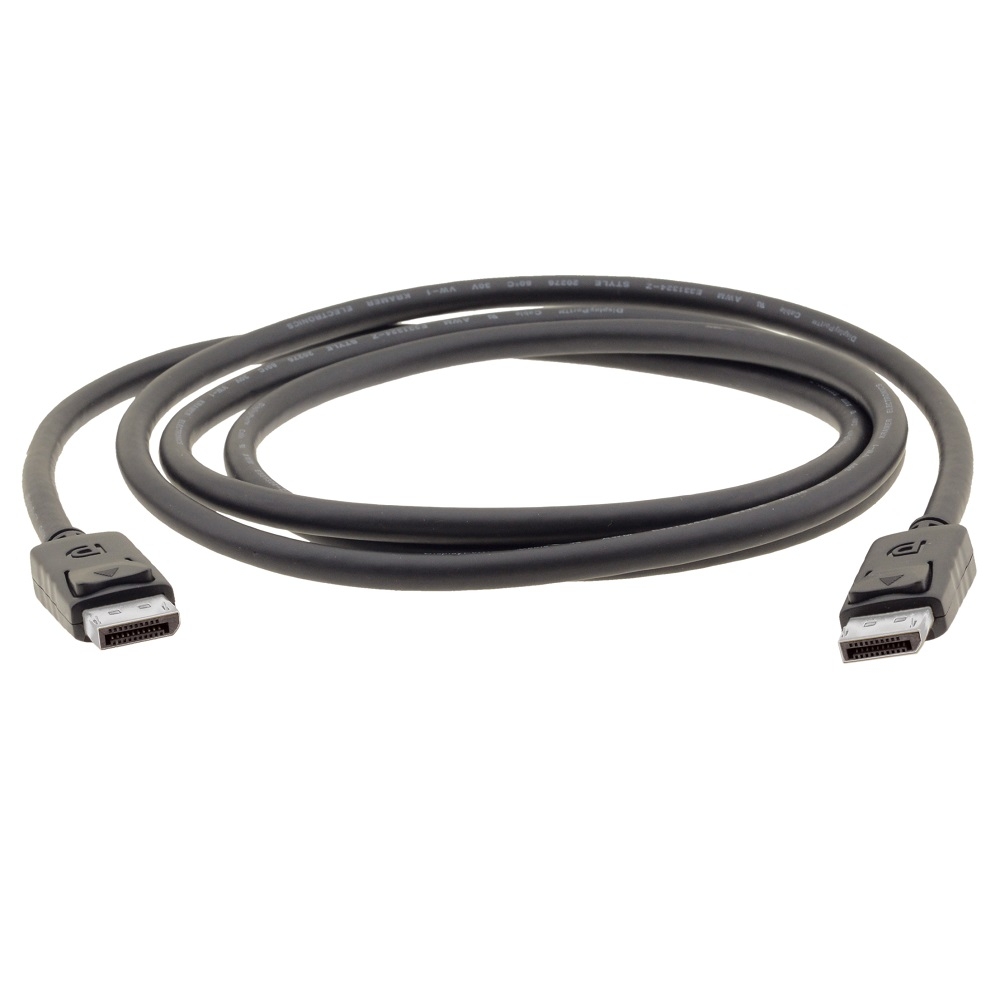

Dây cáp DisplayPort 4K C-DP
Mô tả ngắn
4K DisplayPort Cable
Max. Resolution — 4K@60Hz (4:4:4)
Max. Data Rate — 21.6 Gbps
Triple shielded
Varied lengths available
Hotline: 0918 642 886
C−DP is a high−resolution DisplayPort cable for video signals up to 4K@60Hz (4:4:4) resolution supporting DisplayPort 1.2 standard. C−DP supports an HBR2 (High Bit Rate 2) bandwidth of up to 21.6 Gbps. The cable is triple shielded for superior noise immunity.
-
- High–Performance Professional Cable — supports resolutions up to 4K@60Hz (4:4:4) and an HBR2 (High Bit Rate 2) bandwidth of up to 21.6 Gbps.
-
- Content Protection Support — DPCP (DisplayPort Content Protection) and HDCP 2.2.
-
- Daisy Chain Multiple Monitors — With MST (Multi-Stream) support.
-
- Secure Connections — Includes molded DisplayPort connectors with latches.
-
- Quality Construction — Triple shielded for superior noise immunity.
-
- Backward Compatibility — Compatible with DisplayPort 1.1.
-
- Varied Selection of Lengths — Available in versions of 0.9 to 15.0m (3 to 50ft).
|
MODEL |
DESCRIPTION |
FEET |
RESOLUTION |
|
C–DP–3 |
DisplayPort (M) to DisplayPort (M) Cable |
0.90m (3ft) |
4K 60 (4:4:4) |
|
C–DP–6 |
DisplayPort (M) to DisplayPort (M) Cable |
1.80m (6ft) |
4K 60 (4:4:4) |
|
C–DP–10 |
DisplayPort (M) to DisplayPort (M) Cable |
3.00m (10ft) |
4K 60 (4:4:4) |
|
C–DP–15 |
DisplayPort (M) to DisplayPort (M) Cable |
4.60m (15ft) |
4K 60 (4:4:4) |
|
C–DP–25 |
DisplayPort (M) to DisplayPort (M) Cable |
7.60m (25ft) |
4K 60 (4:4:4) |
|
C–DP–35 |
DisplayPort (M) to DisplayPort (M) Cable |
10.70m (35ft) |
4K 60 (4:2:0) |
|
C–DP–50 |
DisplayPort (M) to DisplayPort (M) Cable |
15.20m (50ft) |
1080p |
VIDEO
-
Resolutions: Supports all VESA resolutions up to 4K@60Hz (4:4:4)
-
Max. Data Rate: 21.6Gbps (5.4 Gbps per lane)
PHYSICAL
-
Male DisplayPort Connectors: Gold plated pins–15u, Nickel Plated Shell
SCREENING
-
Type: Triple Shielding (eliminates RF and EM interference)
CONDUCTORS
-
3-15ft Lengths: 28AWG
-
25−50ft Lengths: 26AWG
JACKET
-
Material: PVC
-
Diameter 3-15ft Lengths: 7.2 ± 0.19mm
-
Diameter 25-50ft Lengths: 8.2 ± 0.19mm
-
Average Thickness 3-15ft Lengths: 0.96mm
-
Average Thickness 25-50ft Lengths: 0.57mm
-
Color: Black
ELECTRICAL
-
Voltage Rating: 30V
-
Temperature Rating: 80°C
-
Dielectric Strength: AC — 750V/1sec MIN
-
Insulation Resistance: FOAM–SKIN–PE,PE:DC–500V 100 MΩ/KM MIN. at 20℃
-
Conductor Resistance 28AWG: 237Ω/KMMAX. at 20℃
-
Conductor Resistance 26AWG: 148Ω/KM MAX. at 20℃
-
Differential Impedance: 100±5Ω
-
Intra Pair Skew: 50ps/2m
-
Inter Pair Skew: 4ns/2m
STANDARDS COMPLIANCE
-
Rating: VW–1
-
RoHS: 2011/65/EU
