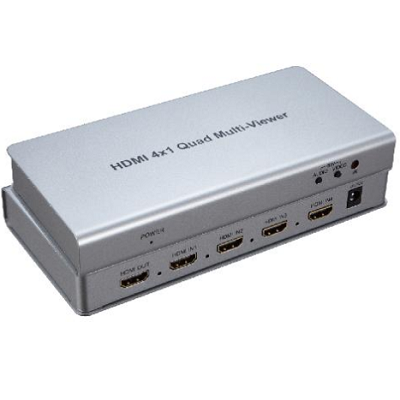

DJV- 410 is a quad multi-viewer video wall controller for LCD TVs, ultra-narrow LCD screens and HD projectors.
DJV- 410 is a quad multi-viewer video wall controller for LCD TVs, ultra-narrow LCD screens and HD projectors. It supports a 4-way HDMI signal input connected to 1 LCD TVs or any other display device. It has 5 kinds of models which can be customized to suit the user's specific needs. Any product using High-Definition processing chip do support 1080 input and output signals, interface includes 1 HDMI output and 4 HDMI input.

DJV- 410 5 Modes

Mode 1: Quad screen.
Mode 2: One main and triple small screen
Mode 3: One screen
Mode 4: Double screen
Mode 5: Quad screen
SPECIFICATIONS
|
Name |
Spec |
|
Interface |
HDMI1.3(support HDCP1.2 and DVI1.0) |
|
Resolution |
Up to 1920*1080@60Hz |
|
Input port |
HDMI*4 |
|
Output port |
HDMI*1 |
|
Weight |
350g |
|
Audio output format |
PCM2 |
|
Power |
DC 12V /2A |
|
Dimension |
190mm(L)x85mm(W)x25mm(H) |
DJV-200 adopts a modular design that enables users to increase or decrease the output modules. The machine can be customized for various kinds of multi-screen patterns such as 2x2, 3x3, 1x2, 2x3, 3x2, 2x4, 4x2, 2x5, 5x2 etc.
DJV-110 is a quad-screen video wall controller for LCD TVs, ultra-narrow LCD screens and HD projectors. Can be customized to 1x2, 2x1, 1x3, 3x1, 2x2, 1x4, 4x1 and other mosaic pattern according to the user's requirements
DJV-100 is a quad-screen video wall controller for LCD TVs, ultra-narrow LCD screens and HD projectors
