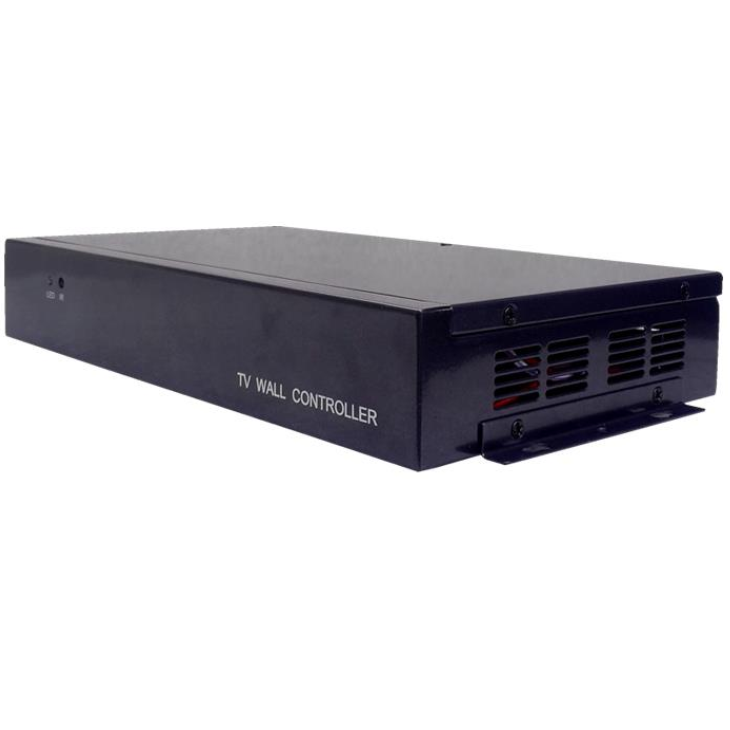

Video Wall Player DJV-100
Mô tả ngắn
DJV-100 is a quad-screen video wall controller for LCD TVs, ultra-narrow LCD screens and HD projectors
Hotline: 0918 642 886
DJV-100 is a quad-screen video wall controller for LCD TVs, ultra-narrow LCD screens and HD projectors. It supports a 4-way HDMI signal output connected to 4 LCD TVs or any other display device. It has models (2x2, 3x1,1x3, 1x4, and 4x1) which can be customized to suit the user's specific needs. Any product using High-Definition processing chip do support 1080 input and output signals, 1 audio, 1 VGA, 1 channel USB ,1 DVI and 1 HDMI input. The inputs can be switched into a large multi-screen display including the audio and video output.
The product is simple and easy to operate because its multi-screen processor is designed with infrared control. The center control can be controlled via RS-232. It can also be accessed through buttons with one-click shortcut control function.
--------------------------------------------------------
SPECIFICATIONS
|
Name |
Spec |
|
HDMI input |
|
|
Interface |
HDMI（support HDCP1.3 and DVI1.0） |
|
Resolution |
Up to 1920*1080@60Hz |
|
Color |
24bit,16.77M |
|
VGA input |
|
|
Interface |
DB15 |
|
Resolution |
800*600 to 1920*1080@60Hz |
|
AV input |
|
|
Interface |
RCA |
|
Identification |
Auto |
|
Standard |
PAL,NTSC |
|
USB |
|
|
Video |
RM, RMVB, AVI, WMV, MOV, MP4, FLV, MPG, DAT, MPEG etc. It |
|
Audio |
MP3, WMA, FLAC etc. |
|
Picture |
JPG, BMP and PNG |
|
Text |
TXT |
|
Audio in |
Suitable for VGA video |
|
|
Suitable for output video |
|
HDMI output |
1024*768@60hz,720P@60Hz,1080P@60Hz |
|
Controller |
Remote controller, button and RS232 |
|
Power |
Input： AC 100-240V |
|
Dimension |
260mm(L)x150mm(W)x44mm(H) |
