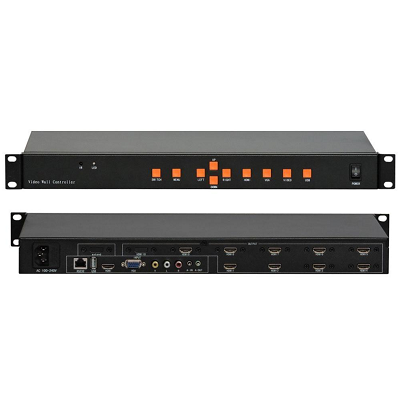

Video Wall Player DJV-200
Mô tả ngắn
DJV-200 adopts a modular design that enables users to increase or decrease the output modules. The machine can be customized for various kinds of multi-screen patterns such as 2x2, 3x3, 1x2, 2x3, 3x2, 2x4, 4x2, 2x5, 5x2 etc.
Hotline: 0918 642 886
DJV-200 is a video wall controller product aimed at LCD TVs, specifically Ultra-narrow side LCD screens. The processor can be customized with 2 to 25 HDMI output stitching according to the user preferences and can customize unlimited joints by cascade. The product use high-definition processing chip so it can support 1080P signal for input and output. It also supports 1 VGA, 1 USB, 1 HDMI and 1 composite video for input. All the input signals can be switched into multi-screen display with related video and audio simultaneously. DJV-200 can be controlled with infrared remote control, case button control or RS-232. It is easy to operate. Users can use a one-click quick control and global function control for easy operation.
DJV-200 is a video wall controller product aimed at LCD TVs, specifically Ultra-narrow side LCD screens. The processor can be customized with 2 to 25 HDMI output stitching according to the user preferences and can customize unlimited joints by cascade. The product use high-definition processing chip so it can support 1080P signal for input and output. It also supports 1 VGA, 1 USB, 1 HDMI and 1 composite video for input. All the input signals can be switched into multi-screen display with related video and audio simultaneously. DJV-200 can be controlled with infrared remote control, case button control or RS-232. It is easy to operate. Users can use a one-click quick control and global function control for easy operation.
The machine can be customized for various kinds of multi-screen patterns such as 2x2, 3x3, 1x2, 2x3, 3x2, 2x4, 4x2, 2x5, 5x2 etc.
Keys Function (on the face panel)
Shortcut switch VIDEO, USB, HDMI and VGA
Shortcut switch between joint and un-jointmode
Adjustment of edge blanking
Volume of audio output control
Brightness, contrast ratio and color saturation can be adjusted
Video Speed, next song and selection of program at USBconnection
Other functions of multi-screen processor
DJV-200 adopts a modular design that enables users to increase or decrease the output modules. A single machine can have maximum of 25 HDMI joint signal output and compatible with DVI protocol. It can have unlimited joints with cascade connection. Based on the user's preferences, the machine can be customized for various kinds of multi-screen patterns such as 2x2, 3x3, 1x2, 2x3, 3x2, 2x4, 4x2, 2x5, 5x2 etc.
SPECIFICATIONS
|
Name |
Specification |
|
Input signal |
|
|
VGA |
HD15 interface and link with 1 audio interface of 3.5 |
|
HDMI |
HDMI 1.4(HDCP 1.3) DVI 1.0 HDMI embed audio |
|
Video |
Automatic identification the system of NTSC, PAL and SECAM link with 1 |
|
USB |
Standard interface of 2.0,can insert U disk, embed audio; |
|
Output signal |
|
|
HDMI interface |
4 HDMI output, support joint pattern of 2*2,1*4,4*1; |
|
Audio |
3.5 Audio interface, support left and right channels and stereo, AV signal |
|
others |
|
|
Control mode |
RS232, IR , case key |
|
Power supply |
AC: 100 to 240 V |
|
Joint pattern |
Quad standard joint, single machine customize joint of 2 to 25 |
|
Power |
20W |
|
Case size |
|
|
Dimensions(1U) |
1U 19 inch standard crate,442mm(L)*45mm(H)*242mm(W) |
|
Weight(1U) |
2.5KG |
