Video Wall Player DJV-110
Mô tả ngắn
DJV-110 is a quad-screen video wall controller for LCD TVs, ultra-narrow LCD screens and HD projectors. Can be customized to 1x2, 2x1, 1x3, 3x1, 2x2, 1x4, 4x1 and other mosaic pattern according to the user's requirements
Hotline: 0918 642 886

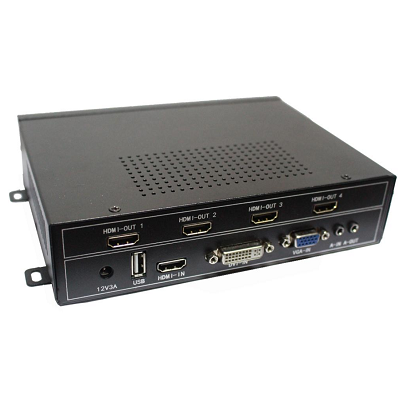

DJV- 110 is a quad-screen video wall controller for LCD TVs, ultra-narrow LCD screens and HD projectors. It supports a 4-way HDMI signal output connected to 4 LCD TVs or any other display device. It has models (1X1, 2x2, 3x1,1x3,1x4, and 4x1) which can be customized to suit the user’s specific needs. Any product using High-Definition processing chip do support 1080 input and output signals, 1 composite video, 1 VGA, 1 channel USB ,1 DVI ,1 Audio and 1 HDMI input. The inputs can be switched into a large multi-screen display including the audio and video output.
DJV- 110 can be customized to 1x2, 2x1, 1x3, 3x1, 2x2, 1x4, 4x1 and other mosaic pattern according to the user's requirements.
SPECIFICATIONS
|
Name |
Spec |
|
HDMI input |
|
|
Interface |
HDMI1.4（support HDCP1.3 and DVI1.0） |
|
Resolution |
Up to 1920*1080@60Hz |
|
Color |
24bit,16.77M |
|
VGA input |
|
|
Interface |
DB15 |
|
Resolution |
640*480 to 1920*1200@60Hz |
|
DVI input |
|
|
Interface |
DVI Standard Connector |
|
Resolution |
Up to 1920*1080@60Hz |
|
USB |
USBx1 |
|
Video |
RM, RMVB, AVI, MP4, FLV, MPG, DAT, MPEG etc. It |
|
has a resolution up to 1080P |
|
|
Audio |
MP3, FLAC etc. |
|
Picture |
JPG, BMP and PNG |
|
Text |
TXT |
|
Audio |
Input*1, Output*1 |
|
Audio output |
Suitable for output video |
|
HDMI output |
1024*768@60hz,720P@60Hz,1080P@60Hz |
|
Controller |
Remote controller, button |
|
Power |
Input: AC 100-240V 15W |
|
Dimension |
192mm(L)x47mm(W)x147mm(H) |
