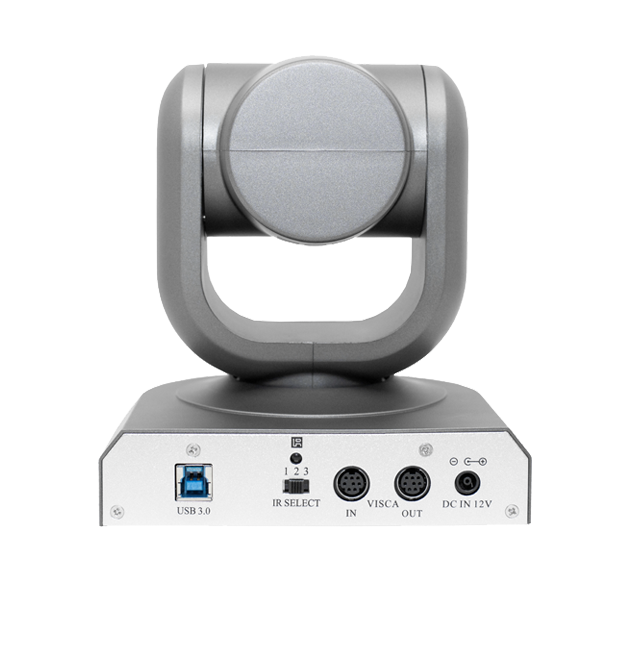

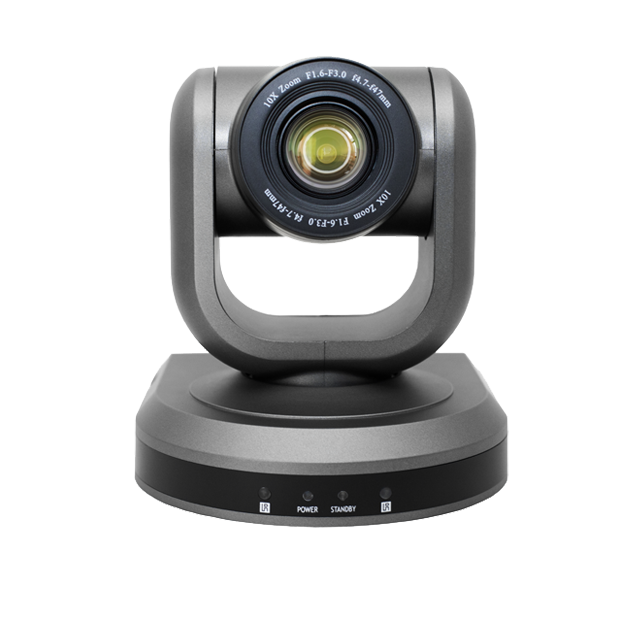

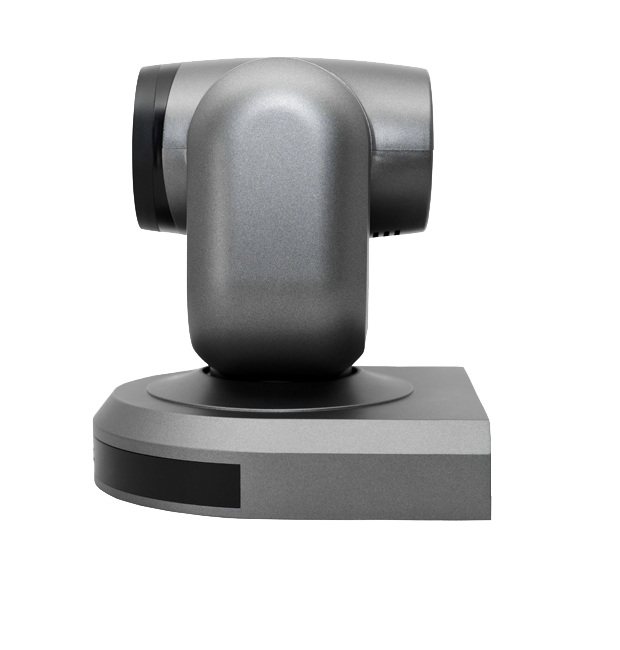

Camera Oneking USB 3.0 HD910-U30-K1
Mô tả ngắn
HD910-U30-K1 USB 3.0 Video PTZ Camera 2.0 Megapixel Full HD Camera experience 1080i@60 vivid images, equipped with 10x optical zoom lens, enhancing your video conferencing, distance learning, training meeting, courtrooms or remote medical with natural and smooth video images. USB3.0 Interface is easy to installation and transfer high-quality video streaming.
Hotline: 0918 642 886
HD910-U30-K1 USB 3.0 Video PTZ Camera
2.0 Megapixel Full HD Camera experience 1080i@60 vivid images, equipped with 10x optical zoom lens, enhancing your video conferencing, distance learning, training meeting, courtrooms or remote medical with natural and smooth video images. USB3.0 Interface is easy to installation and transfer high-quality video streaming.
Features:
Private Tooling design High Definition PTZ camera
Fast and smooth video handling
Power ON-OFF switch
Work & Standby LED indicator
Speed Match
Auto/Manual focus/brightness/WB
RS-232C/VISCA Protocol
Lens/Dome OSD menu
Boundary scanning
Standby & wakeup status
Swap video format button
USB 3.0 Video output
Performance:
2.1 million pixels
1920X 1080p@30fps
10x optical zoom
F=4.5-45 mm F1.8-2.2
1.0 Lux illumination
1/2.5 inch super quality HD CMOS transducer
Pan ±175°
Tilt ±120°
64 preset positions
4 cruise lines
DC 12V, 2A
Dimension:
L 124mm x W 120mm x H145mm
220x175x220mm (Package)
N. Weight: 1.4kgs
G. Weight: 1.7kgs
Installation:
Desktop
Ceiling mount
Standard Tripod accessory
|
Model |
HD910-USB-K1 |
|
|
Image SenSor |
Sensor |
1/2.5” model, primary color CMOS, 2.1 M compatible |
|
Minimum Scene lllumination |
1.0 Lux at F1.8 |
|
|
White Balance |
AUTO/Manual |
|
|
Gain Control |
AUTO |
|
|
Back-light compensation |
ON/OFF |
|
|
Electronic shutter |
1/5~1/4000S |
|
|
S/N Ratio |
>50db |
|
|
Lens |
Focus |
AUTO |
|
Iris |
AUTO/Manual |
|
|
Zoom |
10X Optical ZOOM |
|
|
f=4.5mm～45mm F1.8(W)～2.2(T) |
||
|
Video Output |
USB 3.0 Interface |
|
|
YUY2 |
||
|
Video format |
YUY2 | 1920x1080 30p, 1280x 720 30p |
|
|
Control Decoder |
EIA/RS-485 |
|
|
Communication |
EIA/RS-232(Bidirectional) |
|
|
PTZ Control Protocol |
VISCA,PELCO-P,PELCO-D |
|
|
Baud Rate |
9600/38400 bps |
|
|
Patrol tours |
4 |
|
|
Preset |
64 |
|
|
Save status after Power off |
Support |
|
|
Speed Matching Function |
Support |
|
|
OSD Menu |
Support |
|
|
Image Auto Flip |
Support |
|
|
Pan Speed |
0-100 degrees/s |
|
|
Tilt Speed |
0-80 degrees/s |
|
|
Pan Rotation Angle |
359degrees |
|
|
Tilt Rotation Angle |
240degrees |
|
|
Auto Pan Scan |
Support |
|
|
Boundary Scan |
0-359degrees(Programmable) |
|
|
Remoter Control |
IR Wireless remote control P/T/Z |
|
|
Power |
DC12V ±10% 1.2A |
|
|
Operation Temperature |
-10℃～60℃ |
|
|
Environmental humidity |
0-95%RH(non-condensa tion) |
|
|
Length X width X high |
124x120x145mm/220x175x220mm(NET/PACKAGE) |
|
|
Weight |
800g/1300g(NET/PACKAGE) |
|
