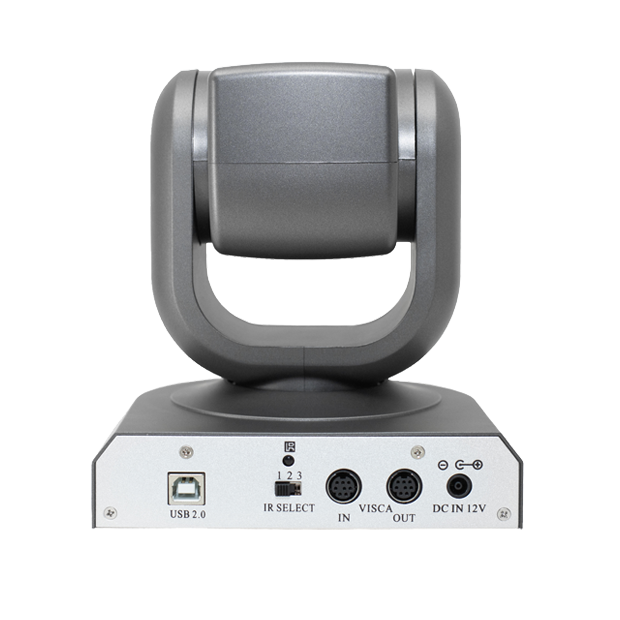

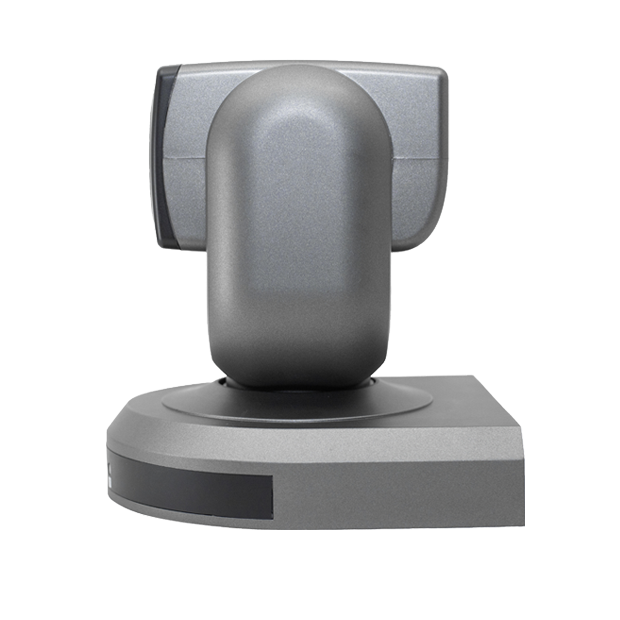

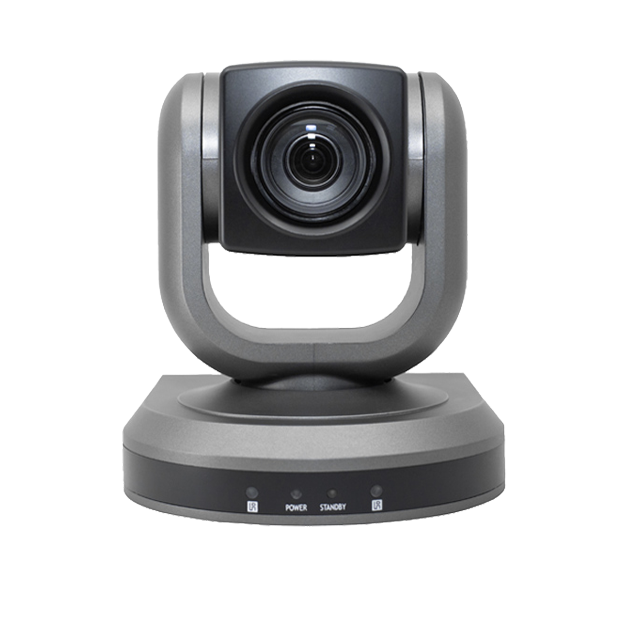

Camera Oneking USB 2.0 HD920-U20-K5
Mô tả ngắn
1080p@30fps | 20x Optical zoom | UVC/VISCA Control | HOV 59.5°| USB 2.0 MJPEG
Hotline: 0918 642 886
HD920-U20-K5 USB 2.0 Video PTZ Camera
|
Model |
HD920-U20-K5 |
|
|
Image SenSor
|
Sensor |
1/2.8" Progressive CMOS |
|
Effective Pixel |
2.1 Megapixel |
|
|
Min.Illumination |
0.5 Lux at F1.6 |
|
|
White Balance |
Auto/Manual |
|
|
Gain Control |
Auto |
|
|
Back Light Compensation |
On/Off |
|
|
Electronic Shutter |
1/60 - 1/10,000S |
|
|
SN Ratio |
>50db |
|
|
Lens
|
Focus |
f=4.7-94mm F1.6-F3.5 |
|
Iris |
Auto/Manual |
|
|
Zoom |
20 Optical X 12 Digital |
|
|
HOV |
3.2°（T）~58.7°（W） |
|
|
Video Output Interface |
USB2.0 |
|
|
Video Output Format |
USB2.0:1080P30(MJPG),720P30（MJPG）,640×480 |
|
|
Control terminal |
RS-232C, RS-485,usb |
|
|
Control Protocol |
VISCA,PELCO-D |
|
|
baud rate |
9600/38400bps |
|
|
patrol line |
4 cruise sequence |
|
|
preset position |
64 preset positions |
|
|
Speed Match |
Pan/Tilt movement speed depends on camera module zoom in/out |
|
|
OSD Menu |
Access to OSD Menu and adjust camera module parameters |
|
|
Image auto flp |
Support |
|
|
Pan movement speed |
1-60°/S |
|
|
Tilt movement speed |
1-60°/S |
|
|
Pan movement range |
355° |
|
|
Tilt movement range |
90°（Up）,45°（Down） |
|
|
Pan scanning automatically |
Support Pan scanning automatically |
|
|
Boundary scanning |
0-355°(programmable) |
|
|
Remote controller |
IR Wireless Remote controller P/T/Z |
|
|
Power supply |
DC12V,2A |
|
|
Work Temperature |
0-50℃ |
|
|
Humidity |
0-95%RH |
|
|
LxWxH |
145mm×148mm×160mm |
|
|
Weight |
915g |
|
