Camera Oneking USB 3.0 HD388-U30-K2
Mô tả ngắn
HD388-U30-K2 USB 3.0 Video PTZ Camera : 2.0 Megapixel Full HD Camera experience 1080i@60 vivid images, equipped with 10x optical zoom lens.
Hotline: 0918 642 886
HD388-U30-K2 USB 3.0 Video PTZ Camera
2.0 Megapixel Full HD Camera experience 1080i@60 vivid images, equipped with 10x optical zoom lens, enhancing your video conferencing, distance learning, training meeting, courtrooms or remote medical with natural and smooth video images Support USB Interface which is easy to installation and transfer high-quality video streaming.
Features:
Private Tooling design High Definition PTZ camera
Fast and smooth video handling
Power ON-OFF switch
Work & Standby LED indicator
Speed Match
Auto/Manual focus/brightness/WB
RS-232C/VISCA Protocol
Lens/Dome OSD menu
Boundary scanning
Standby & wakeup status
Swap video format button
USB Video output
Performance:
1920x1080 pixels progressive @30fps
10x optical zoom
F=5-50 mm F2.0-2.8
HOV 51.8° ~5.86° degree
1/3” CMOS 2.1 M compatible
Pan ±175°
Tilt ±45°
64 preset positions
4 cruise lines
DC 12V, 2A
Dimension:
L 124mm x W 120mm x H145mm
220x175x220mm (Package)
N. Weight: 1.4kgs
G. Weight: 1.7kgs
Installation:
Desktop
Ceiling mount
Standard Tripod accessory
|
Model |
HD388-USB-K2 |
|
|
Image SenSor |
Sensor |
1/3” SONY CMOS, 2.1 M |
|
Minimum Scene lllumination |
0.1 Lux |
|
|
White Balance |
AUTO/Manual |
|
|
Gain Control |
AUTO |
|
|
Back-light compensation |
ON/OFF |
|
|
Electronic shutter |
1/30～1/10000S |
|
|
S/N Ratio |
>50db |
|
|
Lens |
Focus |
AUTO |
|
Iris |
AUTO/Manual |
|
|
Zoom |
10 x Optical ZOOM |
|
|
1/3.6model f=5-50 mm |
||
|
Video Output |
USB3.0 Interface |
|
|
Video format |
1080P@30,1080P@25,1080P@24,1080I@60, 1080I@50,720P@60,720P@50 |
|
|
Control Decoder |
EIA/RS-485 |
|
|
Communication |
EIA/RS-232 (Bidirectional) |
|
|
PTZ Control Protocol |
VISCA,PELCO-P,PELCO-D |
|
|
Baud Rate |
9600/38400 bps |
|
|
Patrol tours |
4 |
|
|
Preset |
64 |
|
|
Save status after Power off |
Support |
|
|
Speed Matching Function |
Support |
|
|
OSD Menu |
Support |
|
|
Image Auto Flip |
Support |
|
|
Pan Speed |
0-100 degrees/s |
|
|
Tilt Speed |
0-80 degrees/s |
|
|
Pan Rotation Angle |
359 degrees |
|
|
Tilt Rotation Angle |
+45, -45 degrees |
|
|
Auto Pan Scan |
Support |
|
|
Boundary Scan |
0-359degrees(Programable) |
|
|

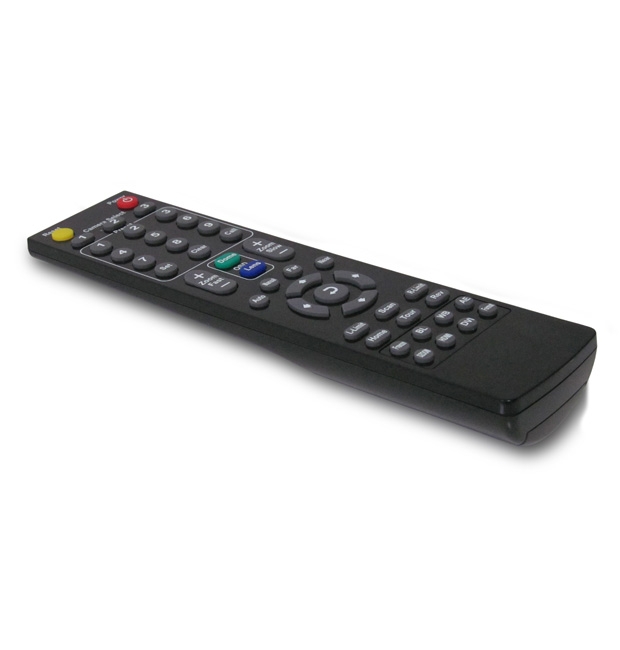

Remoter Control |
IR Wireless remote control P/T/Z |
|
|
Power |
DC12V ±10% 1.2A |
|
|
Operation Temperature |
-10℃～60℃ |
|
|
Environmental humidity |
0-95%RH(non-condensaion) |
|
|
Length X width X high |
250mm x 140mm x 145mm |
|
|
Weight |
900g/2600g(NET/PACKAGE) |
|
