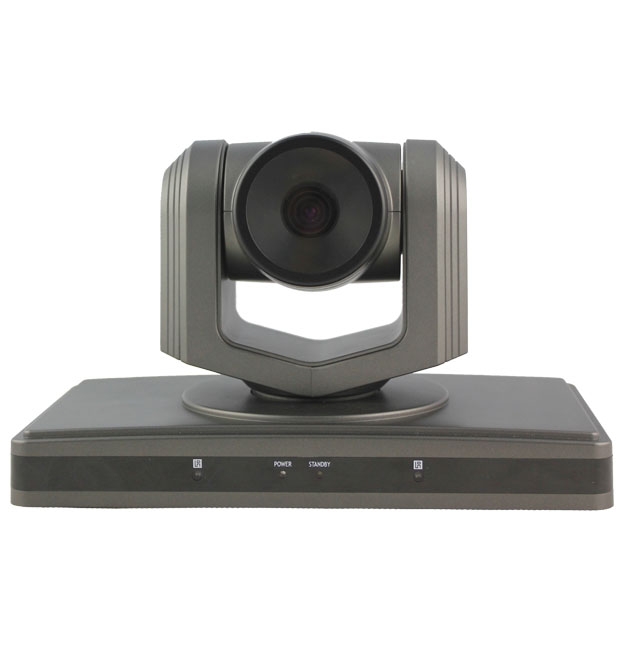

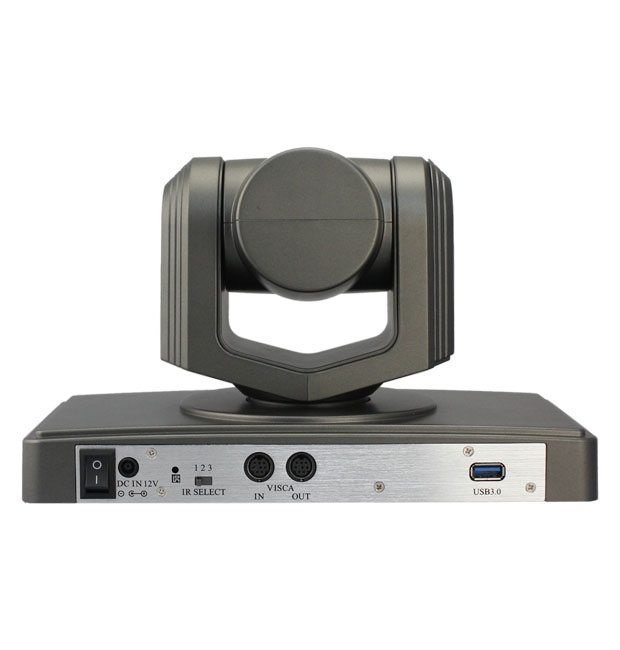

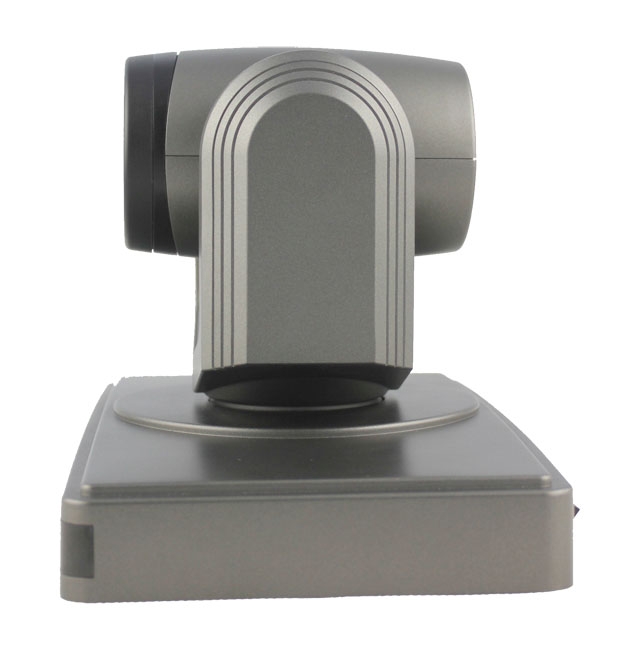

Camera Oneking USB 3.0 HD610-U30-SE600

　Model No.

HD610-U30-SE600

Sensor

Image Sensor

1/2.8" Type CMOS

Effective Pix

2.0 Megapixel

Min. Illumination

0.25 Lux at F1.2

White balance

Auto/Manual/Indoor/Outdoor

Gain control

Auto

Backlight compensation

On/Off

Shutter speed

1/1~1/10,000S, 22 steps

S/N ratio

>50db

Lens

Focus

f=3.00(wide) to 9mm(tele) F1.2-2.2

Iris

Auto/Manual

Lens

3 Optical x 12 digital zoom

Horizontal view angle

1080P:90 degree

720P:60 degree

Video output

USB3.0

Signal system

720P@30, 1080P@30

Control terminal

EIA/RS232C,EIA/RS485(Bidirectional)

Control Protocol

VISCA,PELCO-D

baud rate

9600/38400bps

patrol line

4 cruise sequence

preset position

64 preset positions

Speed Match

Pan/Tilt movement speed depends on camera module zoom in/out

OSD Menu

Access to OSD Menu and adjust camera module parameters

Image auto flp

Support Horizontal/Vertical image flip

Pan movement speed

1-200°/Second

Tilt movement speed

1-150°/Second

Pan movement range

Pan: 0-355°

Tilt movement range

Up: 45°, Down: 45°

Pan scanning automatically

Support Pan scanning automatically

Boundary scanning

0-359°  scanning (programmable)

Remote controller

IR Wireless Remote controller P/T/Z

Power supply

DC12V,2A

Work Temperature

0-50℃

Humidity

0-95%RH

LxWxH

250mm x 140mm x 145mm

Weight

2.8 kgs
