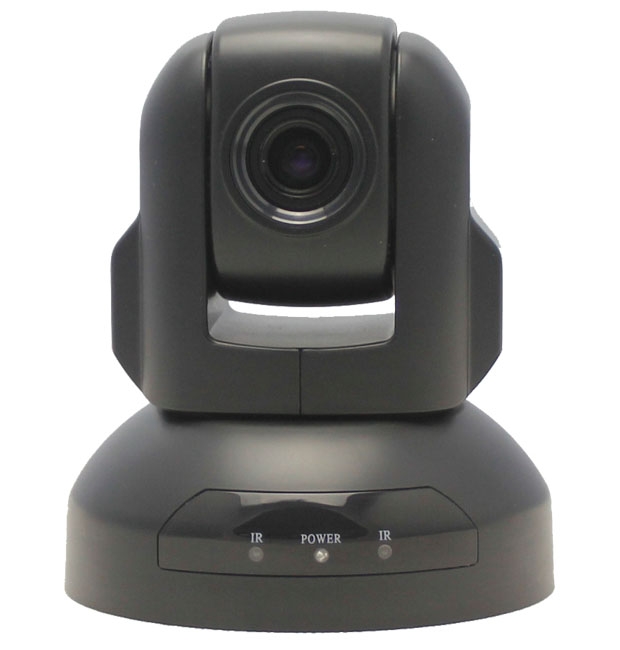

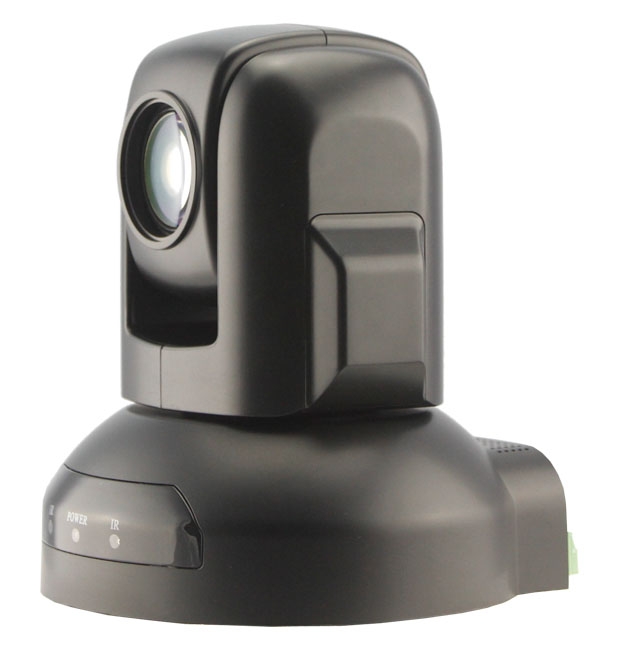

Camera Oneking USB 2.0 HD653MLW
Mô tả ngắn
HD Color Video Camera HD653MLW Low Cost High Performance 2.0 Megapixel HD Color Video camera achieved 1080p@30 or 720p@30 high quality images. Equipped with 4mm fixed lens with 72.5 degree wide Horizontal View angle, USB 2.0 ideally for Web conferencing system, easily connecting to laptop for whom on business trip
Hotline: 0918 642 886
HD Color Video Camera HD653MLW Low Cost High Performance 2.0 Megapixel HD Color Video camera achieved 1080p@30 or 720p@30 high quality images. Equipped with 4mm fixed lens with 72.5 degree wide Horizontal View angle, USB 2.0 ideally for Web conferencing system, easily connecting to laptop for whom on business trip.
Features:
- Smart design High Definition PTZ camera
- Low cost design for video conferencing
- Work & Standby LED indicator
- Boundary scanning
- Image auto-flip
- USB 2.0 simple connection for PTZ Control & video display
Performance:
- 1920x1080pixels progressive @29fps
- 3-10 mm lens
- HOV80 degree
- 1/2.7″ HD colorCMOS
- Pan ±175degree (355degree)
- Tilt +90 degree, - 45 degree
- 64 preset positions
- 4 cruise lines
- DC 12V, 1A
Dimension:
- L 124mm x W 120mm x H145mm
- N. Weight: 1.3kgs
- G. Weight: 1.5kgs
Installation:
- Desktop
- Ceiling/wall mount
- Standard Tripod accessory
- 5 meters USB Cable
|
Image SenSor |
Sensor |
1/2.7″ HD colorCMOS |
|
Minimum Scene lllumination |
0.5Lux at F2.0 |
|
|
Lens |
Lens |
f=3-10 mm F=1.6 |
|
Zoom |
3xvarifocal lens zoom |
|
|
Hov |
73degree |
|
|
Video Output |
USB Interface |
|
|
Video format |
MJPG/1080P29, 720P@30, |
|
|
Control Decoder |
EIA/RS-485, USB |
|
|
Communication |
EIA/RS-232(Bidirectional) |
|
|
PTZ Control Protocol |
PELCO-D |
|
|
Baud Rate |
9600/38400bps |
|
|
Patrol tours |
4 |
|
|
Preset |
64 |
|
|
Save status after Power off |
Support |
|
|
Speed Matching Function |
Support |
|
|
Image Auto Flip |
Support |
|
|
Pan Speed |
0-40degrees/s |
|
|
Tilt Speed |
0-40 degrees/s |
|
|
Pan Rotation Angle |
355degrees |
|
|
Tilt Rotation Angle |
+ 90 degrees, - 45 degree |
|
|
Auto Pan Scan |
Support |
|
|
Boundary Scan |
0-355degree（Programmable） |
|
|
Remoter Control |
IR Wireless remote control P/T/Z |
|
|
Power |
DC12V ±10% 1A |
|
|
Operation Temperature |
0℃～50℃ |
|
|
Environmental humidity |
0-95%RH(non-condensaion) |
|
|
Length X width X high |
124x120x145mm/220x175x220mm(NET/PACKAGE) |
|
|
Weight |
640g/1100g(NET/PACKAGE) |
|
