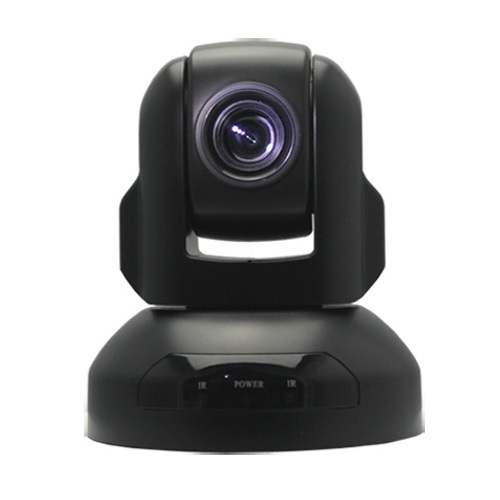

Camera Oneking USB 2.0 HD654
Mô tả ngắn
Camera Oneking HD654:
*1/3”HD colorCMOS Sensor
*10x Optical Zoom, HOV 48.4 degree
*USB 2.0 video output
Hotline: 0918 642 886
Low Cost High Performance 1.3Megapixel HD Color Video camera achieved 720p@30 high quality images. Equipped with 4.9-49mm varifocal lens, USB 2.0 ideally for Small or Medium size Web conferencing system, easily connect to laptop for whom on business trip and compatible with any Web Conferencing system in any OS.
Features:
Smart design High Definition PTZ camera
Fast and smooth video handling
Low cost design for video conferencing
Work & Standby LED indicator
Speed Match
RS-232C/VISCA Protocol
Boundary scanning
USB 2.0
Performance:
1280x720pixels progressive @30fps
4.9-49mm 10x optical zoom lens
HOV48.4 degree
1/3”HD colorCMOS Sensor
Pan ±180degree continuously
Tilt +90 degree, - 45 degree
64 preset positions
4 cruise lines
DC 12V, 1.2A
Dimension:
L 124mm x W 120mm x H145mm
N. Weight: 1.3kgs
G. Weight: 1.5kgs
Installation:
Desktop
Ceiling/wall mount
Standard Tripod accessory
5 meters USB Cable
|
Model |
HD654 |
|
|
Image SenSor |
Sensor |
1/3”HD colorCMOS |
|
Minimum Scene lllumination |
0.1Lux at F1.2 |
|
|
White Balance |
N/A |
|
|
Gain Control |
AUTO |
|
|
Back-light compensation |
ON/OFF |
|
|
S/N Ratio |
>50db |
|
|
Lens |
Lens |
f=4.9-49mm |
|
Iris |
AUTO/Manual |
|
|
Zoom |
10x Optical Zoom |
|
|
Hov |
48.4 degree |
|
|
Video Output |
USB 2.0 |
|
|
Video format |
720P@30 |
|
|
Control Decoder |
EIA/RS-485, USB |
|
|
Communication |
EIA/RS-232(Bidirectional) |
|
|
PTZ Control Protocol |
VISCA,PELCO-D |
|
|
Baud Rate |
9600/38400bps |
|
|
Patrol tours |
4 |
|
|
Preset |
64 |
|
|
OSD Menu |
N/A |
|
|
Speed Matching Function |
Support |
|
|
Image Auto Flip |
/ |
|
|
Pan Speed |
0-150 degrees/s |
|
|
Tilt Speed |
0-100 degrees/s |
|
|
Pan Rotation Angle |
360 degrees |
|
|
Tilt Rotation Angle |
+ 90 degrees, - 45 degree |
|
|
Auto Pan Scan |
Support |
|
|
Boundary Scan |
0-359degree (Programmable) |
|
|
Remoter Control |
IR Wireless remote control P/T/Z |
|
|
Power |
DC12V ±10% 1.2A |
|
|
Operation Temperature |
0℃～50℃ |
|
|
Environmental humidity |
0-95%RH(non-condensaion) |
|
|
Length X width X high |
124x120x145mm/220x175x220mm(NET/PACKAGE) |
|
|
Weight |
800g |
|
