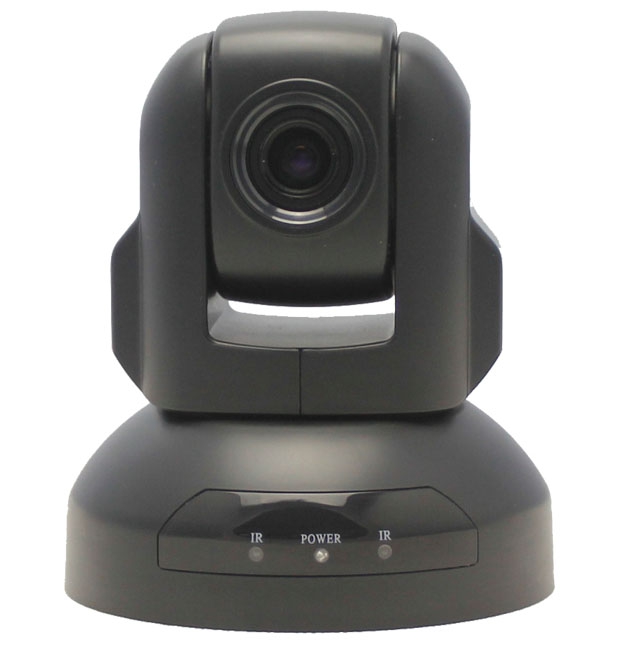

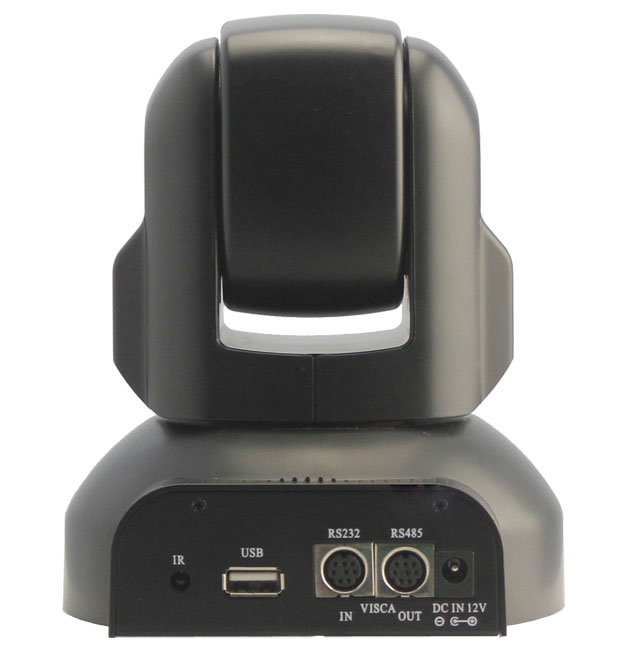

Camera Oneking USB 2.0 HD652M
Mô tả ngắn
Camera Oneking HD652M:
*1/2.7” HD color CMOS Sensor
*4 mm Lens, HOV 82.5 degree
*USB 2.0 MJPEG
Hotline: 0918 642 886
|
Model |
HD652M |
|
|
Image SenSor |
Sensor |
1/2.7” HD color CMOS |
|
Minimum Scene lllumination |
5.0Lux at F2.0 |
|
|
White Balance |
N/A |
|
|
Lens |
Lens |
4 mm |
|
Iris |
N/A |
|
|
Hov |
82.5 degree |
|
|
Video Output |
USB Interface |
|
|
Video format |
1080p@30, 720p@30, MJPEG Compression |
|
|
Control Decoder |
EIA/RS-485, USB |
|
|
Communication |
EIA/RS-232（Bidirectional） |
|
|
PTZ Control Protocol |
VISCA, PELCO-D |
|
|
Baud Rate |
9600/38400bps |
|
|
Patrol tours |
1 |
|
|
Preset |
64 |
|
|
Save status after Power off |
Support |
|
|
Speed Matching Function |
Support |
|
|
Image Auto Flip |
Support |
|
|
Pan Speed |
0-280 degrees/s |
|
|
Tilt Speed |
0-100 degrees/s |
|
|
Pan Rotation Angle |
360 degrees |
|
|
Tilt Rotation Angle |
+ 90 degrees, - 45 degree |
|
|
Auto Pan Scan |
Support |
|
|
Boundary Scan |
0-359 degree（Programmable） |
|
|
Remoter Control |
IR Wireless remote control P/T/Z |
|
|
Power |
DC12V ±10% 1.2A |
|
|
Operation Temperature |
0℃～50℃ |
|
|
Environmental humidity |
0-95%RH(non-condensaion) |
|
|
Length X width X high |
124x120x145mm/220x175x220mm(NET/PACKAGE) |
|
|
Weight |
640g/1100g(NET/PACKAGE) |
|
