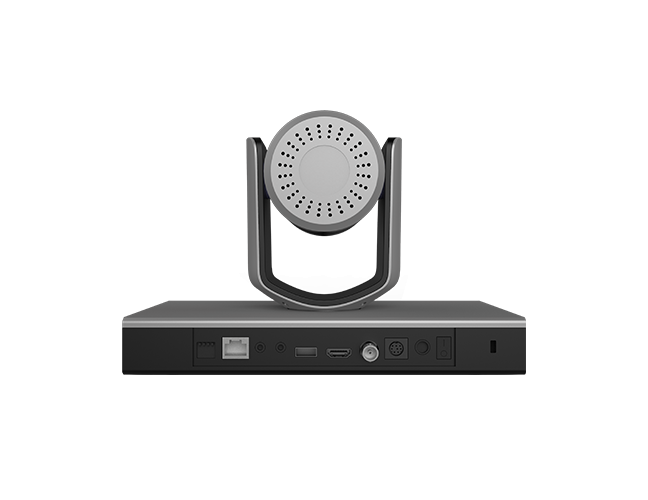

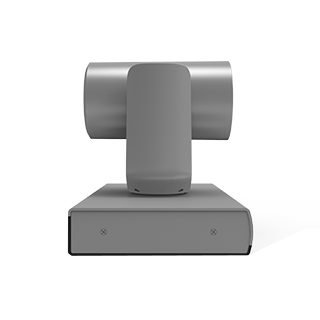

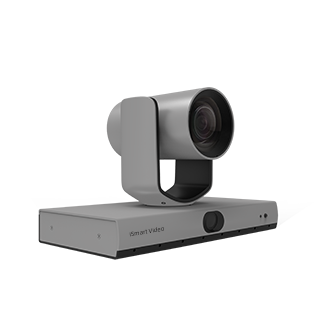

Ismart USB Speaker Tracking Camera AMC-G200TH
Mô tả ngắn
Ismart USB Speaker Tracking Camera AMC-G200TH
Image Sensor: 1/2.8” CMOS, 2.14MP
Zoom Optical 12X, Digital 12X
FOV: Horizontal 72.5° ~ 6.3°
Max Image Size: 1920x1080@60fps
Interface: HDMI, USB, SDI, RJ45, 2x3.5mm LINE IN
Hotline: 0918 642 886
Features:
- Implemented with audio positioning and intelligent face detection algorithm;
- A tracking camera & an EPTZ 4K full-view camera;
- Full-view EPTZ camera can automatically frame all the meeting participants;
- Auto switch between close-up image and EPTZ full-view image;
- Support echo cancellation;
- Support HDMI, USB2.0, 3G-SDI & network interface, up to 1080P60 resolution;
- Support H.264/H.265/MJPEG video compression.
|
Model |
AMC-G200TH |
|
Camera |
|
|
Image Sensor |
1/2.8” CMOS, 2.14MP |
|
Focal |
f=3.9mm ~ 46.8mm |
|
Iris |
F1.6 ~ F2.8 |
|
Zoom |
Optical 12X, Digital 12X |
|
FOV |
Horizontal 72.5° ~ 6.3° |
|
Focus |
Auto, Manual, PTZ Push, One Push |
|
Shutter Speed |
1/1 ~ 1/10,000s |
|
AGC |
Auto, Manual |
|
White Balance |
Auto, Indoor, Outdoor, One Push, Manual, Auto Track |
|
Exposure |
Auto, Manual, Shutter Priority, Iris Priority |
|
SN Ratio |
≥50dB |
|
BLC |
Yes |
|
Full View Camera |
|
|
Image Sensor |
1/2.5” 4K CMOS Sensor, 8.57MP |
|
Lens |
2.8mm focus, 4X digital zoom |
|
FOV |
98° |
|
DNR |
2D/3D |
|
Video Adjustment |
Support EPTZ |
|
PTZ |
|
|
Pan |
-90° ~ +90°, 0.1° ~ 100°/ s |
|
Tilt |
-30° ~ +90°, 0.1° ~ 80°/s |
|
Preset Number |
64 |
|
Network |
|
|
Max Image Size |
1920x1080@60fps |
|
Video Compression |
H.264/H.265/MJPEG |
|
Audio Compression |
AAC |
|
Protocol |
HTTP, RTSP, RTMP, RTP, TCP, UDP, ONVIF |
|
Multi-Stream |
Support 1xclose-up view, 1xfull view, 1xswitching |
|
Interface |
|
|
SDI |
1x3G-SDI, Video Format: 1080P60/50/30/25, 720P60/50 |
|
HDMI |
1xHDMI, Video Format: Same as SDI |
|
USB |
1xUSB2.0, support UVC/UAC |
|
Audio Input |
2x3.5mm LINE IN, including one channel echo cancellation reference audio input |
|
Network Interface |
1x10M/100M RJ45 |
|
General |
|
|
Control Protocol |
VISCA |
|
Address |
1 - 6 |
|
Power Supply |
DC12V |
|
Power Consumption |
<20W |
|
Working Temperature |
0°C ~ + 40°C |
|
Storage Temperature |
-20°C ~ +60°C |
|
Dimension(LxWxH) |
245mmx145mmx165mm |
|
Weight |
＜2KG |
