Ismart 4K PTZ Camera AMC-G431S
Mô tả ngắn

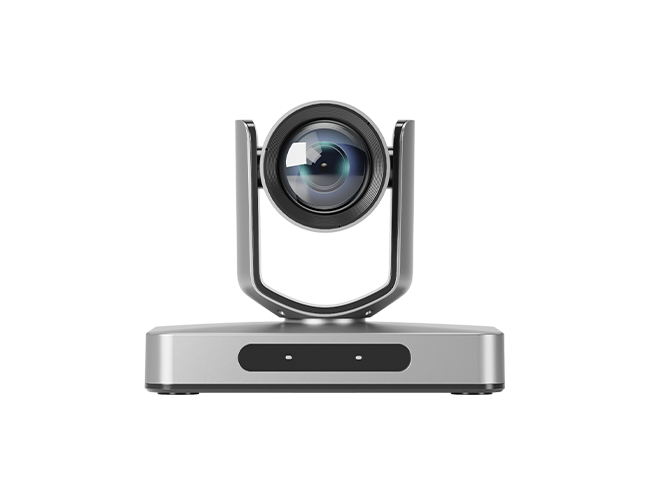

Ismart 4K PTZ Camera AMC-G431S
1/2.8" CMOS, 8.46MP;
12X optical zoom, up to horizontal 72.5°FOV;
Up to 4KP30 video output;
Support standard UVC/UAC protocol;
Hotline: 0918 642 886
AMC-G431S adopts 4K ultra wide-angle lens and advanced network video coding and decoding technology, which supports the output of 4K ultra clear pictures at most.
4KP30 HD video output, equipped with intelligent exposure function, optimizes the image to restore the true color, and the details are clearly visible to improve the efficiency.
Features:
- 1/2.8" CMOS, 8.46MP;
- 12X optical zoom, up to horizontal 72.5°FOV;
- Up to 4KP30 video output;
- Support standard UVC/UAC protocol;

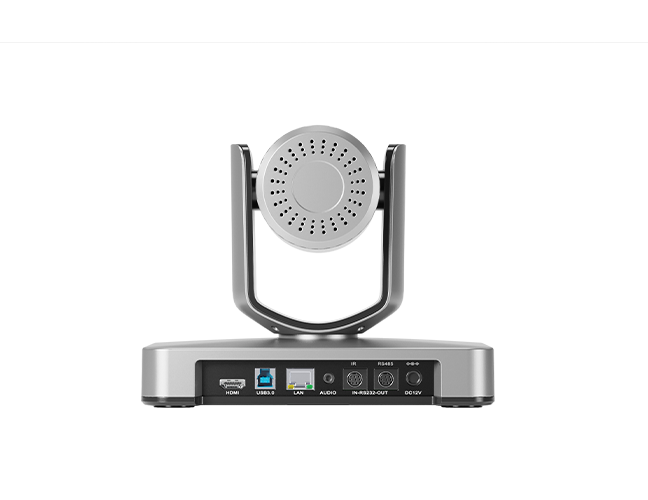

- RS232 In & RS232 Out, support daisy chain;
- Dual stream.
|
Model |
AMC-G431S |
|
Camera |
|
|
Image Sensor |
1/2.8'' CMOS, 8.46MP |
|
Lens |
12X optical zoom; f=3.9mm ~ 46.8mm; F1.6 ~ F2.8 |
|
Digital Zoom |
16X |
|
HFOV |
72.5° ~ 6.3° |
|
Focusing System |
Auto, Manual |
|
White Balance |
Auto, Manual, Auto tracking, One Push, Static Color Temperature |
|
Wide Dynamic |
Support |
|
Exposure |
Auto, Manual, Shutter Priority, Iris Priority |
|
Gain |
Auto, Manual |
|
BLC |
Support |
|
SNR |
≥50dB |
|
PTZ |
|
|
Pan |
-170° ~ +170°; 0.1° ~ 90°/s |
|
Tilt |
-30° ~ +90°; 0.1° ~ 65°/s |
|
Preset Number |
256 |
|
Image Filp |
Support |
|
Interface |
|
|
HDMI 1.4 |
4KP30/P25, 1080P60/P50/P30/P25, 720P60/P50 |
|
Network |
1×RJ-45:1×10M/100M, POE supported. 1. Up to 4KP30 video output 2. Image Compression:H.264/H.265; 3. Protocol:ONVIF/RTSP/RTMP/TCP/UDP/RTMPS; 4. Audio Compression:AAC 5. Support Dual streams; |
|
USB |
1. Support UVC1.1 2. UVC Support: YUY2/H.265/MJPEG YUY2:1080P30/P25, 720P30/P25, P25, 360P30/P25 H.264/H.265/MJPEG: 4KP30/P25, 1080P30/P25, 720P30/P25, 360P30/P25 3. UAC Audio Format PCM |
|
3G-SDI |
1080P60/P50/P30/P25, 720P60/P50 |
|
Audio |
1×LINE IN, 3.5mm |
|
Control Interface |
1×RS-232 In, 1×RS-232 Out/RS-485 |
|
General |
|
|
Power |
DC12V; <15W |
|
Control Protocol |
VISCA / PELCO-P / PELCO-D |
|
Operating Environment |
Temperature: 0°C ~ +40°C; Relative Humidity: 10%RH ~ 90%RH |
|
Storage Environment |
Temperature: -20°C ~ +60°C; Relative Humidity: 10%RH ~ 95%RH |
|
Dimensions (L*W*H) |
176mm × 137mm × 171mm |
|
Weight |
≤1.2kg |
