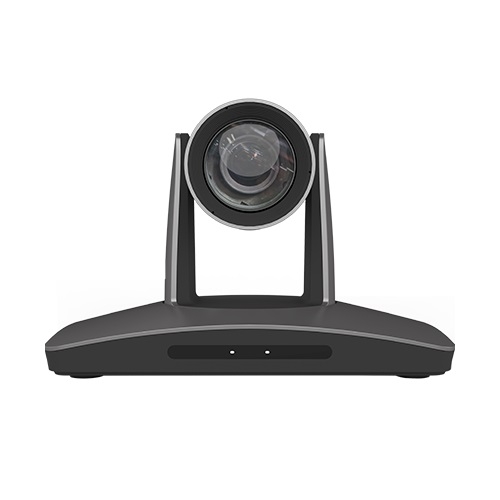

Ismart 1080P HD PTZ Camera AMC-E220NV4
Mô tả ngắn
Ismart 1080P HD PTZ Camera AMC-E220NV4
1/2.8” CMOS sensor, 2.14 MP;
Optical zoom 20X;
H.265/H.264 video compression;
HDMI, USB and Ethernet video output;
Dual stream, supports multi-level image quality configuration;
Hotline: 0918 642 886
AMC-E200NV4 is a HD conference camera that supports up to 1080P60 image output. Equipped with intelligent exposure function, under complex light, camera outputs true colored images.
1080P60 HD video output, equipped with intelligent exposure function, optimizes the image to restore the true color, and the details are clearly visible to improve the efficiency of the meeting.
Features:
- 1/2.8” CMOS sensor, 2.14 MP;
- H.265/H.264 video compression;
- Dual stream, supports multi-level image quality configuration;
- Smart AE technology to effectively avoid the interference of complicated lights from projectors, monitors etc..
- With IR remote controller; with OSD menu;
- Desktop/Ceiling/Wall mount optional;
- Precise driving system with high reliability and precision;
- 1 channel audio input;

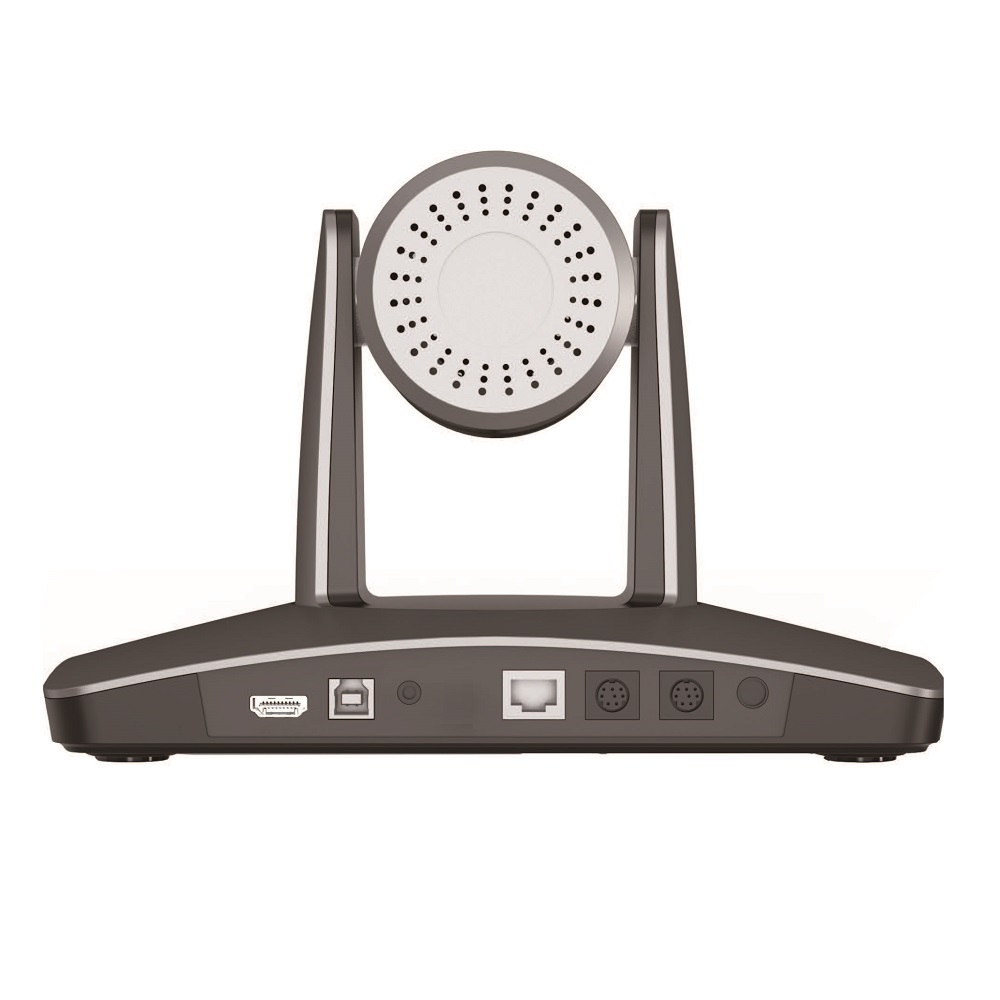

- HDMI, USB and Ethernet video output;
- Support various protocol and control interfaces and daisy chain.
|
Model |
AMC-E200NV4 |
AMC-E220NV4 |
|
Camera |
||
|
Image Sensor |
1/2.8'' CMOS, 2.14MP |
|
|
Lens |
12X, f=4.14～47.08mm, F1.8～F2.8 |
20x, f=4.7～94.0mm, F1.6～F3.5 |
|
Digital Zoom |
12X |
|
|
FOV |
70.3°～6.6° |
55.8°～3.2° |
|
Focus |
Auto/Manual/PTZ Trigger/One Push Trigger |
|
|
Min. Illumination |
0.5Lux |
|
|
Shutter Speed |
1/50s～1/10,000s |
|
|
Gain |
Auto/Manual |
|
|
White Balance |
Auto/One Push/Manual/Static |
|
|
AE Control |
Auto/Manual/Shutter Priority/Iris Priority/Bright Priority |
|
|
SNR |
≥50dB |
|
|
DNR |
2D/3D |
|
|
BLC |
Support |
|
|
PTZ |
||
|
Pan |
-170° ~ +170°; 0.1° ~ 120°/s |
|
|
Tilt |
-30° ~ +90°; 0.1° ~ 80°/s |
|
|
Preset Number |
256 |
|
|
OSD |
Support |
|
|
Image Flip |
Support |
|
|
Interface |
||
|
HDMI |
1 channel HDMI, support 1080P60/P50/P30/P25, 1080I60/50, 720P60/P50 |
|
|
Network |
RJ45(10M/100M), optional POE 1.Up to 1080P30 2.Image compression H.264/H.265 3.Support HTTP/TCP/UDP/RTSP/RTMP/ONVIF 4.Support AAC 5.Support dual streaming |
|
|
USB |
1 channel USB 2.0, support MJPEG/H.264, video output 1080P30, 720P30, 360P30 |
|
|
Audio Interface |
1 channel LINE IN |
|
|
Control Interface |
1 channel RS-232 IN, 1 channel RS-232 OUT |
|
|
General |
||
|
Protocol |
VISCA (support daisy chain)/ PELCO-P/ PELCO-D |
|
|
Power |
DC12V |
|
|
Power Consumption |
<18W |
|
|
Operating Environment |
Temperature: 0°C ~ +40°C; Relative Humidity: 10%RH ~ 90%RH |
|
|
Storage Environment |
Temperature: -20°C ~ +60°C; Relative Humidity: 10%RH ~ 95%RH |
|
|
Dimensions |
243mm × 145mm × 163mm (W*D*H) |
|
|
Weight |
1.4kg |
|
