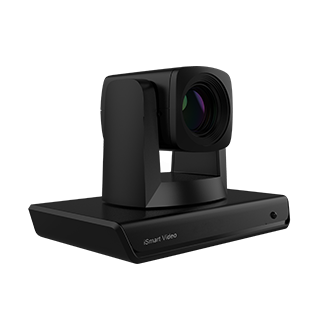

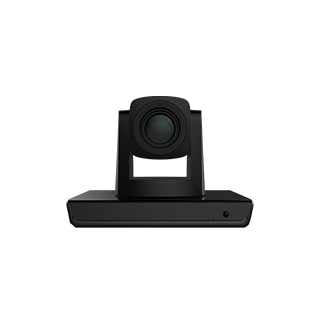

Ismart USB HD PTZ Camera AMC-M1001V3
Image Sensor: 1/2.8” CMOS, 2.16M
Optical Zoom: 10X
Field of View: 62.2°~7.08°
Max Image Size: 1920x1080@30fps
Interface USB2.0
Features:
- Using the newest CMOS sensor, up to 1080P30;
- 10X optical zoom;
- Advanced 2D/3D noise reduction algorithm, excellent noise control;
- DC servo motor drive, smooth operation, accurate positioning;
- Support H.264, H265, MJPEG compressed video output, standard UVC protocol;
- Ethernet, USB output;
- Support USB and remote control to control the camera;
- Support 1 channel audio input (reserved);
- Power consumption<5W;
- Base with tripod thread interface for tripod fixing.
|
Model |
AMC-M1001V3 |
|
Camera |
|
|
Image Sensor |
1/2.8” CMOS, 2.16M |
|
Optical Zoom |
10X |
|
Focal Length |
f=5.15~47.38mm |
|
Iris |
F2.38 |
|
Field of View |
62.2°~7.08° |
|
Focus |
Auto, Manual, PTZ Trigger, One Push Trigger |
|
Exposure Control |
Auto, Manual |
|
White Balanc |
Auto, Manual, One Push Trigge, Auto Tracking |
|
Gain |
Auto, Manual |
|
Shutter Speed |
1/1 ~ 1/10,000s |
|
BLC |
Support |
|
DNR |
2D/3D |
|
S/N Ratio |
≥50dB |
|
PTZ |
|
|
Pan Angle |
-90°~ +90° |
|
Tilt Angle |
-30°~ +90° |
|
Pan Speed |
15°/s |
|
Tilt Speed |
10°/s |
|
Preset Number |
32 |
|
Interface |
|
|
Audio Port |
Line IN |
|
Control Interface |
Ethernet |
|
IR Remote Control |
Support |
|
USB |
|
|
Max Image Size |
1920x1080@30fps |
|
Image Compression |
H264/H265/MJPG |
|
UVC Protocol |
USB2.0, UVC 1.0 |
|
UVC PTZ Control |
Support |
|
General |
|
|
Power |
DC12V |
|
Power Consumption |
<5W |
|
Operating Temperature |
0°C ~ +40°C |
|
Storage Temperature |
-20°C ~ +60°C |
|
Dimension (L x W x H) |
163mm x 101mm x 114mm |
|
Weight |
0.6kg |
|
Body Colour |
Black |
