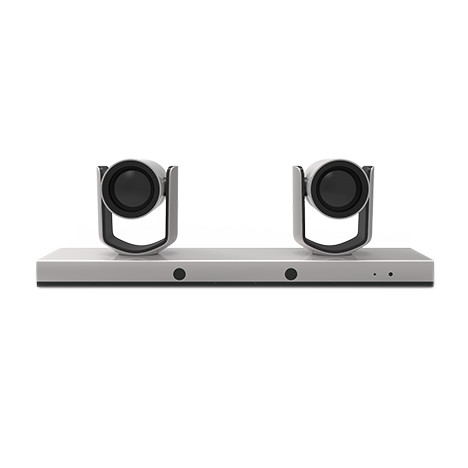

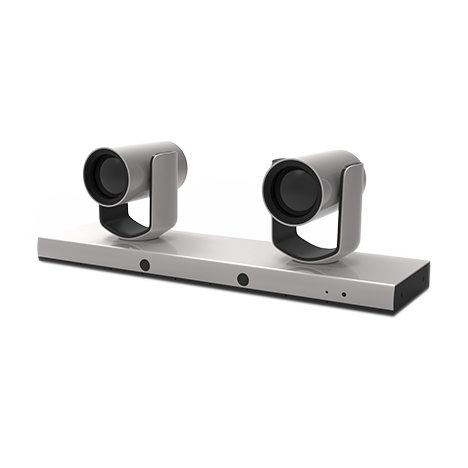

Ismart Speaker Tracking Camera AMC-G200T
Mô tả ngắn
Ismart Speaker Tracking Camera AMC-G200T
Image Sensor: 1/2.8"CMOS, 2.14MP
Zoom Optical: 12X; Digital: 12X
Field of View: 72.5°~ 6.3°
Max.Image Size: 1920 * 1080@60fps
Video Output: 1×HDMI Interface, 1×3G-SDI Interface
Hotline: 0918 642 886
AMC-G200T speaker tracking camera helps to achieve intelligent meeting experience, implemented with both audio positioning and intelligent video analysis technologies. It can automatically switch between close-up image and full-view image to frame the whole participants. It frees of camera operation during a meeting and enables meeting attendees to focus more on discussion.
Features:
- Implemented with both audio positioning, body detection and recognition technologies, it can precisely frame the speakers;
- Auto switch between close-up image and wide-angle image for whole meeting;
- Built-in seamless switch between various scenes;
- Tracking camera:1/2.8” Exmore CMOS, 2.14MP, 12X optical zoom, up to horizontal 72.5° FOV;
- Full view camera:1/2.8” Exmore CMOS, 2.14MP, up to horizontal 88° FOV;
- Simultaneously output 3G-SDI, HDMI and Ethernet, up to 1080P60 resolution;
- Support H.264/H.265 video compression
|
Model |
AMC-G200T |
|
HD Camera |
|
|
Image Sensor |
1/2.8"CMOS, 2.14MP |
|
Signal Format(SDI) |
1080P60/P50/P30/25, 1080I60/I50, 720P60/P50 |
|
Focal |
f=3.9mm ~ 46.8mm |
|
Iris |
F1.6 ~ F2.8 |
|
Zoom |
Optical: 12X; Digital: 12X |
|
Field of View |
72.5°~ 6.3° |
|
Focus |
Auto, Manual, PTZ Push, One Push |
|
Min. Illumination |
0.5lux(Color), 0.1lux(B/W) |
|
Shutter Speed |
1/1 ~ 1/10,000s |
|
AGC |
Auto / Manual |
|
White Balance |
Auto, Indoor, Outdoor, One Push, Manual, Auto Track |
|
AE Control |
Auto, Manual, Shutter Priority, Iris Priority |
|
S / N |
≥50dB |
|
DNR |
2D / 3D |
|
BLC |
Yes |
|
Full View Camera |
|
|
Image Sensor |
1/2.8” CMOS, 2.14MP |
|
Lens |
Manual focus |
|
Focal |
2.4mm |
|
FOV |
Horizontal 88°, Vertical 52° |
|
PTZ |
|
|
Pan Range |
-90°~ +90° |
|
Tilt Range |
-30°~ +90° |
|
Pan Speed |
0.2° ~ 100°/s |
|
Tilt Speed |
0.2° ~ 100°/s |
|
Presets Number |
64 |
|
OSD |
Yes |
|
Network |
|
|
Max.Image Size |
1920 * 1080@60fps |
|
Video Compression |
H.265, H.264 |
|
Audio Compression |
AAC |
|
Protocol |
HTTP, RTMP, RTSP, RTP, TCP, UDP, ONVIF |
|
Dual Stream |
Yes |
|
Interface |
|
|
Video Output |
1×HDMI Interface, 1×3G-SDI Interface |
|
Audio Input |
2×LINE IN, including one channel with EC |
|
Audio Output |
1×LINE OUT |
|
Network Interface |
100M RJ45 |
|
USB Interface |
1×USB2.0 |
|
Control Interface |
1×RS-232 |
|
General |
|
|
Control Protocol |
VISCA |
|
Address |
1-6 |
|
Power Supply |
DC12V |
|
Power Consumption |
＜24W |
|
Working Temp |
0°C ~ +40°C |
|
Storage Temp |
-20°C ~ +60°C |
|
Dimension |
500mm x 137mm x 164mm |
|
Weight |
3.38kg |
