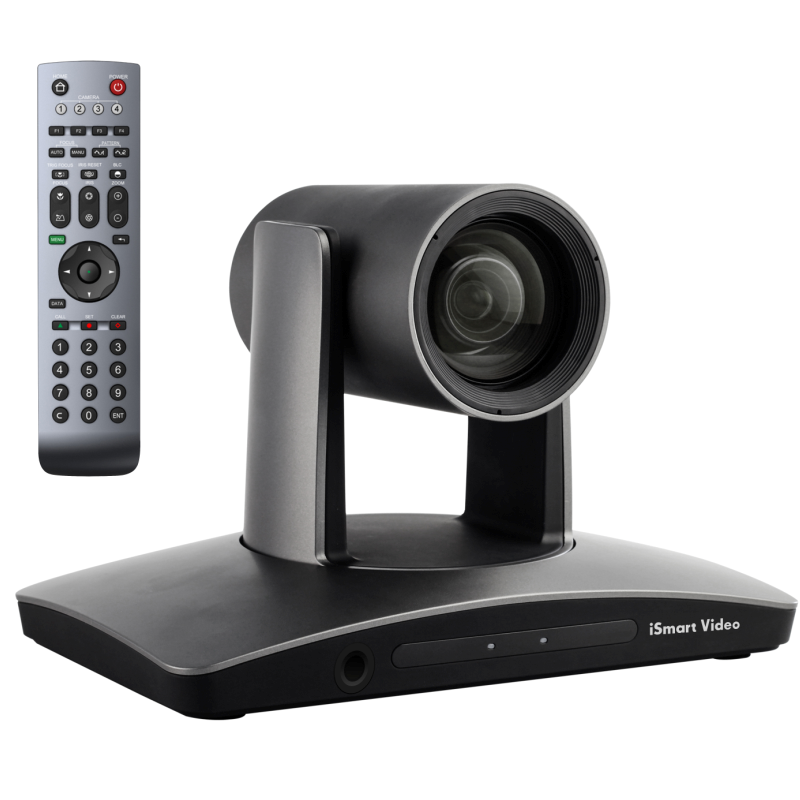

Ismart RoomTracker VC Tracking Camera AMC-E200TV2
Mô tả ngắn
Ismart RoomTracker VC Tracking Camera AMC-E200TV2
Image Sensor: 1/2.8" Exmor CMOS, 2.14MP
Max. Resolution: 1080P60
Zoom Optical: 12X; Digital: 12X
Field of View: Horizontal 72.5°~ 6.3°
Video Interface: 3G-SDI/DVI-D/USB2.0
Hotline: 0918 642 886
The camera adopts the most advanced tracking technology, it can detect meeting participants non-stop and then automatically frame all the participants.
With its stability, easy-to-use and excellent performance, it is widely used in video conferencing rooms, and huddle rooms etc.
Features:
- Advanced tracking technology. Getting perfect shot automatically with suitable P/T degree and zoom times, as per the attendee number and position;
- The distance between attendees and camera not more than 8 meters;
- Integrated wide-angle full-view camera;
- Max 1080P60 output;

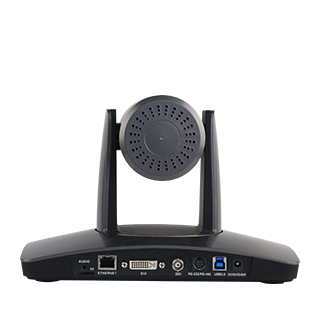

- Support SDI, DVI-D, RJ45 and USB 2.0 outputs;
- H.264 video compression;
- IR remote and RS-232/RS-485 control;
- User-friendly interface and easy setup.
|
Model |
AMC-E200TV2 |
|
Tracking Camera |
|
|
Image Sensor |
1/2.8" Exmor CMOS, 2.14MP |
|
Resolution |
1080P60/P50/P30/P25，1080I60/I50，720P60/P50 |
|
Zoom |
Optical: 12X; Digital: 12X |
|
Lens |
f=3.9mm ~ 46.8mm; F1.6 ~ F2.8 |
|
Field of View |
Horizontal 72.5°~ 6.3° |
|
Focus |
Auto/Manual/PTZ Trigger AF/One Push |
|
Min. Illumination |
0.5lux(Color) |
|
Shutter Speed |
1/1 ~ 1/10,000s |
|
AGC |
Auto/Manual |
|
White Balance |
Auto/Indoor/Outdoor/One Push/Manual/Automatic Tracking |
|
AE Control |
Auto/Manual/Shutter Priority/Iris Priority |
|
OSD |
English |
|
S/N Ratio |
≥50dB |
|
Full View Camera |
|
|
Image Sensor |
1/2.8" CMOS |
|
Effective Pixel |
2.14MP |
|
White Balance |
Auto |
|
Exposure |
Auto |
|
Field of View |
Horizontal: 86°; Vertical: 52° |
|
Lens |
2.4mm |
|
Pan & Tilt |
|
|
Pan Range |
-170°~ +170°/s |
|
Tilt Range |
-30°~ +90°/s |
|
Pan Speed |
0.1° ~ 120°/s |
|
Tilt Speed |
0.1° ~ 90°/s |
|
Presets Number |
256 |
|
Control Interface |
RS-232/RS-485/USB3.0 |
|
Ethernet |
RJ45, 100M |
|
Control Protocol |
PELCO-D/VISCA/UVC1.0-1.5 |
|
Video Interface |
3G-SDI/DVI-D/USB2.0 |
|
Network |
|
|
Image Resolution |
1920 * 1080@60fps |
|
Video Compression |
H.264/H.265 |
|
Audio Compression |
AAC |
|
Protocol |
RTMP/RTSP/TCP/UDP/ONVIF/HTTP |
|
Local Storage |
TF card, max 64GB |
|
Dual Stream |
Support |
|
General |
|
|
Power |
DC12V,optional POE |
|
Working Temperature |
0°C ~ +40°C |
|
Storage Temperature |
-20°C ~ +60°C |
|
Dimension |
243mm x 145mm x 163mm |
|
Body Colour |
Grey |
