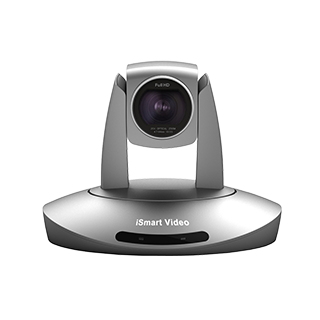

Ismart HD PTZ Camera HMC
Mô tả ngắn
Ismart HD PTZ Camera HMC
1/2.8" EXMOR CMOS image sensor, up to 2.14MP
20x/30x optical zoom, 12x digital zoom
Up to 63.7°FOV
Video interfaces: DVI-I (for DVI-D, HDMI, YPbPr, VGA, 5-BNC etc), 3G-SDI;
Hotline: 0918 642 886
Features:
- 1/2.8" EXMOR CMOS image sensor, up to 2.14MP;
- 20x/30x optical zoom, 12x digital zoom, up to 63.7°FOV;
- 30x model provides 1080i59.94 & 1080i29.97 resolutions;
- Simultaneously outputs of HD and SD videos;
- Video interfaces: DVI-I (for DVI-D, HDMI, YPbPr, VGA, 5-BNC etc), 3G-SDI;
- Control: RS-232IN, RS-232OUT, RS-422/RS-485 etc;
- Image flip function for stand and suspended installations;
- Support VISCA & protocols, daisy chain;
- New design of PTZ mechanism with higher precision and reliability;
- With IR remote controller.
|
Model |
HMC-A2001 |
HMC-S3003 |
|
Camera |
||
|
Image Sensor |
1/2.8" Exmor CMOS, 2.14MP |
|
|
Video Format |
1080P60/50/30/25,1080i60/50,720P60/50, 720P30/25 |
1080P60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720P60/59.94/50/30/29.97/25 |
|
Focal Length |
f=4.7mm ~ 94.0mm |
f=4.3mm ~ 129.0mm |
|
Iris |
F1.6 ~ F3.5 |
F1.6 ~ F4.7 |
|
Optical Zoom |
20X |
Sony 30X |
|
Digital Zoom |
12X |
|
|
FOV |
Horizontal 59.5° ~ 2.9° |
Horizontal 63.7° ~ 2.3° |
|
Focus |
Auto, Manual, PTZ Trigger AF, One Push |
|
|
Shutter Speed |
1/1 ~ 1/10,000s |
|
|
AGC |
Auto/Manual |
|
|
White Balance |
Auto, Manual, Indoor, Outdoor, One Push, Auto Track |
|
|
AE Control |
Auto, Manual, Shutter Priority, Iris Priority |
|
|
SN Ratio |
≥50dB |
|
|
BLC |
Yes |
|
|
WDR |
Yes |
|
|
PTZ |
||
|
Pan |
-170° ~ +170°, 0.1° ~ 120°/S |
|
|
Tilt |
-30° ~ +90°, 0.1° ~ 90°/S |
|
|
Preset Number |
256 |
|
|
OSD |
Yes |
|
|
Image Flip |
Yes |
|
|
Interface |
||
|
Video Output(HD) |
3G-SDI, DVI-I |
|
|
Video Output(SD) |
CVBS |
|
|
Control Interface |
RS-232IN, RS-232OUT, RS-422/RS-485 |
|
|
General |
||
|
Control Protocol |
VISCA and Support Daisy Chain, PELCO-P, PELCO-D |
|
|
Address |
0-63 |
|
|
Power Supply |
DC12V |
|
|
Power Consumption |
<20W |
|
|
Working Temperature |
0°C ~ +40°C |
|
|
Storage Temperature |
-20°C ~ +60°C |
|
|
Dimension (L x W x H) |
220mm x 202mm x 162mm |
|
|
Weight |
1.7kg |
|
