Ismart Auto Framing PTZ Camera AMC-E200TV4
Mô tả ngắn

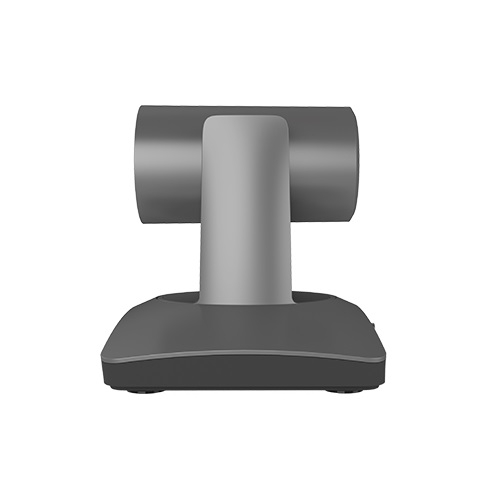

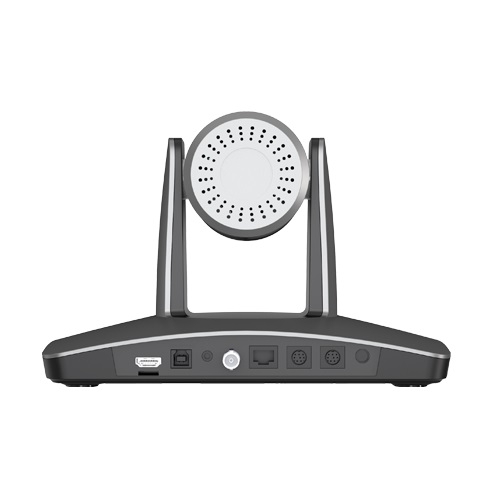

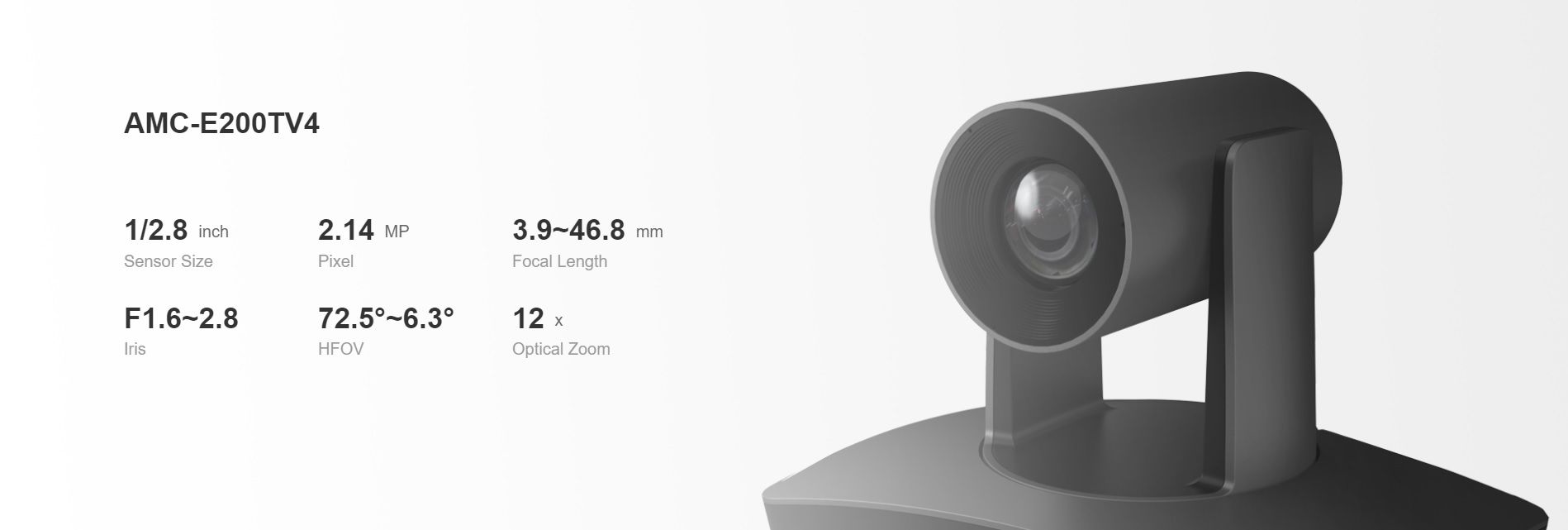

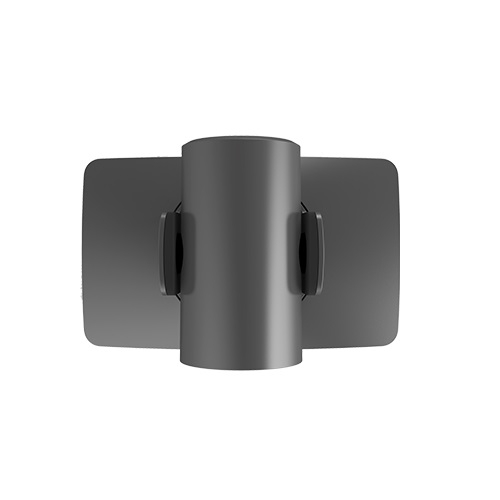

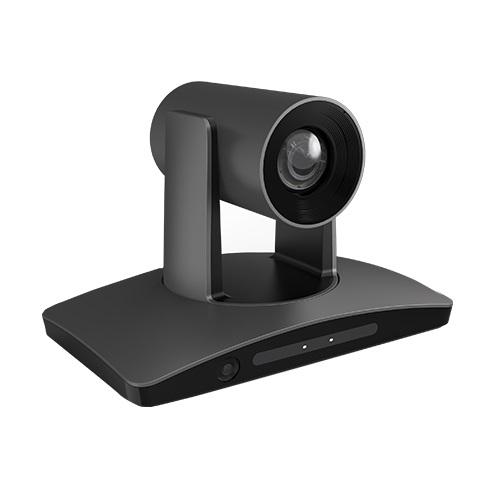

Ismart Auto Framing PTZ Camera AMC-E200TV4
Max 1080P60 output;
Support SDI, HDMI, RJ45 and USB 3.0 outputs;
Image Sensor: 1/2.8" CMOS, 2.14MP
Optical Zoom: 12X, Digital Zoom: 8X
FOV Horizontal: 72.5° - 6.3°
Hotline: 0918 642 886
All-In-One Tracking Solution
The Camera has dual lens: small HD wide angle lens detects conference attendee(s), it covers a horizontal FOV of 88 degree; its big tracking camera frames the appropriate position based on numbers of attendee(s), it has 12x optical zoom. The Camera itself does everything, free of manpower or any additional equipment, it is easy enough to install and manage.
Non-Stop Detect And Precisely Track
The Camera keeps constantly detecting attendee(s) in the conference room, then automatically pan tilt zoom to the appropriate positions to frame all attendee(s); once the number of attendee(s) changes, the camera will adjust framing positions accordingly.
Features:
- Max 1080P60 output;
- Support SDI, HDMI, RJ45 and USB 3.0 outputs;
- H.264 video compression;
- IR remote and RS-232, RS-485 control;
- User-friendly interface and easy setup
|
Model |
AMC-E200TV4 |
|
Camera |
|
|
Image Sensor |
1/2.8" CMOS, 2.14MP |
|
IRIS |
F1.6 - F2.8 |
|
Focal Length |
f=3.9mm - 46.8mm |
|
Optical Zoom |
12X |
|
Digital Zoom |
8X |
|
FOV |
Horizontal 72.5° - 6.3° |
|
Focus |
Auto, Manual, PTZ Trigger, One Push Trigger |
|
Exposure |
Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority |
|
Shutter Speed |
1/1 ~ 1/10,000s |
|
AGC |
Auto, Manual |
|
White Balance |
Auto, Indoor, Outdoor, One Push, Manual, Auto Tracking |
|
SN Ratio |
≥50dB |
|
Full View Camera |
|
|
Image Sensor |
1/2.8" CMOS, 2.14MP |
|
Focal |
2.4mm |
|
Lens |
Manual Fixed Focus |
|
Exposure |
Auto |
|
White Balance |
Auto |
|
FOV |
Horizontal: 88°, Vertical: 54° |
|
PTZ |
|
|
Pan |
-170°～+170°, 0.1°～120°/s |
|
Tilt |
-30°～+90°, 0.1°～90°/s |
|
Preset Number |
64 |
|
Control Interface |
RS-232 In, RS-232 Out |
|
Protocol |
PELCO-D, VISCA, UVC1.1 |
|
HD Video |
|
|
Video Output |
3G-SDI, HDMI, USB3.0 |
|
Video Format |
1080P60/P50/P30/P25/P59.94/P29.97, 720P60/P50/P59.94 |
|
Network |
|
|
Network Interface |
10M/100M RJ45, POE(Optional) |
|
Max Image Size |
1080P60 |
|
Image Compression |
H.264/H.265 |
|
Audio Compression |
AAC |
|
Protocols |
ONVIF, RTSP, RTMP, NDI, SRT |
|
Dual Stream |
Support |
|
General |
|
|
Power Supply |
DC12V |
|
Power Consumption |
<15W |
|
Operating Environment |
Temperature: 0°C ~ +40°C, Relative Humidity: 10%RH ~ 90 %RH |
|
Storage Environment |
Temperature: -20℃ ~ +60°C, Relative Humidity: 10%RH ~ 95 %RH |
|
Dimensions(L×W×H) |
243mm×157mm×163mm |
