Ismart Auto Framing 4K USB Camera MZC-F22UV5
Mô tả ngắn

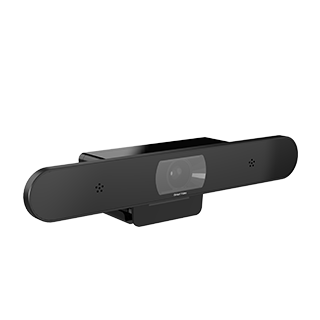

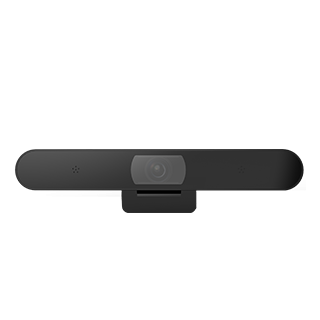

Ismart Auto Framing 4K USB Camera MZC-F22UV5
Ismart Auto Framing 4K USB Camera
Image Sensor: 1/2.8"CMOS, 8.46MP
Field of View: Diagonal:120°, Horizontal:110°, Vertical:87°
Interface: 1 x USB 3.0 Type-C
Hotline: 0918 642 886
Features:
- Precise and smooth auto framing brings excellent conference experience;
- Support electronic PTZ;
- Support manual image adjustment.
- Advanced high quality 4K CMOS, up to 4KP30 video resolution;
- 4K lens with HFOV up to 110°, no distortion;
- Support YUY2, NV12 and MJPG, H.264, H.265 video formats.
- Standard USB3.0 type-C interface;
- Built-in MIC for audio pick-up;
- Support standard UVC/UAC protocols.
|
Model |
MZC-F22UV5 |
|
HD Camera |
|
|
Image Sensor |
1/2.8"CMOS, 8.46MP |
|
Video Format |
YUY2,NV12： 1920x1080P30, 1280x720P30, 640x360P30 1920x1080P25, 1280x720P25, 640x360P25 MJPG, H264, H265： 3840x2160P30, 1920x1080P30, 1280x720P30, 640x360P30 3840x2160P25, 1920x1080P25, 1280x720P25, 640x360P25 |
|
Focal |
2.1mm |
|
Iris |
F2.2 |
|
Field of View |
Diagonal:120°, Horizontal:110°, Vertical:87° |
|
White Balance |
Auto |
|
Auto Framing |
Support |
|
S / N |
≥50dB |
|
AGC |
Auto, Manual |
|
PTZ |
|
|
EPTZ |
Support |
|
Audio |
|
|
Audio Input |
Built-in dual MIC |
|
Voice Pick-Up Radius |
5m |
|
Interface |
|
|
Control Interface |
1 x USB 3.0 Type-C |
|
UVC Protocol |
UVC1.0 |
|
UVC PTZ Control |
Support |
|
UAC |
Support |
|
Operating System |
Windows 7/8/10, Mac OS, Android OS, Lin |
|
Workable With VC Software |
Zoom, Skype, Google Meets, Teams, WebEx |
|
General |
|
|
Power Supply |
DC 5V |
|
Power Consumption |
＜2.5W |
|
Work Temp |
0°C ~ + 40°C |
|
Storage Temp |
-20°C ~ +60°C |
|
Dimension（D×W×H） |
210 mm x 74mm x 48mm |
|
Weight |
≤0.3KG |
|
Color |
Black |
