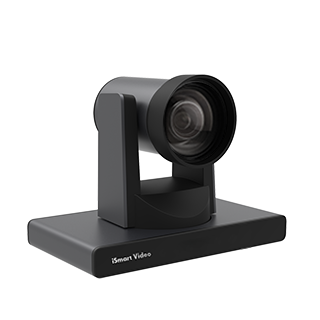

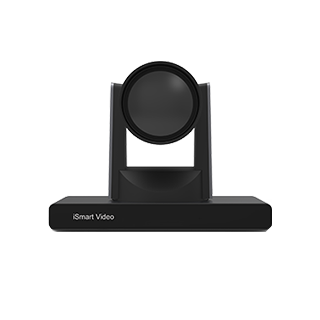

Ismart 4K PTZ Camera AMC-H1202
Mô tả ngắn
Ismart 4K PTZ Camera AMC-H1202
Image Sensor: 1/1.8”CMOS, 8.41MP
Zoom Optical: 12X, Digital: 12X
Field of View: 82.6°~8°
Max Image Size: 3840x2160@30fps
Video Output: HDMI, 3G-SDI, HDBaseT(optional)
Hotline: 0918 642 886
Features:
- Outputs 4K uncompressed digital video, up to 3840 x 2160@30fps resolution;
- 4K wide angle lens, 12x optical zoom, maximum 82° FOV；
- Advanced 2D/3D noise reduction algorithm, excellent noise reduction performance；
- Built-in different video analysis algorithm to fit different applications;
- H.265, H.264 video compression；
- HDMI, 3G-SDI, Ethernet and optional HDBaseT outputs；
- Dual stream, supports multi-level image quality configuration；
- 1 audio input and 1 audio output；
- Special mechanical PTZ driving system, ensure precise positioning;
- Has multi control interfaces, support multi control protocols, daisy chain;
- Has an OLED screen to display necessary information；
- Smart AE feature to effectively avoid interference of complicated lights.
|
Model |
AMC-H1202 |
|
Camera |
|
|
Image Sensor |
1/1.8”CMOS, 8.41MP |
|
Focal |
f=4.2mm~50.4mm |
|
Iris |
F1.8~F2.8 |
|
Zoom |
Optical: 12X, Digital: 12X |
|
Field of View |
82.6°~8° |
|
Focus |
Auto, Manual, PTZ Push, One Push |
|
Shutter Speed |
1/25~1/10,000s |
|
AGC |
Auto, Manual |
|
White Balance |
Auto, Indoor, Outdoor, One Push, Auto Track |
|
AE Control |
Auto, Manual, Shutter Priority, Iris Priority |
|
SN Ratio |
≥50dB |
|
DNR |
2D/3D |
|
BLC |
Yes |
|
WDR |
Yes |
|
PTZ |
|
|
Pan |
-170°~+170°, 0.1°~120°/ S |
|
Tilt |
-30°~+90°, 0.1°~80°/ S |
|
Preset Number |
256 |
|
OSD |
Yes |
|
Video Format |
|
|
Video Output |
4KP30/25, 1080P60/50/30/25, 1080I60/50, 720P60/50 |
|
Network |
|
|
Max Image Size |
3840x2160@30fps |
|
Video Compression |
H.265/H.264 |
|
Audio Compression |
AAC |
|
Protocol |
HTTP, TCP, UDP, RTSP, RTMP, ONVIF |
|
Dual Stream |
Support |
|
Interface |
|
|
Video Outpu |
HDMI, 3G-SDI, HDBaseT(optional) |
|
Audio Input |
1xLINE IN |
|
Network Interface |
10M/100/1000M, POE(optional) |
|
USB Interface |
1xUSB3.0(Reserved) |
|
Comm Interface |
RS-232 IN, RS-232 OUT, RS-485 |
|
General |
|
|
Control Protocol |
VISCA and Support Daisy Chain, PELCO-P, PELCO-D |
|
Power Supply |
DC12V |
|
Power Consumption |
<20W |
|
Working Temperature |
0°C ~ + 40°C |
|
Storage Temperature |
-20°C ~ +60°C |
|
Dimension(LxWxH) |
248 mm x145 mm x194mm |
|
Weight |
2.2KG |
