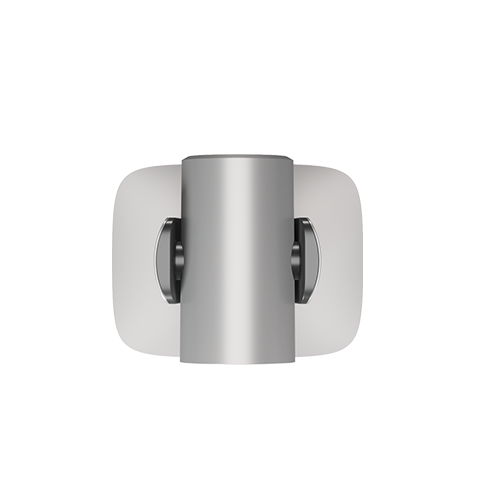

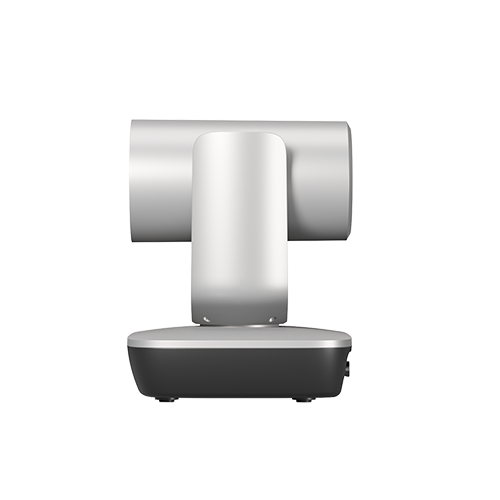

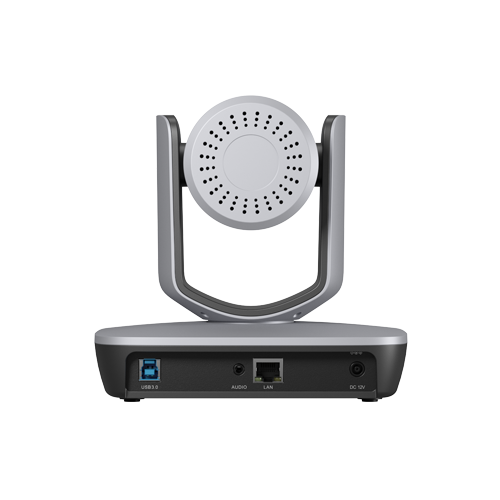

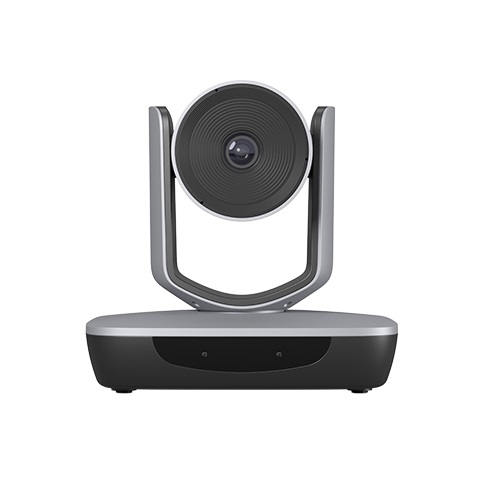

Ismart 4K PTZ Camera AMC-G303
Mô tả ngắn
Ismart 4K PTZ Camera AMC-G303
1/2.8" CMOS, 8.46MP;
3X optical zoom, up to horizontal 81°FOV;
6X lossless zoom at 1080P30 resolution;
USB 3.0 support 4K video output;
Hotline: 0918 642 886
AMC-G303 USB3.0 PTZ Camera adopts 1/2.8” inch 8.46MP CMOS image sensor with resolution up to 4KP20, clearly displaying any image details, outputti smooth video without delay.
With 3X optical zoom and 5X digital zoom to easily meet the requirements of close-up and panorama views in various meeting scenes.
Suitable for most streaming scenes, wide viewing angle high quality lens with High precision PTZ to meet your streaming needs.
Close-up or panorama views can be switched at any time to improve the efficiency of the meeting.
Features:
- 1/2.8" CMOS, 8.46MP;
- 3X optical zoom, up to horizontal 81°FOV;
- 6X lossless zoom at 1080P30 resolution;
- USB 3.0 support 4K video output;
- Support standard UVC/UAC protocol;
- Ethernet support H.265, H.264 video compression, up to 4K video output;
- Ethernet and USB 3.0 outputs;
- Dual stream;
- Support Two power supply modes; support POE;
- NDI|HX optional.
|
Model |
AMC-G303 |
|
Camera |
|
|
Image Sensor |
1/2.8'' CMOS, 8.46MP |
|
Lens |
3X; f=3.3mm~9.7mm; F2~F3.7 |
|
HFOV |
81.4°~31.3° |
|
Digital Zoom |
5X |
|
Focusing System |
Auto/Manual |
|
Shutter speed |
1/50~1/10,000s |
|
Gain |
Auto, Manual |
|
White Balance |
Auto, Manual, Auto tracking, One Push, Static Color Temperature |
|
BLC |
Support |
|
Wide Dynamic |
Support |
|
Exposure |
Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority |
|
SNR |
≥50dB |
|
PTZ |
|
|
Pan |
-170°~+170°; 0.1°~100°/s |
|
Tilt |
-30°~+90°; 0.1° ~ 70°/s |
|
Image Filp |
Support |
|
Preset Number |
64 |
|
Interface |
|
|
Network |
1×RJ-45:1×10M/100M 4KP20, 1080P30/P25, 720P30/P25, 480P30/P25, 360P30/P25
|
|
USB |
1×USB3.0： 1. Support UVC1.1 2. UVC Support: H.264/H.265/MJPEG, Video resolution: 4KP20, 1080P30/P25, 480P30/P25, 360P30/P25 YUY2/NV12, Video resolution: 1080P30/P25, 720P30/P25, 480P30/P25, 360P30/P25 3. UAC Audio Format PCM |
|
Audio |
1×LINE IN, 3.5mm |
|
General |
|
|
Power |
DC12V; <12W |
|
Operating Environment |
Temperature: 0°C ~ +40°C, Relative Humidity: 10%RH ~ 90%RH |
|
Storage Environment |
Temperature: -20°C ~ +60°C, Relative Humidity: 10%RH ~ 95%RH |
|
Dimensions (L*W*H) |
176mm × 137mm × 171mm |
|
Weight |
≤1.2kg |
