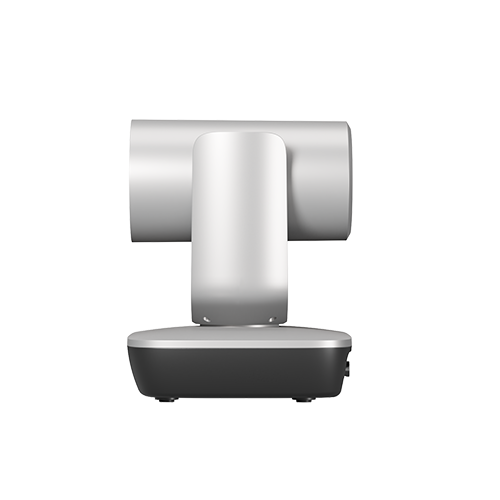

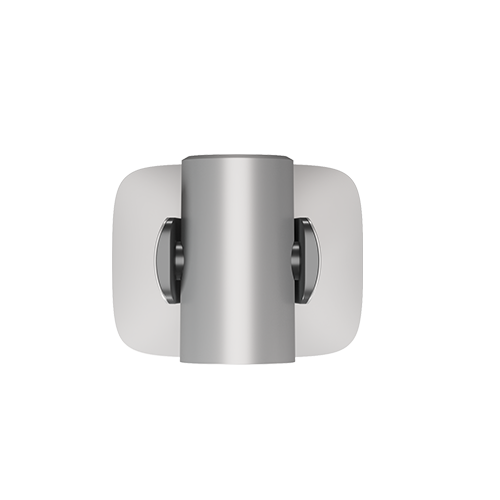

Ismart 1080P PTZ Camera AMC-G312
Mô tả ngắn
Ismart 1080P PTZ Camera AMC-G312
1/2.8" CMOS, 2.14MP;
12X optical zoom, up to 1080P60 video output;
HDMI, 3G-SDI, Ethernet and USB 3.0 outputs;
Hotline: 0918 642 886
AMC-G312 USB3.0 PTZ camera is equipped with a professional high-quality 2 million pixel CMOS image sensor and a high-performance low-power SoC professional chip platform to continuously and stably output uncompressed 1080P60 high-definite.
USB3.0 PTZ Camera adopts 1/2.8” inch 2.14MP CMOS image sensor with resolution up to 1920*1080 at 60 frames per second, clearly displaying any image details, output smooth video without delay.
With 12X optical zoom and 16X digital zoom to easily meet the requirements of close-up and panorama views in various meeting scenes.
Features:
- 1/2.8" CMOS, 2.14MP;
- 12X optical zoom, up to 1080P60 video output;
- HDMI, 3G-SDI, Ethernet and USB 3.0 outputs;
- Support standard UVC/UAC protocol;
- Support YUY2 uncompressed video formats;
- RS232 In & RS232 Out, support daisy chain;
- H.265, H.264 video compression, up to 1080P60 video output;
- Dual stream;
- Support POE.
|
Model |
AMC-G312/AMC-NG312 |
AMC-G320/AMC-NG320 |
|
Camera |
|
|
|
Image Sensor |
1/2.8'' CMOS, 2.14MP |
|
|
IRIS |
4.14mm ~ 47.08mm |
4.7mm ~ 94mm |
|
Focal Length |
F1.6 ~ F2.8 |
F1.6 ~ F3.5 |
|
HFOV |
72.5° ~ 6.3° |
59.5° ~ 2.9° |
|
Optical Zoom |
12X |
20X |
|
Digital Zoom |
16X |
|
|
Shutter Speed |
1/50 ~ 1/10,000s |
|
|
AGC |
Auto, Manual |
|
|
Focusing System |
Auto/Manual |
|
|
White Balance |
Auto, Manual, Automatic trackingOne Push, Static Color Temperature |
|
|
Gain |
Support |
|
|
WDR |
Support |
|
|
SNR |
≥50dB |
|
|
Exposure |
Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority |
|
|
PTZ |
|
|
|
Pan |
-170° ~ +170°; 0.1° ~ 120°/s |
|
|
Tilt |
-30° ~ +90°; 0.1° ~ 90°/s |
|
|
Preset Number |
256 |
|
|
Image Flip |
Support |
|
|
Interface |
|
|
|
HDMI |
1080P60/P50/P30/P25, 720P60/P50 |
|
|
Network |
1×RJ-45:1×10M/100M 1. Video Output Format: Max 1080P60; 2. Image Compression: H.264/H.265 1080P60/P50/P30/P25, 720P60/P50/P30/P25, 360P60/P50/P30/P25; 3. Protocol: ONVIF/RTSP/RTMP/TCP/UDP/RTMPS/GB28181; 4. Audio Compression: AAC 5. Support dual streams |
|
|
USB 3.0 |
1. Support UVC1.1 2. UVC Support: H.264/H.265/MJPEG: 1080P60/P50/P30/P25, 720P60/P50/P30/P25, 480P60/P50/P30/P25, 360P60/P50/P30/P25 YUY2:1080P30/P25, 720P30/P25, 480P30/P25, 360P30/P25 3. UAC Audio Format PCM |
|
|
3G-SDI |
1×3G-SDI:1080P60/P50/P30/P25, 720P60/P50 |
|
|
Control Interface |
1×RS-232 In, 1×RS-232 Out/RS-485 |
|
|
Audio |
1×LINE IN, 3.5mm |
|
|
TF Card |
Max support 256G |
|
|
General |
|
|
|
Control Protocol |
VISCA / PELCO-P / PELCO-D |
|
|
Power |
DC12V; <8W |
|
|
Operating Environment |
Temperature: 0°C ~ +40°C; Relative Humidity: 10%RH ~ 90%RH |
|
|
Storage Environment |
Temperature: -20°C ~ +60°C; Relative Humidity: 10%RH ~ 95%RH |
|
|
Dimensions (L*W*H) |
176mm × 137mm × 171mm |
|
|
Weight |
≤1.2kg |
|
