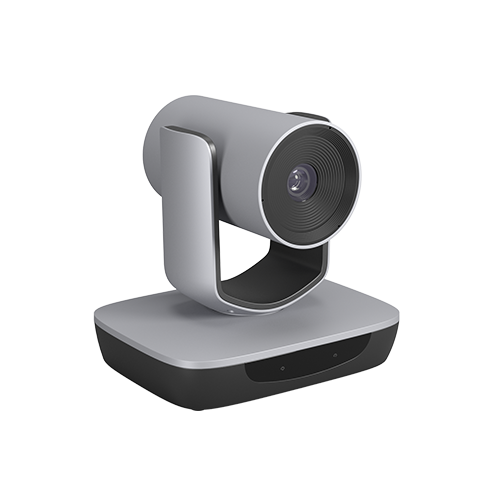

Ismart 1080P PTZ Camera AMC-G310U3
Mô tả ngắn
Ismart 1080P PTZ Camera AMC-G310U3
1/2.8” CMOS, 2.14MP excellent 1080P video quality;
10x optical zoom, 16x digital zoom;
HDMI, USB3.0 and Ethernet video outputs;
Hotline: 0918 642 886
The new AMC-G310U3 USB 3.0 PTZ camera employs the latest image technology for 1080P HD video quality, with excellent color reproduction, quick focus. It’s an ideal choice for various HD video capture applications.
USB3.0 PTZ Camera adopts 1/2.8” inch 2.14MP CMOS image sensor with resolution up to 1920*1080 at 60 frames per second, clearly displaying any image details, output smooth video without delay.
Features:
- 1/2.8" CMOS, 2.14MP;
- 10X optical zoom, up to 1080P60 video output;

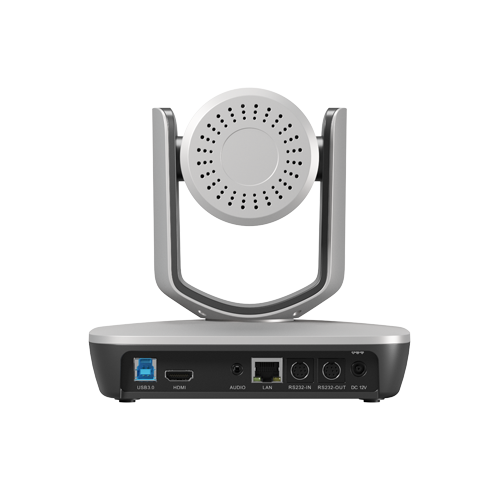

- HDMI, Ethernet and USB 3.0 outputs;
- Support standard UVC/UAC protocol;
- Support YUY2 uncompressed video formats, up to 1080P30 resolution;
- RS232 In & RS232 Out, support daisy chain;
- H.265, H.264 video compression, up to 1080P60 video output.
|
Model |
AMC-G310U3 |
|
Camera |
|
|
Image Sensor |
1/2.8” CMOS，2.14MP |
|
IRIS |
4.3mm～43mm |
|
Focal Length |
F1.6～F3.0 |
|
Field Of View |
69°～8° |
|
Optical zoom |
10x |
|
Digital Zoom |
16x |
|
Focusing System |
Auto/Manual/One Push/PTZ |
|
Min Illumination |
1.0Lux |
|
Shutter Speed |
1/50-1/10,000s |
|
Gain |
Auto, Manual |
|
White Balance |
Automatic, Manual, Automatic tracking, One Push, Static Color Temperature |
|
BLC |
Support |
|
Wide Dynamic |
Support |
|
Exposure |
Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority |
|
S/N Ratio |
≥50dB |
|
PTZ |
|
|
Pan Range |
-170°~+170° |
|
Tilt Range |
-30°~+90° |
|
Pan Speed |
0.1°~102°/s |
|
Tilt speed |
0.1°~90°/s |
|
Ceiling Mount |
Support |
|
Presets |
255 |
|
Interface |
|
|
HDMI |
1 Channel HDMI ； Video resolution:1080P60/P50/P30/P25, 720P60/P50/P30/P25, 480P60/P50/P30/P25 |
|
Network |
1×RJ-45: 1×10M/100M 1. Video Output Format: Max 1080P60 2. Image Compression:H.264/H.265 3. Protocol: ONVIF/RTSP/RTMP/SRT/TCP/UDP 4. Audio Compression: AAC 5. Support Dual streams |
|
USB |
1×USB3.0： 1. Support UVC1.1 2. UVC Support: H.264/H.265/MJPEG, Video resolution:1080P60/P50/P30/P25， 720P60/P50/P30/P25, 480P60/P50/P30/P25, 360P60/P50/P30/P25 YUY2/NV12, Video resolution:1080P30/P25, 720P30/P25, 480P30/P25, 360P30/P25 3. UAC Audio Format PCM |
|
Audio |
1×LINE In, 3.5mm |
|
Control Interface |
1×RS-232 In, 1×RS-232 Out/RS-485 |
|
Power |
DC12V |
|
General |
|
|
Control Protocol |
VISCA / PELCO-P / PELCO-D |
|
Power |
＜15W |
|
Working Temperature |
0 ~ 40°C |
|
Storage Environment |
-20℃ ~ 40°C |
|
Relative Humidity |
10%RH ~ 90 %RH |
|
Dimensions (L×W×H) |
176mm × 137mm × 171mm |
|
Weight |
≤1.2kg |
