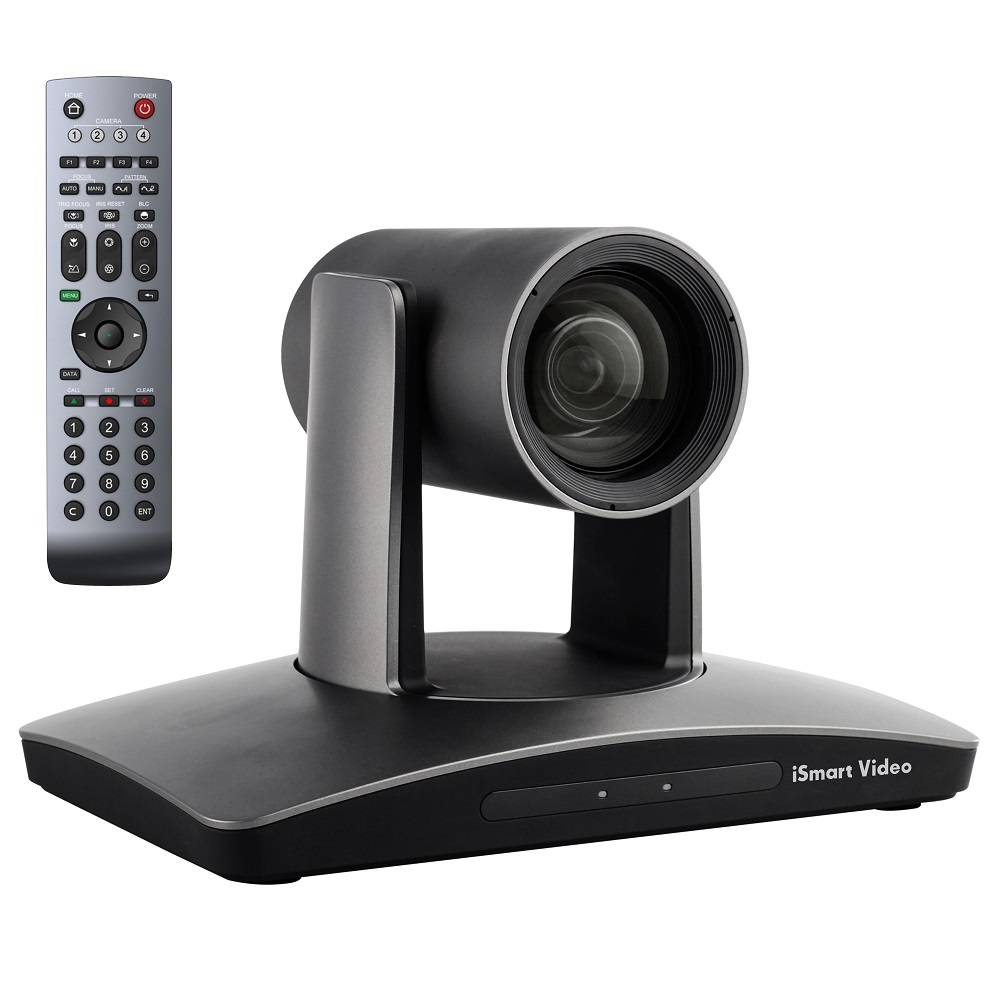

Camera Ismart USB3.0 AMC-E200U3
Mô tả ngắn
Camera Ismart AMC-E200U3:
- USB3.0 HD PTZ camera, 1/2.8” CMOS, 2.14 MP, 12x
- FOV: 72.5°~ 6.3°
- Video output: USB3.0, DVI-D
- Control interface: USB3.0, RS-232IN/ IR, RS-232OUT/ RS-485
- Support standard UVC protocol
- Protocol: VISCA, Pelco communication protocols
- 256 presets
- OSD
- Image flip, IR remote controller
-1080p60
Hotline: 0918 642 886
- Up to 72.5°FOV;
- USB3.0 interface, raw data output;
- Support standard UVC protocol;
- Up to 1080p60 HD video format;
- Up to 12x optical zoom, 12x digital zoom;
- Come with IR remote controller;
- With OSD menu, supports image flip;
- Provide an extra DVI-D video interface;
- Support standard VISCA & Pelco communication protocols;
- RS232IN/IR & RS232OUT/RS485 control interface, support daisy chain;
- Special mechanical PTZ driving system, ensure precise positioning.
Model AMC-E200U3
Image Sensor 1/2.8" CMOS, 2.14MP
Video Standard 1920x1080P/60/50/30/25/20/15/10/5
1280x720P/60/50/30/25/20/15/10/5
1024x768P/60/50/30/25/20/15/10/5
800x600P/60/50/30/25/20/15/10/5
640x480P/60/50/30/25/20/15/10/5
Focal 3.9mm - 46.8mm
Iris F1.6 - F2.8
Optical Zoom 12X
Digital Zoom 12X
Field of View 72.5°- 6.3°
Focus Auto, Manual, PTZ Trigger AF, One Push
Min. Illumination 0.5Lux(Color)，0.1Lux(B/W)
Shutter Speed 1/1 to 1/10.000s
Gain Auto/Manual
White Balance Auto, Indoor, Outdoor, One push, Manual, Automatic tracking, Sodium , Fluorescent
AE Control Auto, Manual, Shutter Priority, Iris Priority, Intelligence
BLC Yes
WDR Yes
Noise Reduction 2D/3D
Pan & Tilt
Pan Range -170°~ +170°
Tilt Range -30°~ +90°
Pan Speed 0.1°~120°/s
Tilt Speed 0.1°~80°/s
Presets Number 256
OSD Yes
Image Flip Yes
Interface
Video Output USB3.0, DVI-D
Control Interface USB3.0, RS-232IN/IR, RS-232OUT/RS-485
General
Control Protocol VISCA and Support Daisy Chain, Pelco-D, Pelco-P
Address 0~63
Power Supply DC12V
Dimension 243mm x 145mm x 163mm
Weight 1.2KG
Body Colour Grey
