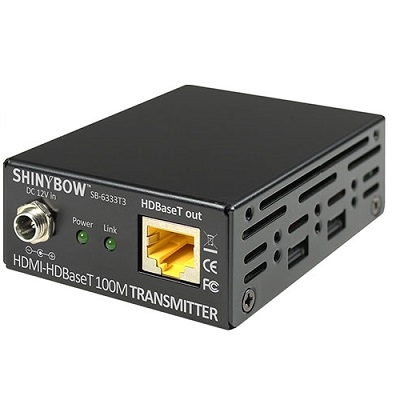

SB-6333T3
HDMI HDBaseT Transmitter (100M)
Input : 1x HDMI
Output : 1x HDBaseT
Controls : RS-232, IR (in/out)
SB-6333R3
HDMI HDBaseT Receiver (100M)
Input : 1x HDBaseT
Output : 1x HDMI
Controls : RS-232, IR (in/out)

|
1. |
HDBaseT Extend HDMI with 3D and 4Kx2K over a single UTP/STP cable up to 330ft (100M) |
|
2. |
Support HDMI 1080p@60 video V1.4a 3D and Ultra HD 4K2K video, CEC / HDCP compliant |
|
3. |
Support link speeds of up to Video, TMDS format Max. 8.1 Gbit/s, Signal 340MHz |
|
4. |
Deep Color, Full HD 1080p@60Hz@24/36/48bit/pixels |
|
5. |
Support 1080p TV’s at 24/30/60/100/120 Hz and above as well as Blu-rays at 24 FPS |
|
6. |
Support Digital Audio 7.1 LPCM 192KHz, 24bits, Full HD Dolby TrueHD and DTS-HD Master Audio uncompressed HD audio formats |
|
7. |
Transfer Bi-directional Infrared control signal together with the HDMI signal |
|
8. |
RS-232 port for firmware update or RS-232 control signal transmission |
|
9. |
Support HDMI CEC between your connected Source and display gear |
|
10. |
With LED indicators to show the POWER/LINK status |
|
11. |
Transmits HDMI video & audio, RS-232 and Bi-Directional IR |
|
12. |
Support Super Audio CD (DSD), CEC commands protocol table |
|
13. |
Mounting Ears and wall mount pack supplied |
|
14. |
Power supply using universal power switch 50/60Hz,100~240VAC |
HDMI HDBaseT Extender SB-6335T / SB-6335R
HDBaseT Extend HDMI with 3D and 4Kx2K over a single UTP/STP cable up to 330ft (100M)
Support HDMI 1080p@60 video V1.4a 3D and Ultra HD 4K2K video, CEC / HDCP compliant
Support link speeds of up to Video, TMDS format Max. 8.1 Gbit/s, Signal 340MHz
SB-6800R HDMI Over IP Receiver
Inputs : 1x Ethernet (RJ-45)
Outputs : 1x HDMI
Controls : IR, RS-232, Keys on front the panel
SB-6800T HDMI Over IP Transmitter
Inputs : 1x HDMI
Outputs : 1x Ethernet (RJ-45), 1x Preview port
Controls : IR, RS-232, Keys on front the panel
SB-6235 2Way Composite Video•Digital•Audio Transmitter
Input : 1x Composite Video or Digital Audio and
Stereo Audio (AR/AL)
Output : 2x CAT5
