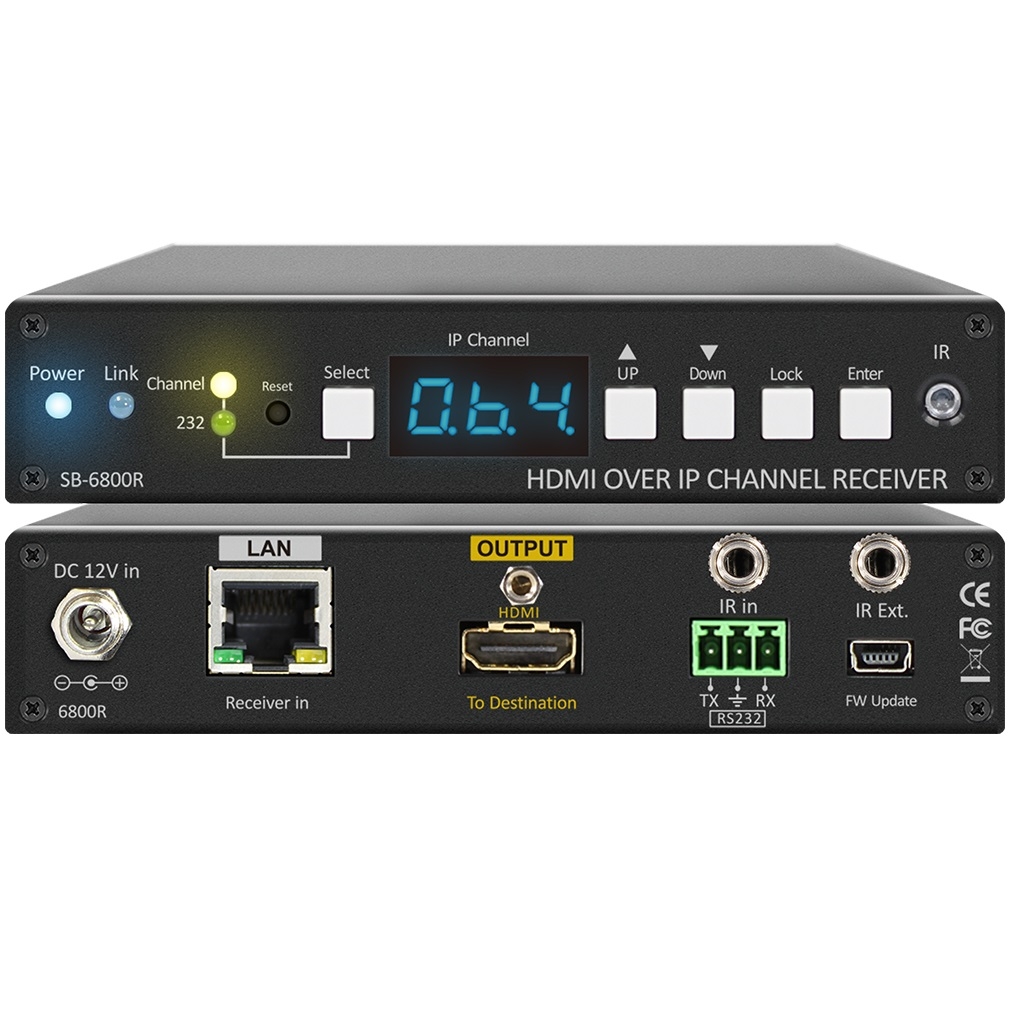

Bộ nhận tín hiệu HDMI SB-6800R
Mô tả ngắn
SB-6800R HDMI Over IP Receiver
Inputs : 1x Ethernet (RJ-45)
Outputs : 1x HDMI
Controls : IR, RS-232, Keys on front the panel
Hotline: 0918 642 886
|
1. |
Extend HDMI signal over IP (Lan HuB with IGMP function) category cable up to 100M. |
|
2. |
Simply set up the Transmitter and Recevier to the same channel and all settings are |
|
|
automatically configured |
|
3. |
Support point to point or point to multipoint configurations |
|
4. |
Support HDMI 1080p@60 video, HDCP compliant. |
|
5. |
Support link speeds of up to 148MHz |
|
6. |
Deep Color, Full HD 1080p@60Hz@24 bit pixels. |
|
7. |
Support Digital Audio 7.1 LPCM 192KHz, 24bits, Full HD Dolby TrueHD and DTS-HD Master |
|
|
Audio uncompressed HD audio formats. |
|
8. |
Support IP Transmitter (5) units to IGMP HUB. Channel 001~005. |
|
9. |
Support IP Receiver (64) units, Select TX Channel 001~064. |
|
10. |
Transfer IR and RS232 control signal together with the HDMI signal. |
|
11. |
With LED indicators to show the POWER/LINK/Transmitter Channel status. |
|
12. |
Uses a single category cable to transmit HDMI, RS-232 and IR control |
|
|
signals simultaneously. |
|
13. |
Mounting wall mount pack supplied. |
|
14. |
Power supply using universal power switch 50/60Hz,100~240VAC. |
|
1. |
Type of Extender: |
HDMI Over IP Extender |
|
2. |
Input Signals: |
HDMI |
|
3. |
Signal Supports: |
HDMI 1.3 HDMI format Standard, DVI and HDCP Compliant |
|
4. |
Video Support: |
HDMI for 1080p (1920x1080) resolution |
|
5. |
HDMI Audio I/O Supports: |
Multi Audio Formats 5.1 / 7.1, MAT(MLP), Dolby Digital, |
|
|
|
Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTS-HD, |
|
|
|
DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
|
6. |
Extend LAN Hub : |
GB Hub with IGMP function |
|
7. |
GB Hub Linkage : |
IP Transmitter x5 units & IP Receiver x 64units (500M) |
|
8. |
Cable Support: |
Category (CAT5e/6) cable |
|
9. |
Support HDMI resolutions: |
480p, 720p 1080i/1080p |
|
10. |
Controls: |
1x IR in, 1x RS232 I/O and LAN series interface |
|
11. |
Transfer distance: |
Multi Mode, up to 100M (328 ft) |
|
12. |
HDMI I/O connectors: |
HDMI Type A - SMD 19pin Female Type |
|
13. |
Safety Approvals: |
CE |
|
14. |
Dimensions (LxWxH): |
5.31" x 5.11” x 1" (135mm x 130mm x 26mm) |
|
15. |
Shipping Weight (net): |
0.4175 kgs / 0.9125 lb |
|
16. |
Power consumption : |
Max. 2000mA |
|
17. |
Power Supply: |
Power Input +12VDC, 2A (Universal Type 50/60Hz, 100~240 VAC) |
