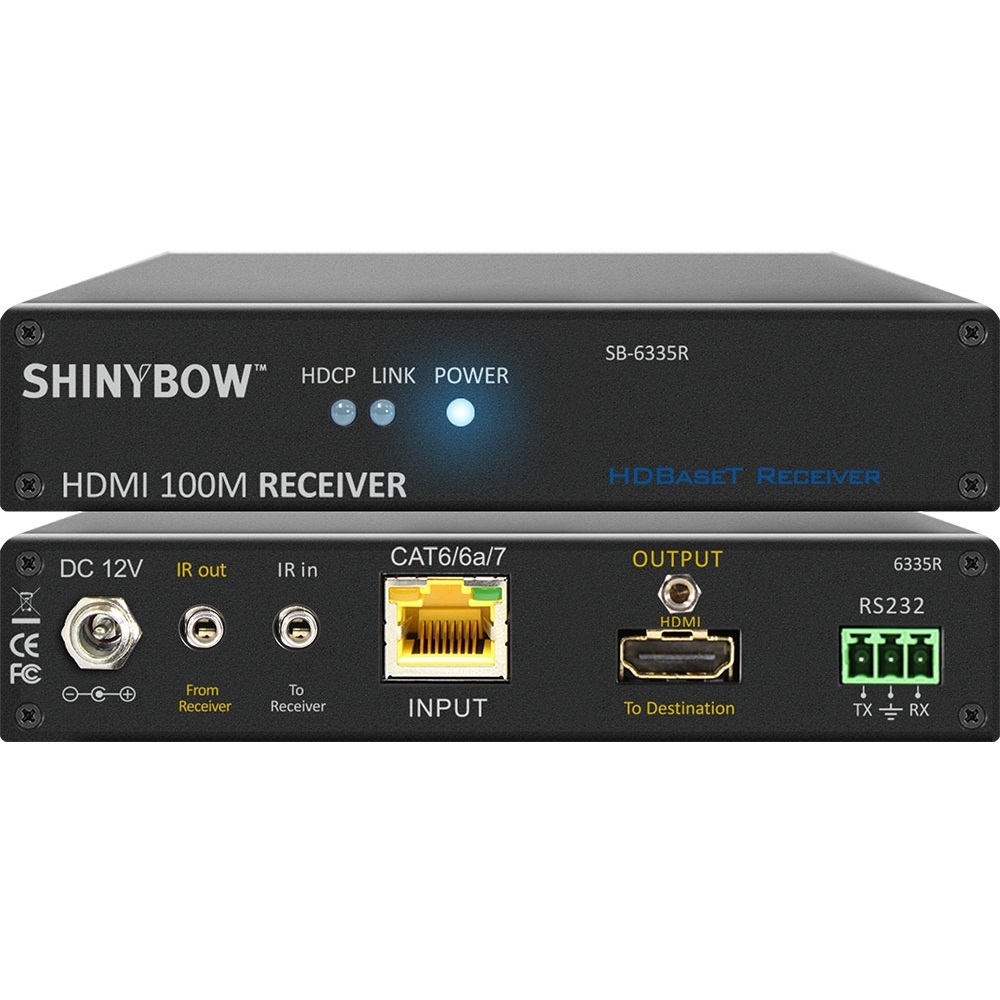

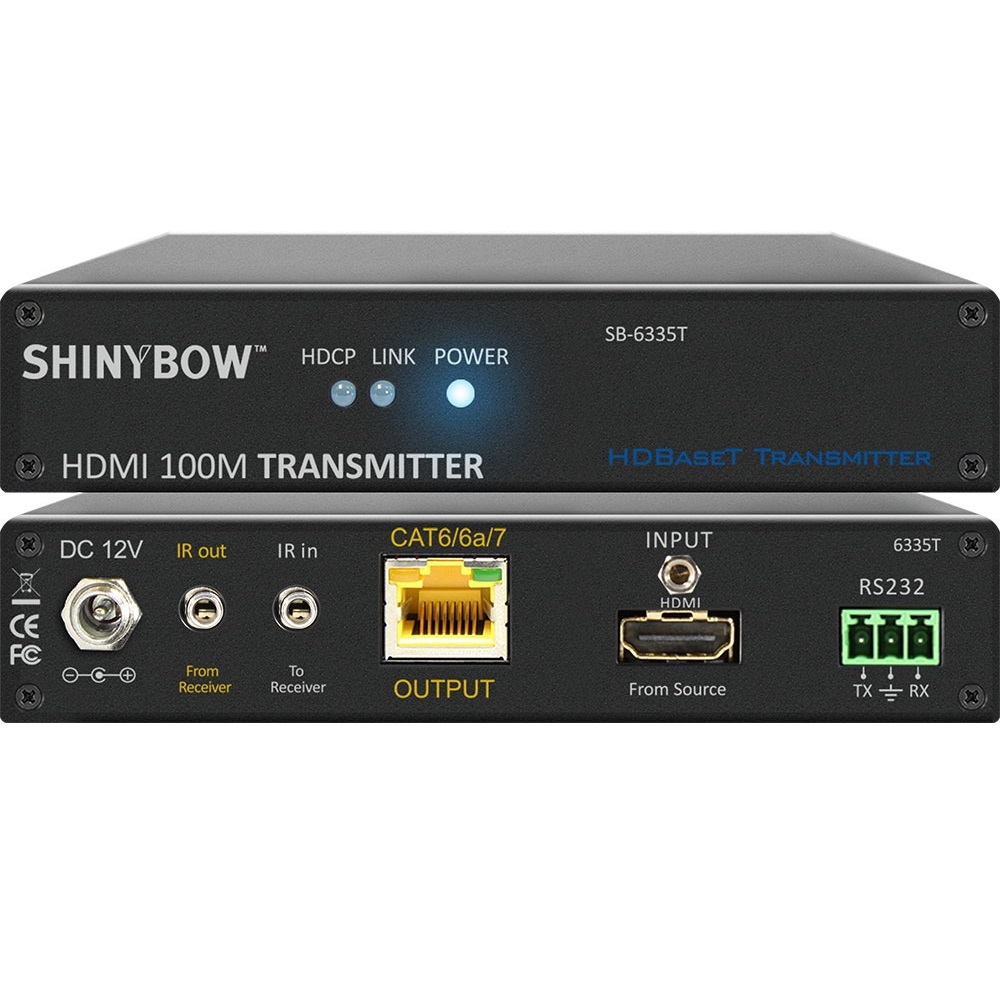

Bộ mở rộng tín hiệu HDMI-HDBT SB-6335T SB-6335R
Mô tả ngắn
HDMI HDBaseT Extender SB-6335T / SB-6335R
HDBaseT Extend HDMI with 3D and 4Kx2K over a single UTP/STP cable up to 330ft (100M)
Support HDMI 1080p@60 video V1.4a 3D and Ultra HD 4K2K video, CEC / HDCP compliant
Support link speeds of up to Video, TMDS format Max. 8.1 Gbit/s, Signal 340MHz
Hotline: 0918 642 886
Features:
- HDBaseT Extend HDMI with 3D and 4Kx2K over a single UTP/STP cable up to 330ft (100M)
- Support HDMI 1080p@60 video V1.4a 3D and Ultra HD 4K2K video, CEC / HDCP compliant
- Support link speeds of up to Video, TMDS format Max. 8.1 Gbit/s, Signal 340MHz
- Deep Color, Full HD 1080p@60Hz@24/36/48bit/pixels
- Support 1080p TV’s at 24/30/60/100/120 Hz and above as well as Blu-rays at 24 FPS
- Support Digital Audio 7.1 LPCM 192KHz, 24bits, Full HD Dolby TrueHD and DTS-HD Master Audio uncompressed HD audio formats
- Transfer Bi-directional Infrared control signal together with the HDMI signal
- RS-232 port for firmware update or RS-232 control signal transmission
- Support HDMI CEC between your connected Source and display gear
- With LED indicators to show the POWER/HDMI/HDCP/LINK status
- Transmits HDMI video & audio, RS-232 and Bi-Directional IR
- Support Super Audio CD (DSD), CEC commands protocol table
- Mounting Ears and wall mount pack supplied
- Power supply using universal power switch 50/60Hz,100~240VAC
Specifications:
|
Type of Extender |
HDBaseT Transmitter for HDMI signal over category UTP/STP Cable |
|
Input Signals |
HDMI with Digital Video(TMDS)/Audio 0.5~1.0vPP, DDC 5Vpp |
|
HDBaseT Signal Supports |
HDMI 1.4a HDMI format Standard, DVI and HDCP Compliant |
|
Video Support |
HDMI and DVI TMDS format for 1920x1200 resolution up to 8.1 Gbps (340MHz), Digital RGB 48bits/px, deep color, 3D |
|
HDMI Audio I/O Supports |
Multi Audio Formats 5.1 / 7.1, MAT(MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
|
Category Cable Support |
CAT5e, CAT6, CAT6a, CAT7 UTP/STP category Lan cable |
|
Support HDMI resolutions |
480p, 720p 1080i/1080p and Ultra HD 4K2K |
|
Scan Rate Accepted |
Support HDMI full HD Resolution; Frequency 24Hz to 120Hz |
|
Controls |
1x IR in, 1x IR out and 1x Rs232 I/O |
|
Transfer distance |
Up to 330ft (100 meters) |
|
HDMI I/O connectors |
HDMI Type A - SMD 19pin Female Type |
|
HDBaseT I/O connectors |
HDBaseT RJ-45, 8p8c Female socket |
|
Safety Approvals |
CE, FCC |
|
Dimension (WxDxH) |
5.31" x 5.11” x 1" (135mm x 130mm x 26mm) |
|
Weight |
0.4175 kg / 0.9185 lb |
|
Power consumption |
Max. 850mA |
|
Power Supply |
Power Input +12VDC, 1.25A |
