Bộ mở rộng tín hiệu HDMI SB-6225K
Mô tả ngắn

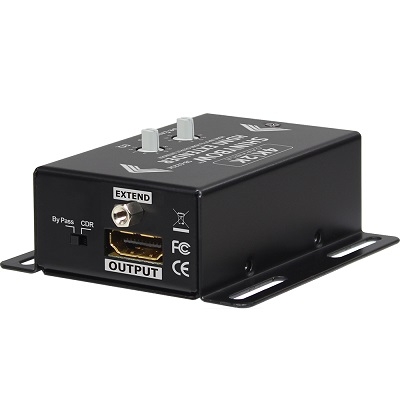

Shinybow SB-6225K HDMI 4K2K EXTENDER
Hotline: 0918 642 886
The SB-6225K is a HDMI™ extender and will extend the HDMI™ signals up to 50m. SB-6225K repeaters can be daisy chained, to create much longer HDMI™ extensions up to 50m. The SB-6225K supports the HDMI™ 1.3, 1.4a 3D version ,1080p HD resolution up to 4K2K and multi-channels digital audio for the best signal quality. Support link speed up to 6.75Gpbs. Standard installation involves using HDMI™ cable -- up to 25m long which is connected from HDMI™ source (DVD player,PS3, set-topbox) to the HDMI™ input jack on the SB-6225K. The another HDMI™ cable runs from the SB-6225K output jack to the HDTV display -- up to 25m away.
|
1. |
HDMI signal Digital Video TMDS /Audio 50M Extender |
|
2. |
HDMI digital Video/Audio and DVI format and HDCP compliant |
|
3. |
Support link speeds of up to 6.75 Gbps |
|
4. |
Support Digital RGB 36bits HDMI TMDS format deep color |
|
5. |
Support HD High Definition resolution 408p, 720p 1080i/1080p and 4K2K |
|
6. |
Support EQ and De Emphasis Management |
|
7. |
Support High quality Digital Audio format with DTS-HD Master Audio, Dolby True-HD & Dolby |
|
8. |
Long distance extend between Blu-Ray HDMI player and HDMI display |
|
9. |
Easy to install without any adjustment |
|
10. |
Surface mounting bracket included |
|
11. |
Power DC 12V input with Low power consuming |
|
Type of Extender |
HDMI signal for distance 50M Extender |
|
Signal Support |
Compliant with HDMI 1.4 standards, HDCP Compliant |
|
Support HD resolution |
DTV resolutions : 480i, 576i, 480p, 576p, 1080i , 1080p and up to 4K2K |
|
Audio Support |
DTS-HD Master Audio, Dolby True-HD & Dolby Digital Plus |
|
Safety Approval |
CE, FCC |
|
Dimension (WxDxH) |
2.65" x 2.76" x 1" (67.4mm x 70mm x 25mm) |
|
Weight |
0.15 kg / 0.33 lb |
|
Power Supply |
DC 12V /0.42A Max, Use Universal Switch Type 50/60Hz, 100~240VAC |
