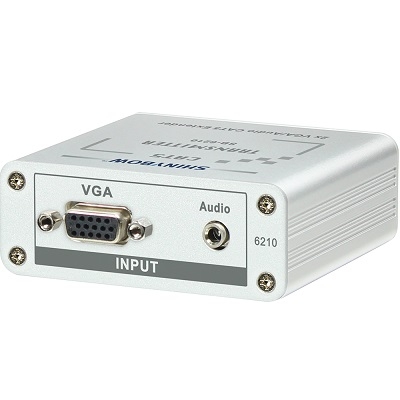

Bộ truyền tín hiệu VGA-Audio SB-6210
Mô tả ngắn
SB-6210 2Way VGA-Audio Transmitter
Input : 1x VGA / Audio
Output : 2x CAT5
Hotline: 0918 642 886
|
1. |
Support VGA-RGBHV & Stereo Audio(AR/AL), CAT5 Transmitter and Repeater + Receiver Extende |
|
2. |
Input : 1x VGA+ Audio |
|
3. |
Output : 2x CAT5 |
|
4. |
Support PC Resolution VGA(640x480) / SVGA(800x600) / XGA(1024x768) / SXGA(1280x1024) / UXGA(1600x1200) |
|
5. |
Support HDTV Resolution 480p / 720p / 1080i / 1080p |
|
6. |
Support one Loop Output port |
|
7. |
Extension distance is up to 100m(330ft) |
|
8. |
Wall mounted Ear Rack included |
|
Type of CAT5 |
Transmitter ( TX) / Repeater + Receiver (RX) |
|
Type of Signal |
VGA (RGBHV) & Stereo Audio (AR/AL) connectors |
|
Video Bandwidth |
Large Signal Bandwidth : 225Mhz, -3dB |
|
Output Balance Error |
-60dB @ 50Mhz |
|
High Isolation between Amplifier |
80dB @ 10Mh |
|
Audio- in Impedance |
10 Ohms |
|
Audio Frequency Response |
20HZ to 20KHz, +/-1db |
|
Safety Approvals |
CE, FCC, VCCI |
|
Dimension (WxDxH) |
3.07" x 2.87" x 1.15" (77. 9mm x 73mm x 29. 1mm) |
|
Power Supply |
DC 12V /1A Max |
|
Weight |
0.18 kg / 0.40 lb |
