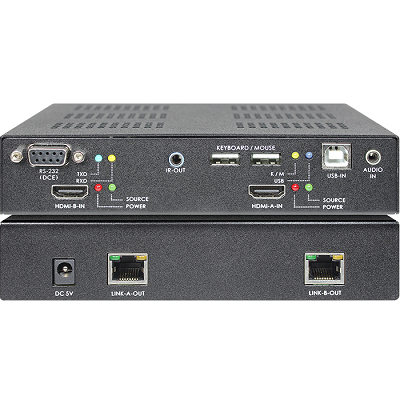

Bộ mở rộng tín hiệu HDMI-CAT6 SB-6182T-SB-6182R
Mô tả ngắn
SB-6182T DUAL-HEAD KVM with Audio CAT.6 Transmitter
Input : 2x HDMI, 1x USB, 1x Audio
Output : 2x LINK
Controls : RS-232, IR (out), 2x USB
SB-6182R DUAL-HEAD KVM with Audio CAT.6 Receiver
Input : 2x LINK
Output : 2x HDMI, 1x Audio
Controls : RS-232, IR (in), 2x USB, 2x EDID
Hotline: 0918 642 886
The SB-6182 is a high performance KVM (Keyboard, Video and Mouse) extender that allows a customer to have full console control at 170 meters (1080p resolution) remote.
The flexibility of CAT.5e/6 cables makes this easily routable and is aninexpensive method for extending a full KVM console.
It can transmit two HDMI digital video streams, USB Keyboard/Mouse, IR, RS-232 and stereo audio via two CAT.5e/6 cables.
In operation, SB-6182 is truly plug and play, capturing full EDID data from the display ensuring your hardware is always setup to deliver optimal display performance.
It is optimized for applications at industrial control, security, KVM extension.
01. Extends Dual-Head Video / Keyboard / Mouse / Audio / IR / RS-232 signals of PC via two CAT.5e/6 cables
02. Supports up to 2 HDMI (DVI-D via adapter) sources * Dual-Head Video *
03. Supports USB keyboard / mouse
04. Supports 3.5mm audio function (speaker)
05. Compatible with all major operating systems
06. The bandwidth of video and keyboard / mouse is separated so keyboard / mouse can full speed without any delay
07. Supports resolution up to 1920x1080 (HDMI) / 1920X1200 (DVI)
08. Supports transmission distance up to 140m (CAT.5e) / 170m (CAT.6)
09. EDID Copy function makes the optimal high resolution for your displays
10. Supports RS-232 (Full Duplex)
11. Supports IR (Frequency : 20~60 KHz)
12. Supports surge protection
13. Simple LED indication for easy status monitoring
14. HDMI 1.3 / HDCP compliant
15. Supports Plug & Play; Software not required
