Bộ mở rộng tín hiệu KVM-CAT.6 SB-6180T-SB-6180R

Bộ mở rộng tín hiệu KVM-CAT.6 SB-6180T-SB-6180R

Mô tả ngắn

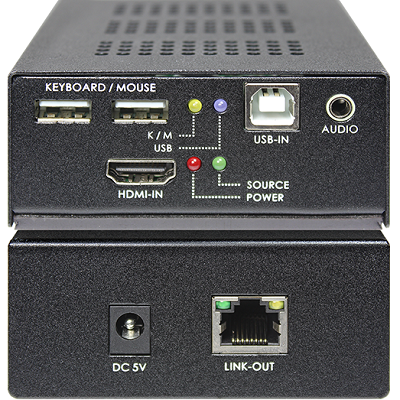

SB-6180T KVM with Audio CAT.6 Transmitter
Input : 1x USB, 1x Audio, 1x HDMI
Output : 1x LINK Controls : 2x USB

SB-6180R KVM with Audio CAT.6 Receiver
Input : 1x LINE
Output : 1x Audio, 1x HDMI, 2x LINE
Controls : 2x USB, 1x EDID

liên hệ mua hàng
Hotline: 0918 642 886

The SB-6180 is a high performance KVM (Keyboard, Video and Mouse) extender that allows a customer to have full console control at 170 meters (1080p resolution) remote. The flexibility of CAT.5e/6 cables makes this easily routable and is an inexpensive method for extending a full KVM console. It can transmits HDMI digital video stream, USB Keyboard/Mouse and stereo audio via one CAT.5e/6 cable. In operation, SLK180H is truly plug and play, capturing full EDID data from the display ensuring your hardware is always setup to deliver optimal display performance. It is optimized for applications at industrial control, security, KVM extension.



01. Extends Video / Keyboard / Mouse / Audio of PC via one CAT.5e/6 cable

02. Supports HDMI (DVI-D via adapter) source

03. Supports USB keyboard/mouse

04. Supports 3.5mm audio function (speaker)

05. Compatible with all major operating systems

06. The bandwidth of video and keyboard / mouse is separated so keyboard / mouse can full speed without any delay

07. Supports resolution up to 1920x1080 (HDMI) / 1920X1200 (DVI)

08. Supports transmission distance up to 140m (CAT.5e) / 170m (CAT.6) *One-to-One*

09. EDID Copy function makes the optimal high resolution for your displays

10. Support surge protection

11. Simple LED indication for easy status monitoring

12. HDMI 1.3 / HDCP compliant

13. Support Plug & Play; Software not required

14. Provide a magnetic pad to simplify installation

Download
