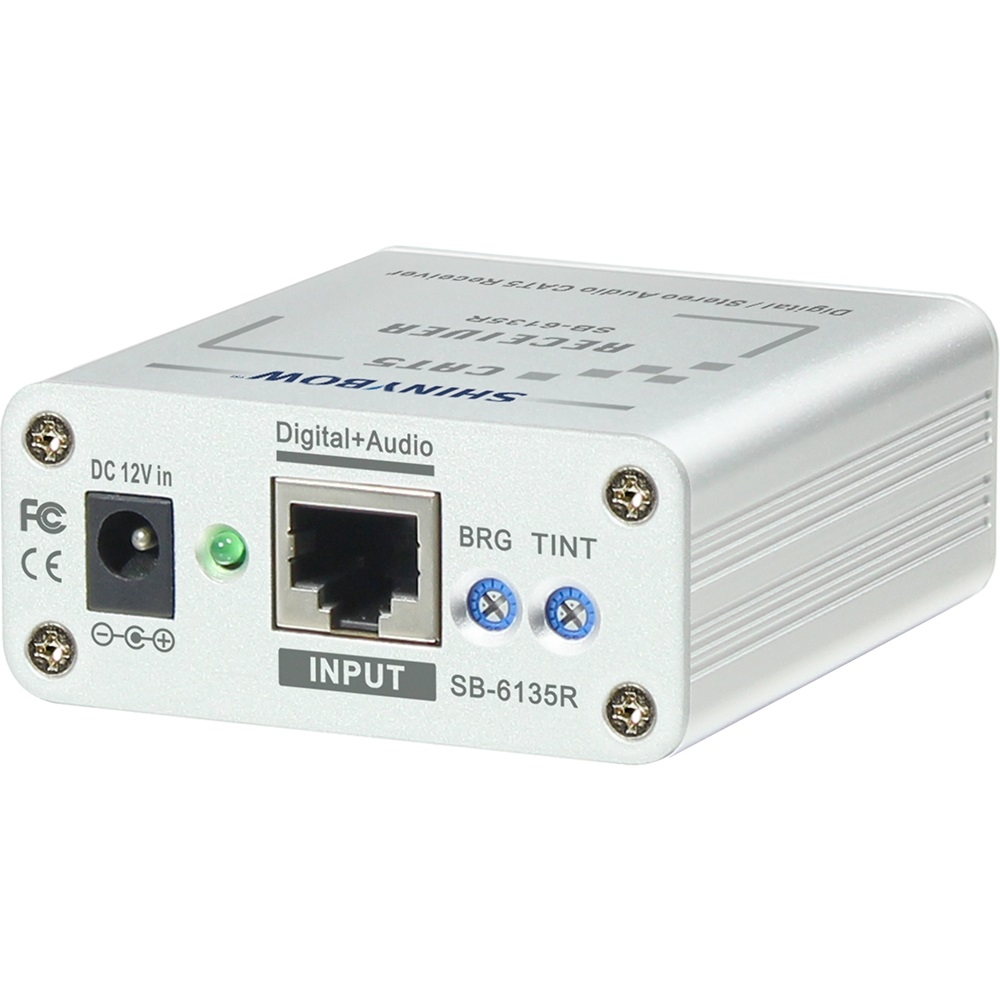

Bộ nhận tín hiệu Composite SB-6135R
Mô tả ngắn
Shinybow SB-6135R Composite Video•Digital•Audio Receiver
Input : 1x CAT5
Output : 1x Composite Video or Digital Audio and Stereo Audio (AR/AL)
Hotline: 0918 642 886
| 1. | Support Composite Video or Digital Audio(S/PDIF)/Stereo Audio over CAT5 Extension |
| 2. | Input : 1x CAT5 |
| 3. | Output : 1x Composite Video or Digital Audio and Stereo Audio |
| 4. | Support HDTV Resolution: 480p / 720p / 1080i / 1080p |
| 5. | Extending for long distance up to 100M (330ft) |
| 6. | Wall mounted Ear Rack included |
| Type of CAT5 | Transmitter (TX) / Repeater + Receiver (RX) |
| Type of Signal | Composite Video or Digital Audio (PCM) / Stereo Audio via 3x RCA connectors |
| Video Bandwidth | Large Signal Bandwidth : 225Mhz, -3dB Small Signal Bandwidth : 450Mhz, -3dB |
| Output Balance error | 60dB @ 50Mhz |
| High Isolation between Amplifier | 80dB @ 10Mhz |
| Audio- In Impedance | 10 Ohms |
| Audio Frequency Response | 20HZ to 20KHz, +/-1db |
| Safety Approvals | CE, FCC, VCCI |
| Dimension (WxDxH) | 2.87" x 2.6" x1.15" (73mm x 66mm x 29.1mm) |
| Power Supply | DC12V / 1A Use Universal Switch Type 50/60Hz, 100~240VAC |
| Weight | 0.17 kg / 0.37 lb |
