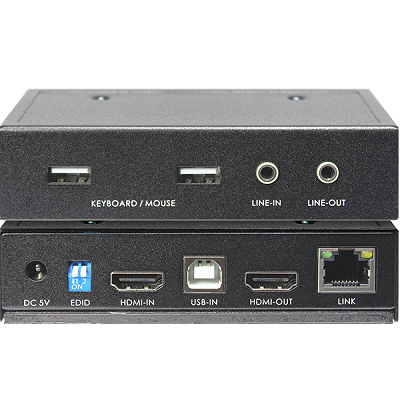

Bộ mở rộng tín hiệu KVM-CAT6 SB-6100T-SB-6100R
Mô tả ngắn
SB-6100T
KVM with Audio CAT.6 Transmitter
Input : 1x LINE, 1x HDMI, 1x USB
Output : 1x LINE, 1x HDMI, 1x LINK
Controls : 2x USB, 1x EDID
SB-6100R
KVM with Audio CAT.6 Receiver
Input : 1x LINK
Output : 1x HDMI, 1x LINE
Controls : 2x USB, 1x EQ
Hotline: 0918 642 886
The SB-6100 allows a customer to have full console control of a computer from a remote distance of up to 70 meters over one Cat.6 FTP cable.
The flexibility of Cat.6 FTP cable makes this easily routable and is an inexpensive method for extending a full KVM console - HDMI, Audio, USB.
It is optimized for applications at industrial control, security, KVM extension.
01. Extend HDMI, audio and USB keyboard/mouse signals over one Cat.6 FTP cable
02. Support USB keyboard/mouse
03. Support 3.5mm audio function
04. Supports resolutions up to 1080p ( HDTV ) and 1920x1200 ( WUXGA )
05. Transmission range up to 70 meters at 1080p resolution
06. Use Cat.6 FTP cable for best quality
07. Control PC from local and remote location
08. Support Plug & Play; Software not required
09. Support MS-DOS, Windows, FreeBSD, Linux, Unix, Novell
10. Console Receiver has video EQ adjustments for optimum image
11. Switchable EDID function for choosing EDID to display
12. Perfect for control remote machines and security monitoring systems
13. Provide a magnetic pad and attachable metal plate to simplify installation
