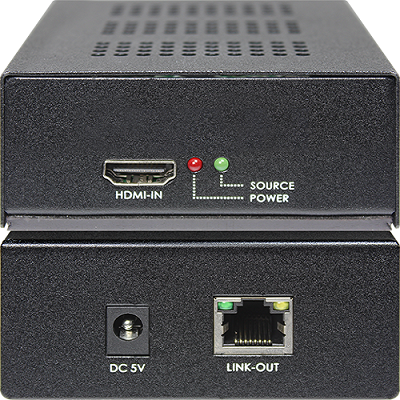

Bộ mở rộng tín hiệu HDMI-Cat.6 SB-6181T-SB-6181R

SB-6181 transmits HDMI signals via CAT5e/6 cables of resolution up to FULL HD 1080p@60Hz.

Receiver could be chainable up to 31 layers with distance 3.1KM. It can be expanded for broadcasting to over 100 displays via daisy chain.

In operation, SB-6181 is truly plug and play, capturing full EDID data from the display ensuring your hardware is always setup to deliver optimal display performance.

It is optimized for applications at public broadcasting, exhibits, retail stores, stock tickers, bus stations, etc.

01. Extends HDMI signal via one CAT.5e/6 cable

02. Supports HDMI (DVI-D via adapter) source

03. Including HE-108MT Transmitter and HE-180MR Receiver

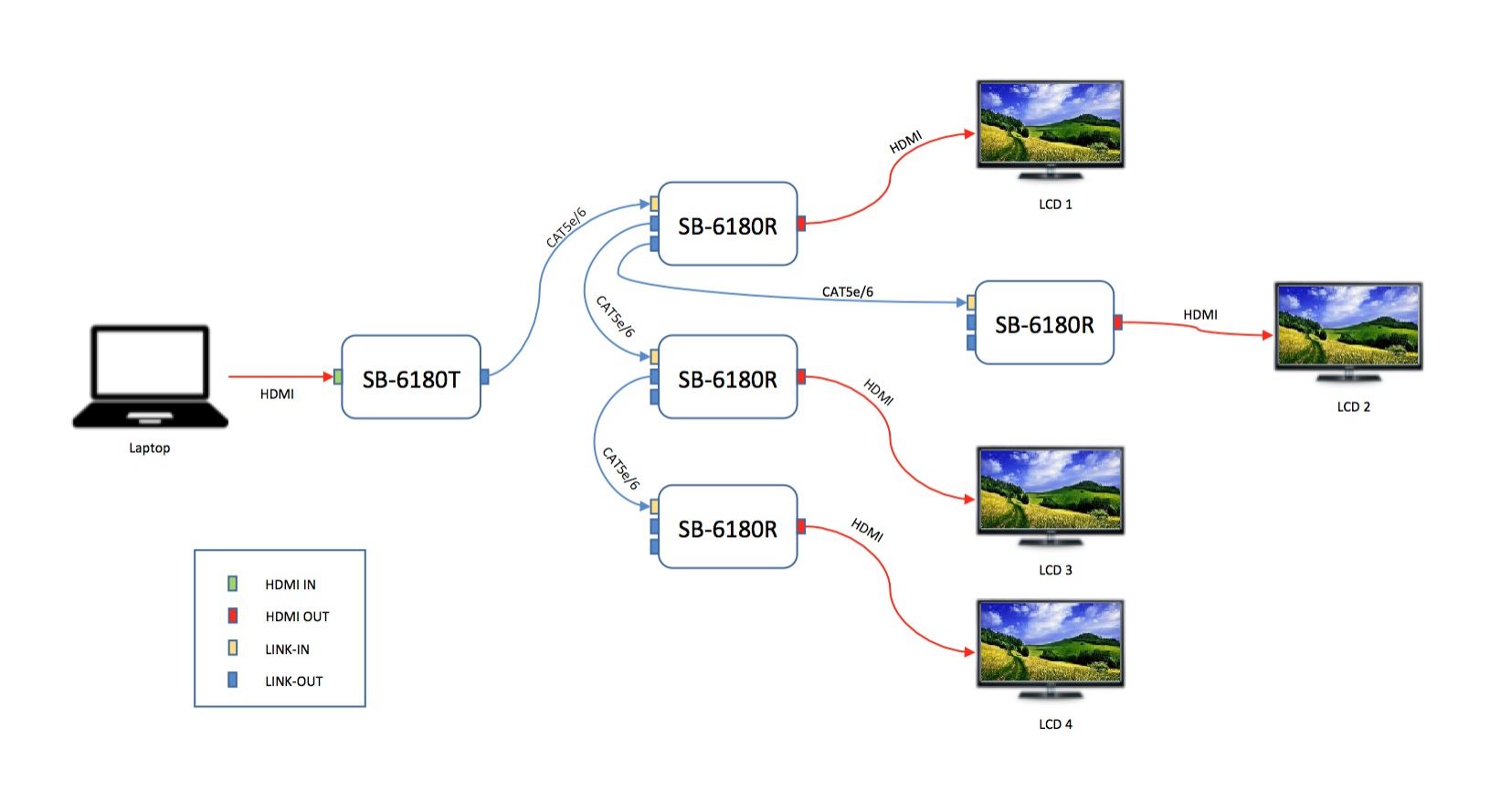

04. HE-180MR Receiver built in 2 x RJ45 output to chainable to another Receiver for extra-long range distance and multiple displays

05. HE-180MR Receiver could be chainable up to 31 layers with distance 3.1KM

06. It can be expanded for broadcasting to over 100 displays via daisy chain

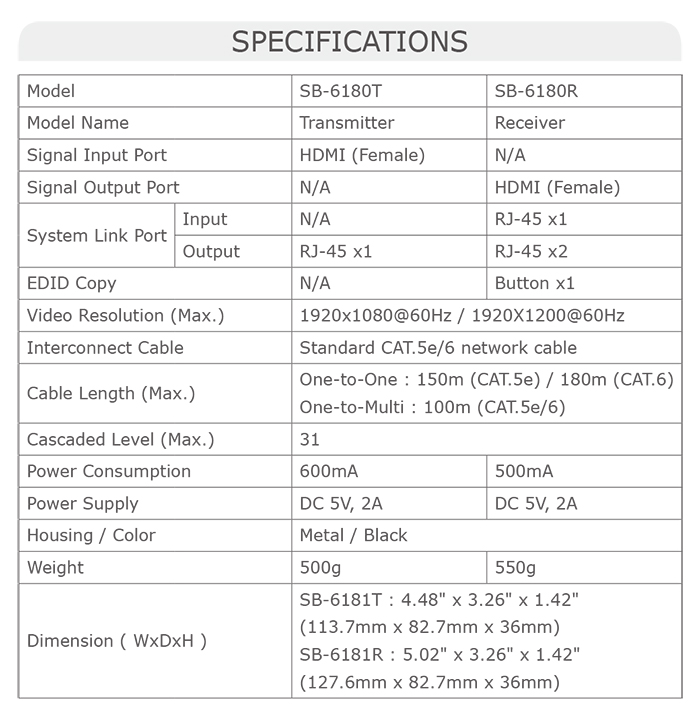

07. Supports resolution up to 1920x1080 (HDMI) / 1920X1200 (DVI)

08. Supports transmission distance up to

09. 150m (CAT.5e) / 180m (CAT.6) *One-to-One*

10. 100m (CAT.5e/6) *One-to-Multi*

11. EDID Copy function makes the optimal high resolution for your displays

12. Support surge protection

13. Simple LED indication for easy status monitoring

14. HDMI 1.3 / HDCP compliant

15. Support Plug & Play; Software not required

16. Provide a magnetic pad to simplify installation
