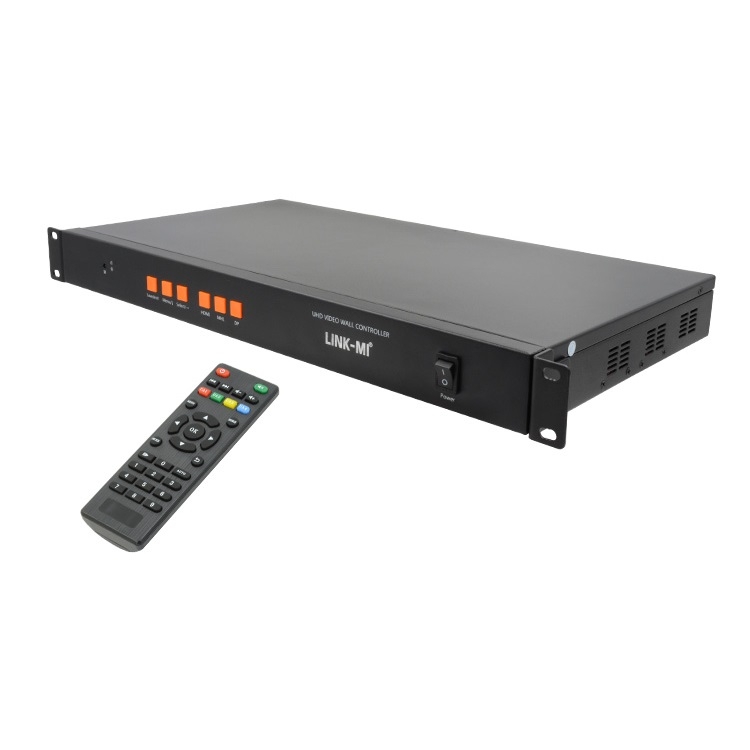

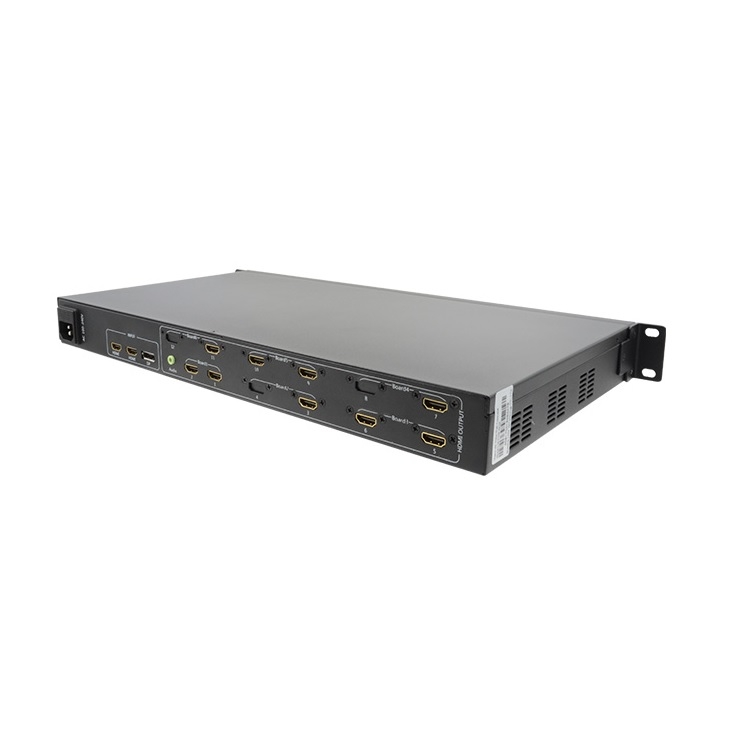

3x3 Video Wall Controller LM-TV09-4K2K
Mô tả ngắn
LINK-MI LM-TV09-4K2K 4K video wall controller - creates a 3x3 Video Wall Controller from any source to 9 displays.
Hotline: 0918 642 886
Features:
1.Support mobile signal/HDMI/DP input.
2.Select 1 of 3 source and distribute to 9 displays.
3.Create a 3x3 Video Wall Controller from any source to 9 displays.
4.Support 180° rotation.
5.Support resolution up to 3840×2160@60HZ
Specifications:
|
Name |
Spec |
|
HDMI input |
|
|
Interface |
HDMI A type（HDMI2.0 support HDCP2.2） |
|
Resolution |
Up to 3840×2160@60Hz |
|
Mobile signal input |
|
|
Interface |
HDMI A type（HDMI1.4 support HDCP2.0 and mobile signal） |
|
Resolution |
Up to 3840×2160@30Hz |
|
DP input |
|
|
Interface |
DP1.2 |
|
Resolution |
Up to 3840×2160@60Hz |
|
Audio output |
Fit for output video |
|
HDMI output |
1920×1080@60Hz |
|
Input Port |
HDMI×1,mobile signal×1,DP×1 |
|
Output Port |
HDMI×9 |
|
Controller |
Remote, button |
|
Power supply |
Input： AC 100-240V |
|
Operating Temperature |
0℃~60℃ |
|
Storage Temperature |
-20℃~70℃ |
|
Humidity |
＜75% |
|
Dimension |
441mm(L)x239mm(W)x44mm(H) |
