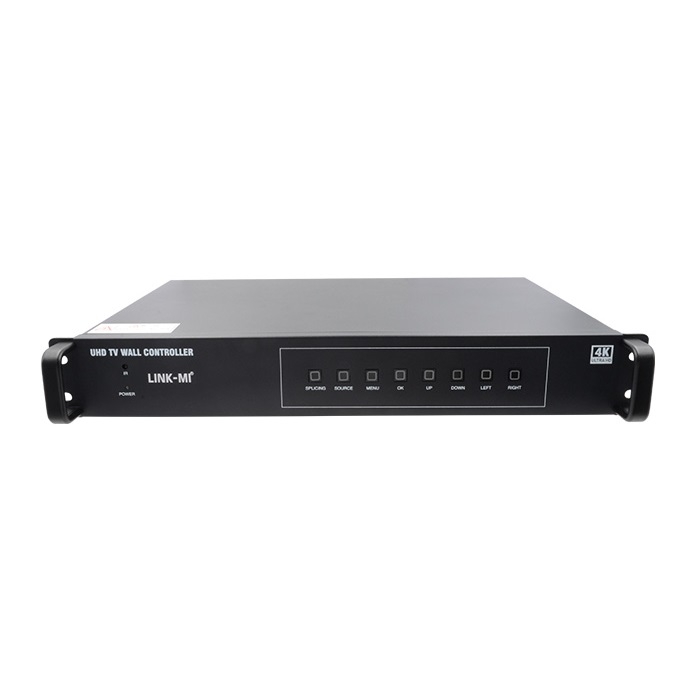

3x3 4K Video Wall Controller LM-TV09P

3x3 4K Video Wall Controller  LM-TV09P

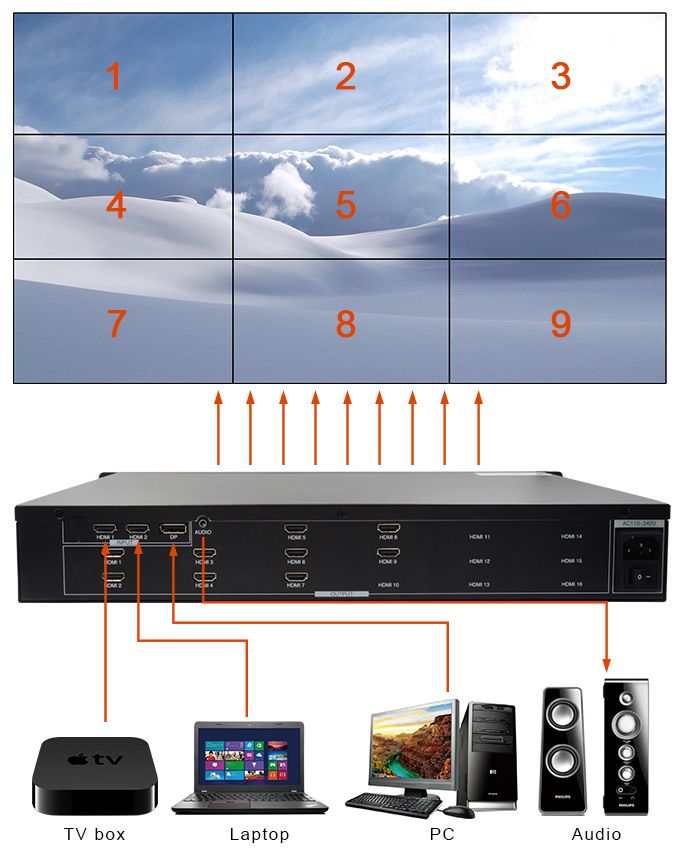

This 3x3 video wall controller supports 1x HDMI 2.0 in, 1x HDMI 1.4 in and 1x DP 1.2 in, max resolution support 4K@60Hz 4:4:4 HDCP 2.2. It allows any of 3 inputs routed to the 9 HDMI outputs. Users can choose different video modes via remote like 3x3 video wall mode, PIP (picture in picture) mode, etc to meet their needs.
This 4K video wall controller offers solutions for home, office, digital entertainment, center, conference room, school and other digital TV use environments.

Features:

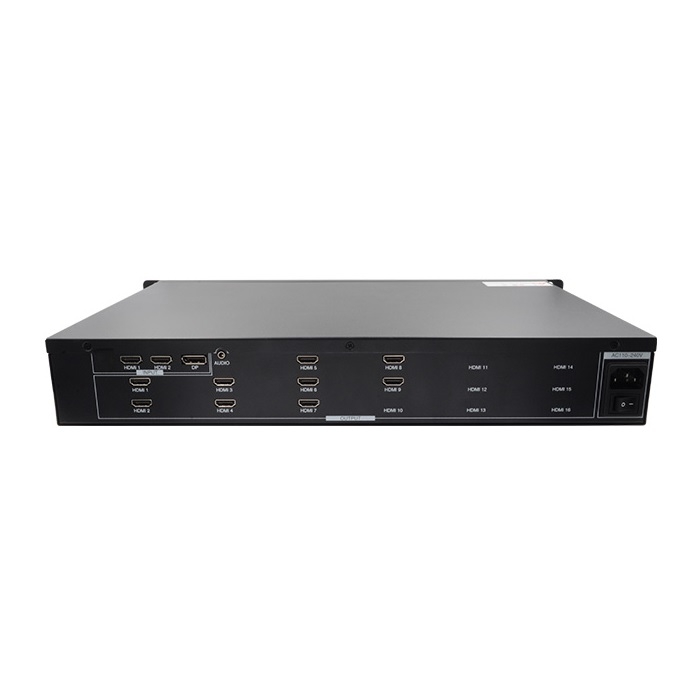

1. 3x3 video wall controller comes with 1x HDMI 2.0 in, 1x HDMI 1.4 in and 1x DP in; 9x HDMI out.
2. Max resolution up to 4K@60Hz 4:4:4, HDCP 2.2, DP 1.2 max 4K@60Hz.
3. Easy to set-up and control,support control via front buttons and remote.
4. Support image rotation 90°, 180°, 270° and Mirror left and right, flip up and down.
5. Support 3.5mm analog audio out.
6. Support automatically adjust border function and crop image function,Display without black edges.
7. Support roaming window and support input of the splicer can be resize and positioned at any position .
8. Supports intelligent temperature control protection technology, making the product's heat dissipation performance more stable, reliable and durable.
9. Silent smart fan, no noise at work.
