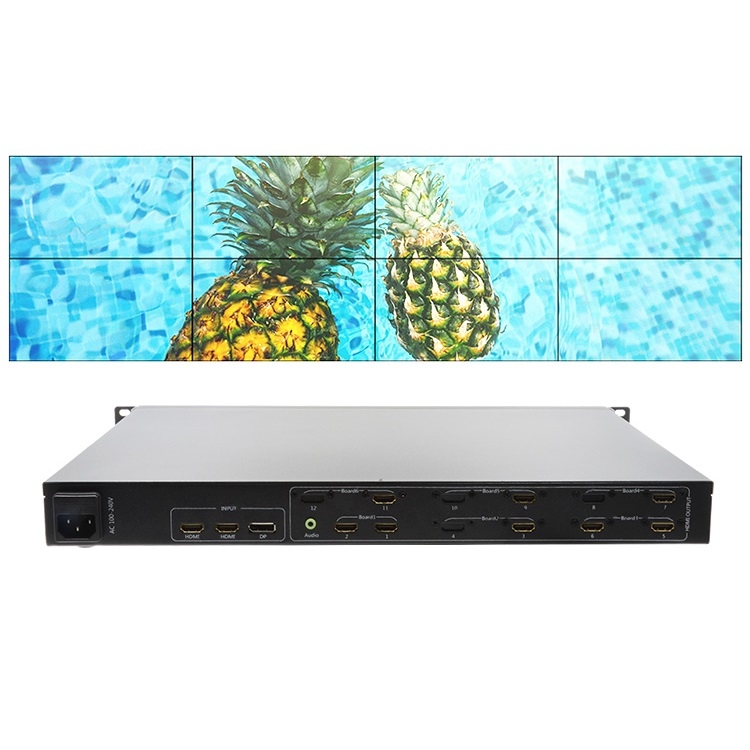

2x4 Video Wall Controller LM-TV08-4K2K
Mô tả ngắn
LINK-MI LM-TV08-4K2K 4K 2x4 video wall controller
Hotline: 0918 642 886
Features:
1.Support mobile signal/HDMI/DP input.
2.Select 1 of 3 source and distribute to 8 displays.
3.Create a 2x4 Video Wall Controller from any source to 9 displays.
4.Support 180° rotation.
5.Support resolution up to 3840×2160@60HZ
Spec:
-
HDMI input Interface: HDMI A type（HDMI2.0 support HDCP2.2）
-
Resolution: Up to 3840×2160@60Hz
-
Mobile signal input Interface: HDMI A type（HDMI1.4 support HDCP2.0 and mobile signal）
-
Resolution: Up to 3840×2160@30Hz
-
DP input Interface: DP1.2
-
Resolution: Up to 3840×2160@60Hz
-
Audio output: Fit for output video
-
HDMI output: 1920×1080@60Hz
-
Input Port: HDMI×1,mobile signal×1,DP×1
-
Output Port: HDMI×8
-
Controller Remote ,button
-
Power supply Input：AC 100-240V
-
Operating Temperature: 0℃~60℃
-
Storage Temperature :-20℃~70℃
-
Humidity: ＜75%
-
Dimension: 441mm(L)x239mm(W)x44mm(H)
