Bộ trình chiếu không dây VIA CONNECT3

Bộ trình chiếu không dây VIA CONNECT3

Mô tả ngắn

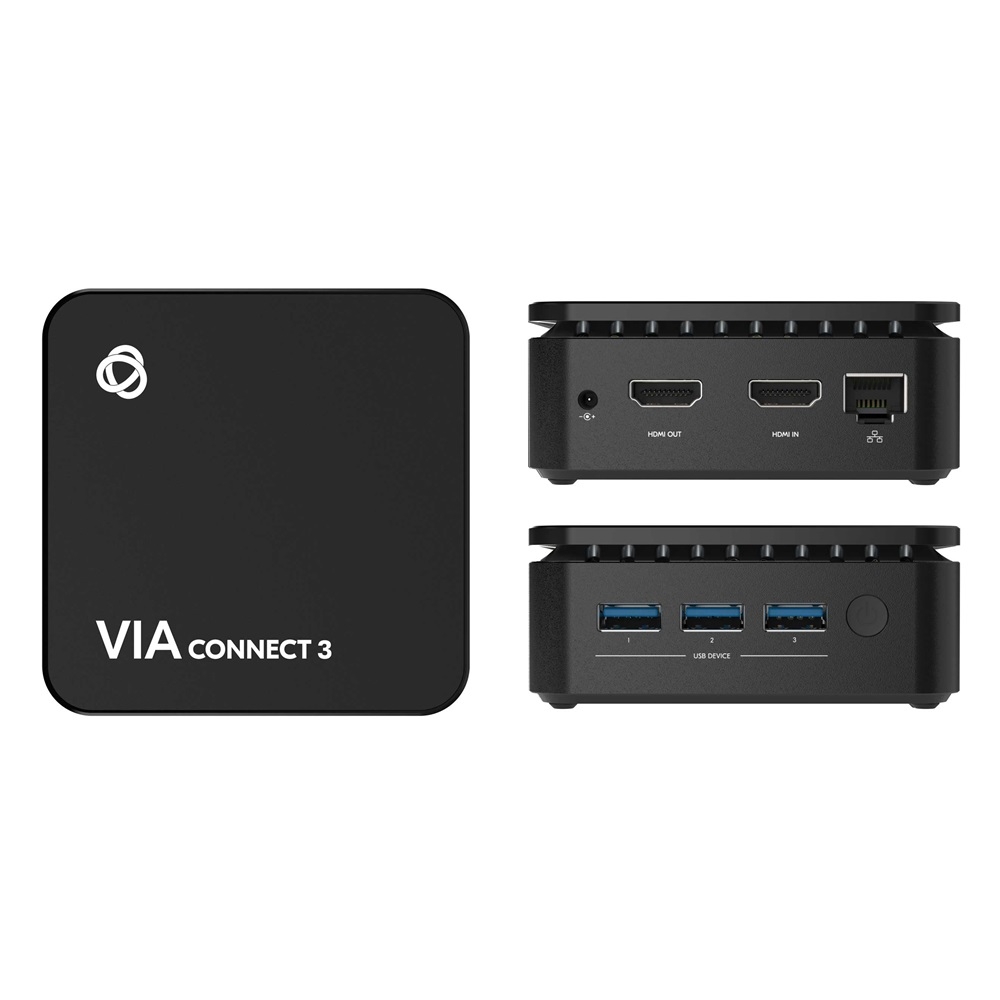

Kramer VIA CONNECT3 Compact & Secure 4K Wireless Presentation and Collaboration Solution
Wireless content sharing and collaboration applications
Optimized for video conferencing using room peripherals “VIA Room Devices"
Dual WiFi for simultaneous Guest Access Point and Miracast connections
HDMI input enabling simultaneous wired and wireless presentation
4K HDMI output
Support for launching 3rd party web applications
Wireless sharing from Miracast™ and AirPlay™
Powerful security features with advanced encryption
Centralized cloud management with VSM Cloud

liên hệ mua hàng
Hotline: 0918 642 886

Kramer VIA CONNECT3 is super−compact (9x9cm) and flexible to install, with both built−in Wi−Fi and LAN connectivity and includes industry−leading 1024−bit encryption for secure use on the internal network.
VIA CONNECT3 gives iOS, Android, Chromebook, PC, and Mac users instant wireless connectivity with 4K advanced presentation capabilities. The product features content streaming with crystal−clear mirrored images and stunning video playback and includes iOS mirroring via AirPlay™, Windows & Android mirroring via Miracast™, as well as Chromebook mirroring.



- 3rd party Security Certification

- Built–In isolated Wi–Fi and LAN.

- Quick and Reliable Wireless Connectivity — A simple and intuitive user interface enables iOS, Android, Chromebook, PC, and Mac device users to instantly connect to a main display without a dongle. 2.4GHz/5GHz Wi–Fi and MIMO antennas establish and maintain a fast and reliable connection.

- Clientless Connectivity — Airplay, Miracast, join through browser.

- High Quality Video Streaming — Supports up to 4K resolution (using the VIA app Multimedia feature).

- Optimized for Video Conferencing — Room devices driver feature allows users to wirelessly connect to the professional grade camera and AV in their meeting spaces easily and instantly.

- Calendar widget on the wallpaper for instant connectivity within one click.

- 3rd Party Web Applications — Run directly from the device without needing to use the application.

- Powerful Security Feature — 802.1x User authentication, 1024–bit encryption, dynamic room code.

- Comprehensive Collaboration Functionality — Whiteboard, filesharing, View Main Display, chat, etc.

- Simultaneous Display — Four participants can simultaneously present content on the main display.

- Seamless Live Video Streaming — Stream live content from meeting rooms, classrooms and studios using RTMP/RTMPS to all the leading platforms, like YouTube™, Kaltura™, Panopto™ and more.

- Easy and Flexible Installation — With a super–compact 9x9cm form factor, it can be discreetly installed on the back of a display, projector or almost anywhere.

- Up to 4K@30 HDMI Wired Input — Enables hard–wiring, auto switching, for connecting a computer or any HDMI compatible device camera, multimedia player or computer that supports HDCP signals.

- Wireless USB — Supports Microphone, Speaker & Camera.

- Cloud–Based Management — Seamlessly compatible with VIA Site Management (VSM).



Ports

  • 1 Ethernet: On an RJ–45 connector

  • 3 USB 3.0: On a female USB type–A connector



Outputs

  • 1 HDMI: 2.0: On a female HDMI connector



Control

  • Management: VSM on Cloud



Video

  • Max Resolution: Up to 4K@30Hz for both Input & Output

  • Web Conferencing Cameras Tested with VIA Versa Feature: Logitech MeetUp, Logitech C270, Logitech BCC950, Logitech C525, Logitech Brio UHD PRO, Logitech C310, Logitech C922, Avaya HC020, Avaya HC050, Huddly GO, Minrray MG100A, Microsoft Livecam HD–3000, TedGem 1080p, Vaddio HuddleSHOT, Yealink UVC80, Bose Videobar VB1, BIAMP Devio SCR–20, BIAMP Devio SCR–25,LUMENS B10U, LUMENS B11U, LUMENS B2U, MAXHUB — UCS10, Aver CAM340+, Aver VB342+, Yealink UVC30ROOM, Aver CAM340+, Avonic AV–CM44–VCUC–B PTZ, Konftel C50 PTZ

  • Video Conferencing Apps Tested with VIA Versa Feature: Teams and Zoom

  • All brand names, product names, and trademarks are the property of their respective owners



General

  • Processor: Intel® N100

  • Main Memory: 16GB DDR5

  • Storage: 128GB SSD

  • Networking: 1 x Gigabit LAN Wi–Fi 802.11 ac/b/g/n dual band & Bluetooth

  • Operating System: Linux



Power

  • Source: 12V DC

  • Consumption: 3.8A



Accessories

  • Included: Power adapter



Environmental Conditions

  • Operating Temperature: 0° to +40°C (32° to 104°F)

  • Storage Temperature: –40° to +70°C (–40° to 158°F)

  • Humidity: 10% to 90%, RHL non–condensing



Regulatory Compliance (Standards Compliance)

  • Safety: CE, FCC, UL, BIS



Enclosure

  • Type: Aluminium cooling, fan with sink, Kensington lock

  • Dimensions: 89.9mm x 89.9mm x 36mm (3.54" x 3.54" x 1.42")



Product Dimensions

  • 9.00cm x 9.00cm x 3.40cm (3.54" x 3.54" x 1.34" ) W, D, H



Product Weight

  • 0.3kg (0.6lbs) approx.
