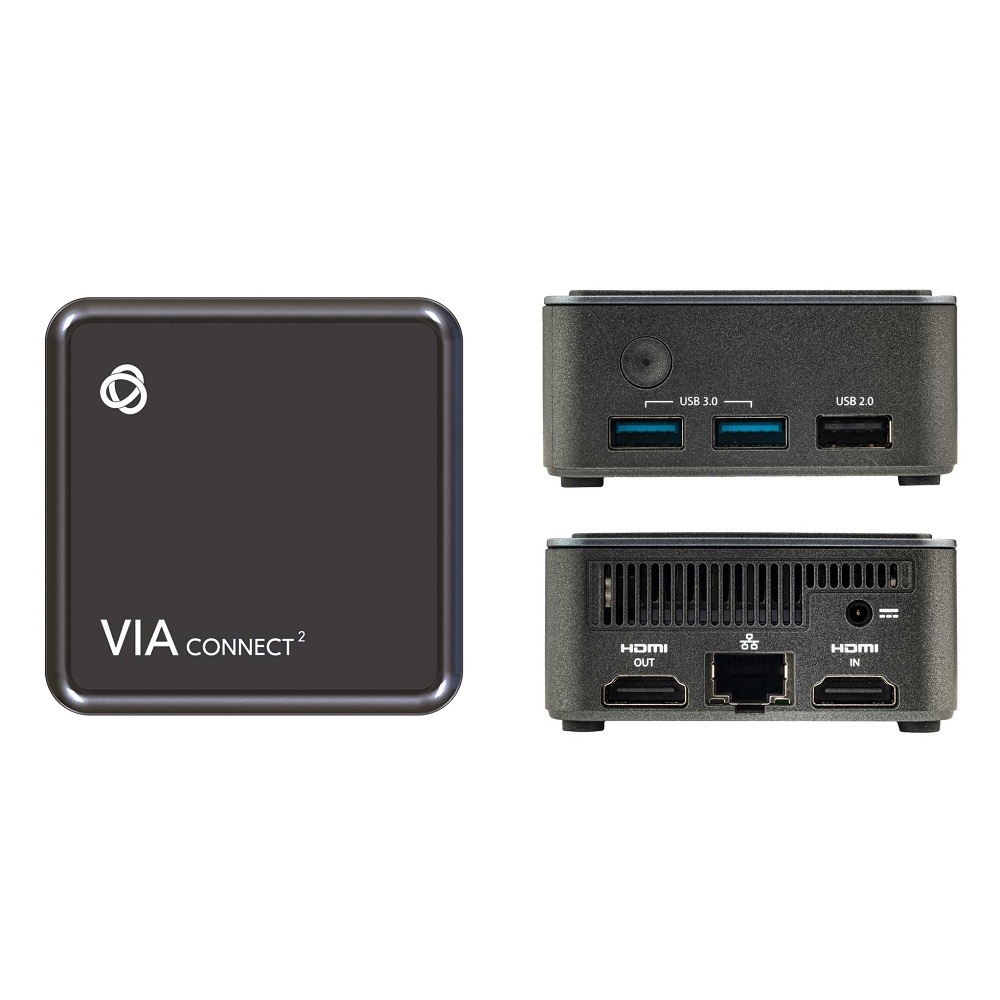

Bộ trình chiếu không dây VIA Connect²

Bộ trình chiếu không dây VIA Connect²

Mô tả ngắn

HDMI video streaming output for large displays (up to 4K60)
HDMI enabled hard-wired input (up to 4K60).
Desktop and application window sharing, streaming and collaboration.
App–free sharing from any platform
Powerful security features
Optimized for built-in video conferencing.
Centralized cloud management and control.

liên hệ mua hàng
Hotline: 0918 642 886

VIA Connect² is a smart, secure, wireless and wired presentation and collaboration platform that makes it simple to get actual work done during meetings and classes. With any laptop or mobile device, users can view, edit, and comment on documents in real time sessions. Meeting participants can display or stream full, uninterrupted video up to 4K@60Hz from their device, and even play YouTube® videos in full frame rate. Up to four participants can share their screens simultaneously on the main display either using the VIA app mirroring feature, iOS mirroring via AirPlay™, Windows & Android mirroring via Miracast™, or ChromeBook mirroring.


VIA Connect² supports 3rd party conferencing and apps, such as Microsoft Teams®, and Zoom®. The platform can handle most small to medium size meeting spaces and is ideal for classrooms and huddle spaces. VIA Connect² is super−compact (74x74mm) and flexible to install with both built−in Wi−Fi and LAN connectivity and includes industry−leading 1024−bit encryption for secure use on the internal network.



- Quick and Reliable Wireless Connectivity — A simple and intuitive user interface enables iOS™, Android™, Chromebook™, PC, and Mac™ device users to instantly connect to a main display. 2.4GHz/5GHz Wi–Fi and MIMO antennas establish and maintain a fast and reliable connection.

- Clientless Connectivity — Airplay, Miracast, Join Through Browser.

- Up to 4K@60 HDMI Wired Input — Enables hard–wiring, auto switching, for connecting a computer or any HDMI compatible device camera, multimedia player or computer that supports HDCP signals.

- Powerful Security Feature — 802.1x User authentication, 1024–bit encryption, dynamic room code.

- Built–In Wi–Fi and LAN.

- Comprehensive Collaboration Functionality — Whiteboard, filesharing, View Main Display, chat, etc.

- High–Quality Video Streaming — Supports up to 4K@60Hz resolution using the VIA app Multimedia feature.

- Simultaneous Display — Four participants can simultaneously present content on the main display.

- Seamless Live Video Streaming — Stream live content from meeting rooms, classrooms and studios using RTMP/RTMPS to all the leading platforms, like YouTube™, Kaltura™, Panopto™ and more.

- Optimized for Video Conferencing — VIA Versa feature allows users to wirelessly connect to the professional grade camera and AV in their meeting spaces easily and instantly.

- Wireless USB — Supports Microphone, Speaker & Camera.

- Built–in Third Party VC integration for Zoom™ & Teams™.

- Cloud–Based Management — Seamlessly compatible with VIA Site Management (VSM).

- Easy and Flexible Installation — With a super–compact form factor, it can be discreetly installed on the back of a display, projector or almost anywhere.



PORTS

  • 1 Ethernet: On an RJ–45 connector

  • 2 USB 3.0: On a female USB type–A connector

  • 1 USB 2.0: On a female USB type–A connector

  • 2 Pin connector: Video Switching control



VIDEO

  • Max Resolution: Up to 4K@60 for both Input & Output

  • Web Conferencing Cameras Tested with VIA Versa Feature: Logitech MeetUp, Logitech C270, Logitech BCC950, Logitech C525, Logitech Brio UHD PRO, Logitech C310, Logitech C922, Logitech Rally, Avaya HC020, Avaya HC050, Huddly GO, Yamaha CS700, Minrray MG100A, Microsoft Livecam HD–3000, TedGem 1080p, Vaddio HuddleSHOT, Yealink UVC80, Bose Videobar VB1, BIAMP Devio SCR–20, BIAMP Devio SCR–25,LUMENS B10U, LUMENS B11U, LUMENS B2U, MAXHUB — UCS10, Aver CAM340+, Aver VB342+

  • Video Conferencing Apps Tested with VIA Versa Feature: Skype for Business, Skype, Teams, Zoom, Google Meet, BlueJeans, LifeSize Cloud

  • All brand names, product names, and trademarks are the property of their respective owners



GENERAL

  • Processor: Intel® Gemini Lake QC SOC

  • Memory: 4GB LPDDR4 (2400)

  • Storage: 32GB eMMC

  • Networking: 1 x Gigabit LAN Wi–Fi 802.11 ac/b/g/n dual band

  • Operating System: Linux



POWER

  • Input Source: 12V DC

  • Consumption: 1.3A



ENVIRONMENTAL CONDITIONS

  • Operating Temperature: 0° to +40°C (32° to 104°F)

  • Storage Temperature: –40° to +70°C (–40° to 158°F)

  • Humidity: 10% to 90%, RHL non–condensing



REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)

  • Safety: CE



ENCLOSURE

  • Type: Aluminum

  • Cooling: Fan with sink



ACCESSORIES

  • Included: Power adapter, Video Switching control cable, VESA mount



PRODUCT DIMENSIONS

  • 7.30cm x 7.30cm x 3.34cm (2.87" x 2.87" x 1.31" ) W, D, H



PRODUCT WEIGHT

  • 0.2kg (0.4lbs) approx.

Download
