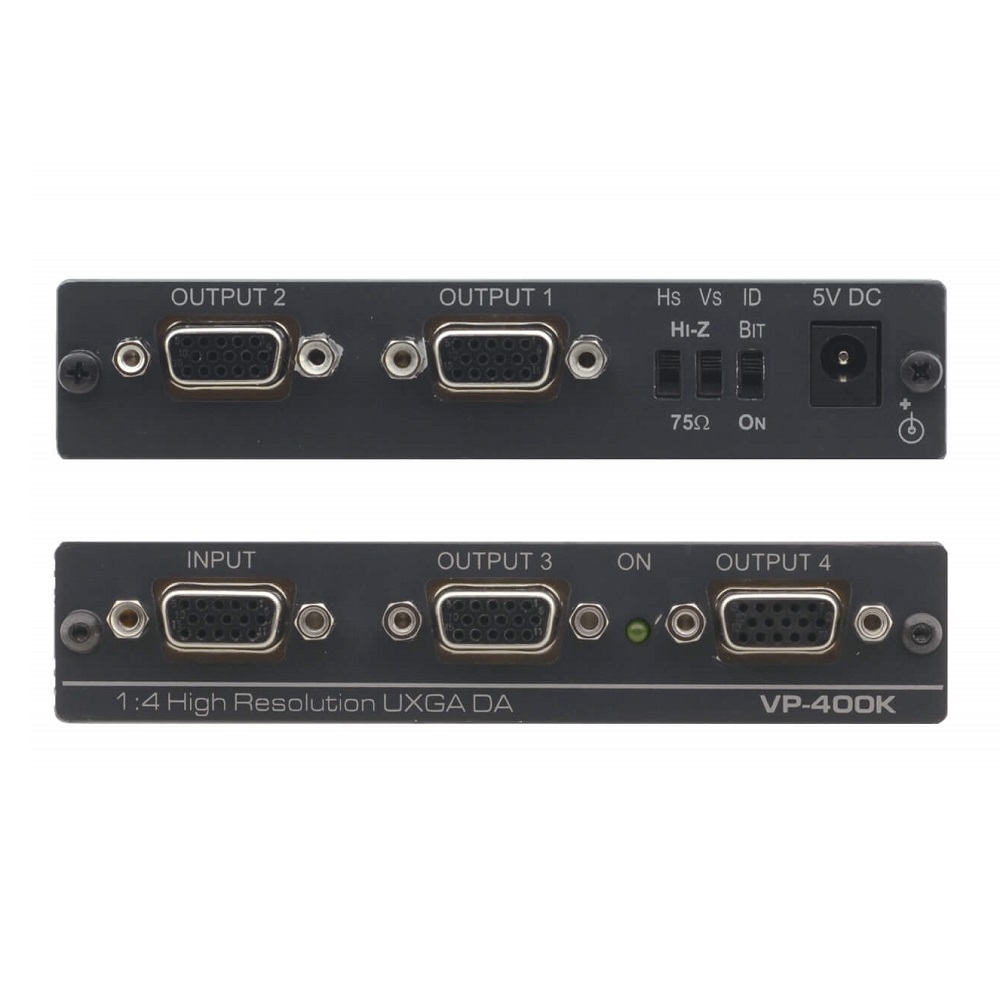

Bộ chia và khuếch đại VGA VP-400K
Mô tả ngắn
VP-400K 1:4 Computer Graphics Video Distribution Amplifier
Bandwidth — 400MHz
ID Bit Control
DC Coupling
Hotline: 0918 642 886
The VP−400K is a distribution amplifier for computer graphics signals with resolutions up to and exceeding UXGA. The unit takes one input, provides correct buffering and isolation, and distributes the signal to four identical outputs.
- High Bandwidth — 400MHz (–3dB).
- HDTV Compatible.
- ID Bit Control.
- Kr–isp® Advanced Sync Processing — Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. Kr–isp® advanced sync processing can be enabled or disabled.
- EDID PassThru — Passes EDID signal from display to source via output 1.
- Selectable Sync Input Impedance — 75Ω (video), 510Ω (Graphics/TTL).
- DC Coupling.
- 3ft 15–pin HD Cable Included.
INPUT
-
1 UXGA on an 15–pin HD connector
OUTPUTS
-
4 UXGA on 15–pin HD connectors
MAX. OUTPUT LEVEL
-
2.2Vpp
BANDWIDTH (-3DB)
-
400MHz
DIFF. GAIN
-
0.03%
DIFF. PHASE
-
0.03Deg
K-FACTOR
-
<0.05%
S/N RATIO
-
72dB @5MHz
CONTROLS
-
ID BIT switch
-
internal analog/TTL switches for setting the sync
COUPLING
-
DC
POWER CONSUMPTION
-
5V DC, 130mA
INCLUDED ACCESSORIES
-
Power supply (5V/2.6A), mounting bracket
PRODUCT DIMENSIONS
-
12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT
-
0.2kg (0.4lbs) approx.
