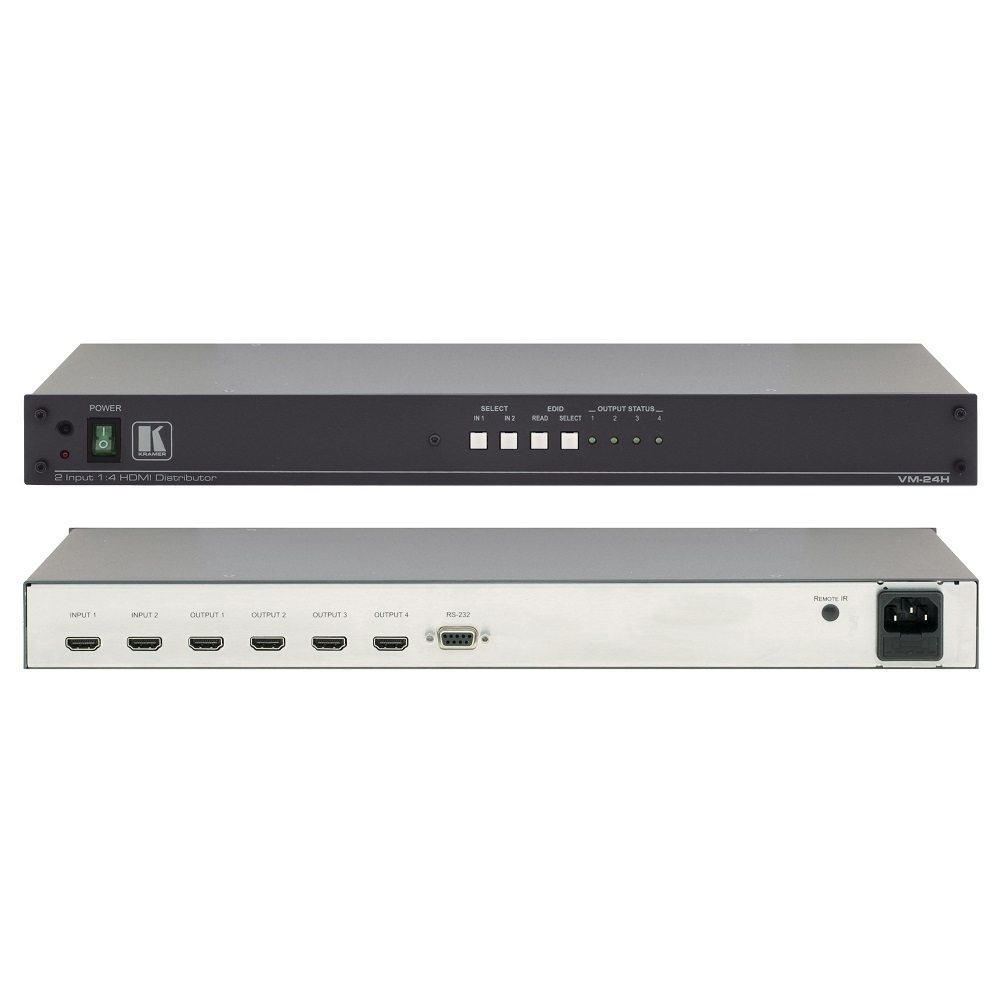

Bộ chia và khuếch đại HDMI VM-24H
Mô tả ngắn
Kramer 2x1:4 HDMI Switchable DA VM-24H
Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel)
Switcher & DA
Enhanced EDID
Control — RS–232 & IR
Hotline: 0918 642 886
The VM-24H is a distribution amplifier for HDMI signals. The unit reclocks and equalizes one of two selectable input signals and distributes it to four identical outputs.
- Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliant.
- HDMI Support — Deep Color, x.v.Color™, Lip Sync, CEC.
- 3D Pass–Through.
- EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Active Output LED Indicators.
- Control — Front panel, RS–232, IR switching.
- Worldwide Power Supply — 100–240V AC.
- Standard 19” Rack Mount Size — 1U. Rack “ears” included.
INPUTS
-
2 HDMI connectors
OUTPUTS
-
4 HDMI connectors
BANDWIDTH
-
6.75Gbps (2.25Gbps per graphic channel)
COMPLIANCE WITH HDMI STANDARD
-
Supports HDMI and HDCP
CONTROLS
-
EDID SELECT, EDID READ, IN 1, IN 2 buttons, RS–232, IR
INDICATOR LEDS
-
Output status LEDs
POWER CONSUMPTION
-
100–240V AC, 50/60Hz, 16VA
INCLUDED ACCESSORIES
-
Power cord, null–modem adapter, Windows®–based control software
OPTIONS
-
External remote IR receiver cable
PRODUCT DIMENSIONS
-
19" x 7.20 x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H
PRODUCT WEIGHT
-
1.6kg (3.5lbs) approx.
