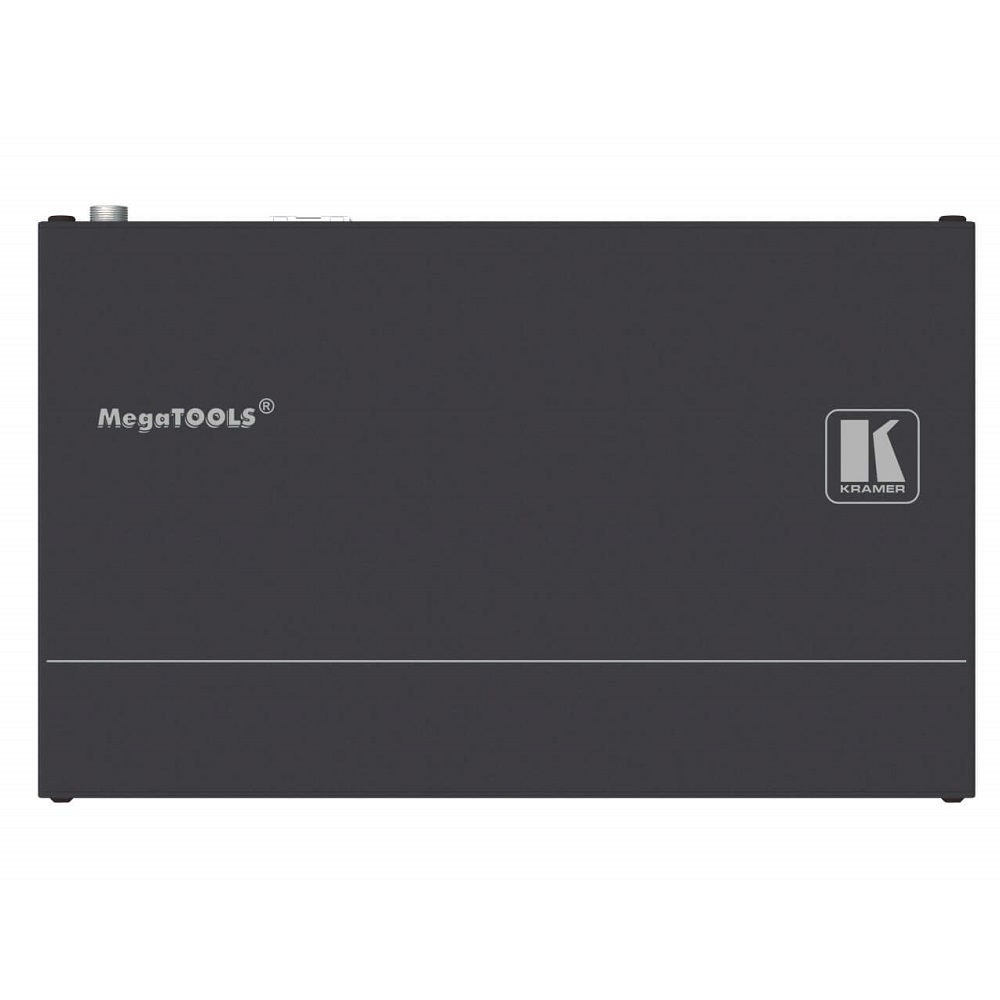

Bộ điều khiển FC-28
Mô tả ngắn
Kramer FC-28 10–port Serial, IR, GPI/O and Relay, PoE Control Gateway
-
2 Bidirectional RS–232 ports
-
4 IR emitter ports
-
2 GPI/O ports
-
2 Relay ports
-
1 IR sensor for learning
-
1 Ethernet port
-
Built–in control and support Web pages
-
PoE powering
Hotline: 0918 642 886
The FC−28 is a PoE−powered control gateway, capable of plug and play deployment over customer Ethernet LAN for remote control of customer controlled devices via bidirectional RS−232, IR, GPI/O and relay control connections. Multiple control clients can be IP−connected to the FC−28 control gateway for concurrent control of two RS−232,four IR controllable devices, such as AV scalers, video displays, audio amplifiers, DVD players, sensors, screens, shades, door locks, and lighting.
- 2 RS–232 Bi–directional Control Ports — Control a device via bi–directional serial control protocols.
- 4 IR Emitter Control Ports — Control a device via IR control protocols.
- 2 GPI/O Control Ports — Controls a device via general purpose I/O ports, program–configured as digital input, digital output or analog input interface for controlling sensors, door–locks, audio volume and light dim level, or lighting control devices.
- 2 Relay Control Ports — Control a device via relay contact closure, such as scrolling up and down screens, drapes, shades, and blinds.
- Simultaneous IP Control Communication — With up to 40 IP control clients.
- IR Sensor Port — Learns commands from IR remotes.
- Mini USB Port — For firmware upgrades and local technical services.
- 1 Ethernet Control Port — Remote protocol–based control port.
- PoE Support — Per IEEE 802.3af standard.
- Built–in Web Pages — Remote browser–based control and support.
- Easy Installation — Single Ethernet cable wires for communication and PoE powering, and plug & play IP auto–setup deployment for simple and cost–reducing installation.
OUTPUTS
-
4 IR & relays on 2–pin terminal blocks
PORTS
-
2 RS–232 serial on 3–pin terminal blocks, 2 GPI/O on 2–pin terminal blocks, 1 Ethernet on an RJ–45 connector, 1 mini USB connector for local services, 1 built–in IR sensor (for learning)
SUPPORTED SERIAL PORT BAUD RATES
-
1200, 2400, 4800, 9600, 19200, 38400, 57600, 15200bps
RS-232 COMMUNICATION
-
Transparent up to 115200bps
IR EMITTER CABLE RANGE
-
80m (260ft)
SUPPORTED IR INPUT FREQUENCIES
-
20kHz to 60kHz
SUPPORTED IR OUTPUT FREQUENCIES
-
20kHz to 1.2MHz
MAXIMUM DATA HANDLING OF DEVICE
-
Up to 150kbps summed on all ports
POWER CONSUMPTION
-
5V DC, 230mA
OPERATING TEMPERATURE
-
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE
-
–40° to +70°C (–40° to 158°F)
HUMIDITY
-
10% to 90%, RHL non–condensing
COOLING
-
Convection
ENCLOSURE TYPE
-
Aluminium
RACK MOUNT
-
With optional rack adapter
VIBRATION
-
ISTA 1A in carton (International Safe Transit Association)
SAFETY REGULATORY COMPLIANCE
-
CE
ENVIRONMENTAL REGULATORY COMPLIANCE
-
Complies with appropriate requirements of RoHs and WEEE
INCLUDED ACCESSORIES
-
Power adapter, IR Cable C–A35M/IRE–10
OPTIONS
-
19" rack adapter RK–T2B, IR cables: C–A35M/2IRE–10, C–A35M/IRR–3, C–AS35M/AS35F–50, C–A35M/IRE–10
-
bulk cable for serial control BC–1T–300M, serial cables: C–D9F/OPEN–3/6/10/15/25/35/50, BC–1T–300M bulk cable
PRODUCT DIMENSION
-
18.75cm x 11.50cm x 2.54cm (7.38" x 4.53" x 1.00" ) W, D, H
PRODUCT WEIGHT
-
0.5kg (1.0lbs) approx
SHIPPING DIMENSION
-
34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H
SHIPPING WEIGHT
-
1.0kg (2.1lbs) approx
